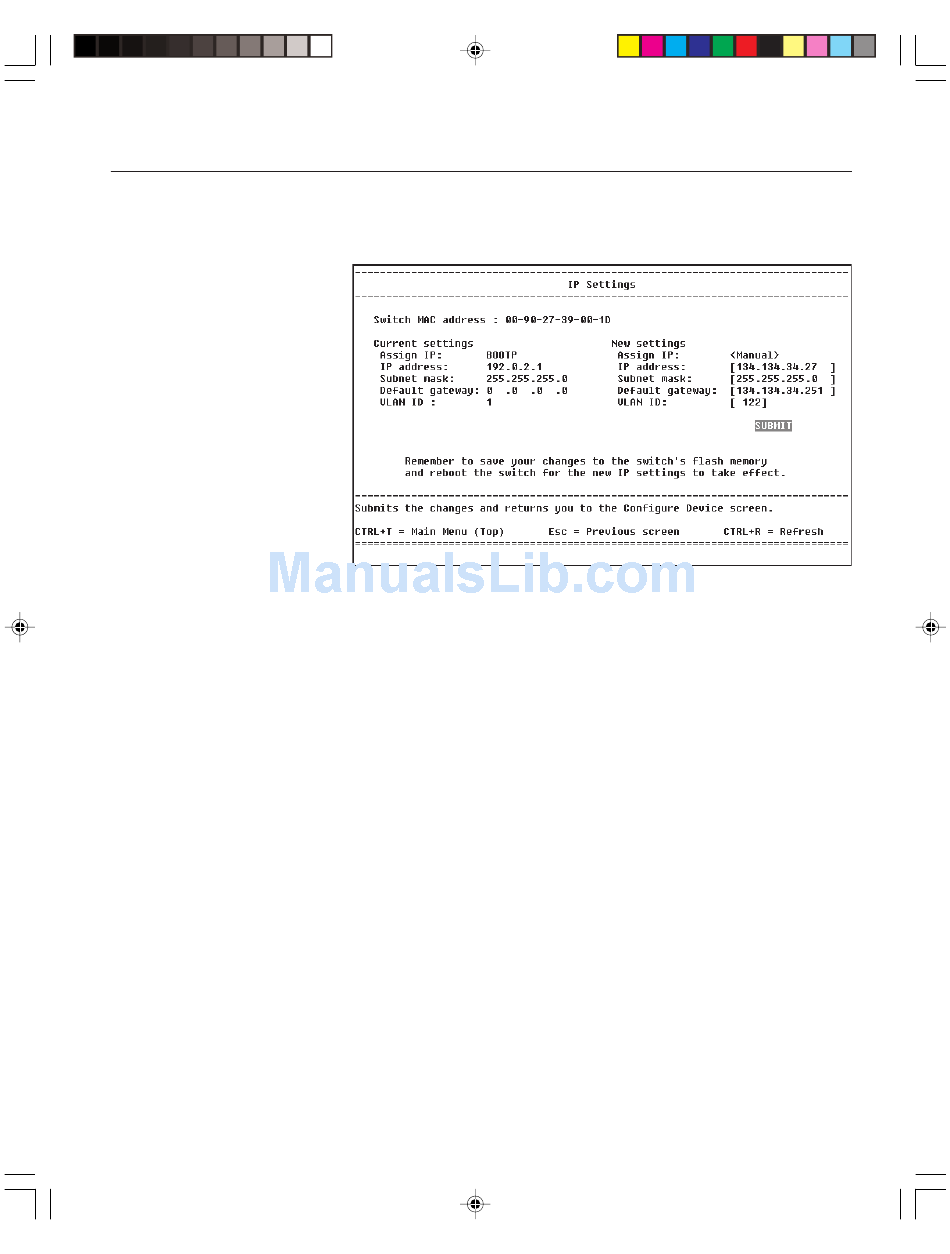

IP Settings
Description
Switch MAC address: Displays the unique hardware address assigned by
Intel.
Current settings: Displays the switch's current IP configuration.
New settings: Assigns a new IP configuration to the switch.
Assign IP: Indicates if the switch uses a BOOTP or DHCP server to
obtain an IP address dynamically, or if you assign an address manually.
IP address: Displays the IP configuration used by the switch. Use the
IP address shown here to access the switch through Telnet or a ping test.
Subnet mask: Matches the mask for other devices on the network.
Default gateway: Displays the IP address of the device that routes to
different networks—typically, a router or routing server. Set this option
to manage the switch remotely.
VLAN or VLAN ID (port-based or tag-based VLANs only): Specifies
a VLAN where the switch's SNMP management agent will reside. This
option appears only when port-based and IEEE 802.1Q VLANs are
active on the switch.
SUBMIT: Submits the changes and returns you to the Configure Device
screen. You must save the changes to the switch's flash memory (from the
Save Settings menu) and then reboot the switch for the new IP settings to
take effect.
