C H A P T E
LOCATION
Main Menu
Configure VLAN
(if switch is in Default Mode)
NOTE
The first time you configure the
switch, the system takes you
directly to the Configure VLAN
Operation Mode screen.
470T Ch5 - Sec 1-Nav & Config.p65
R 5 Using Local Management

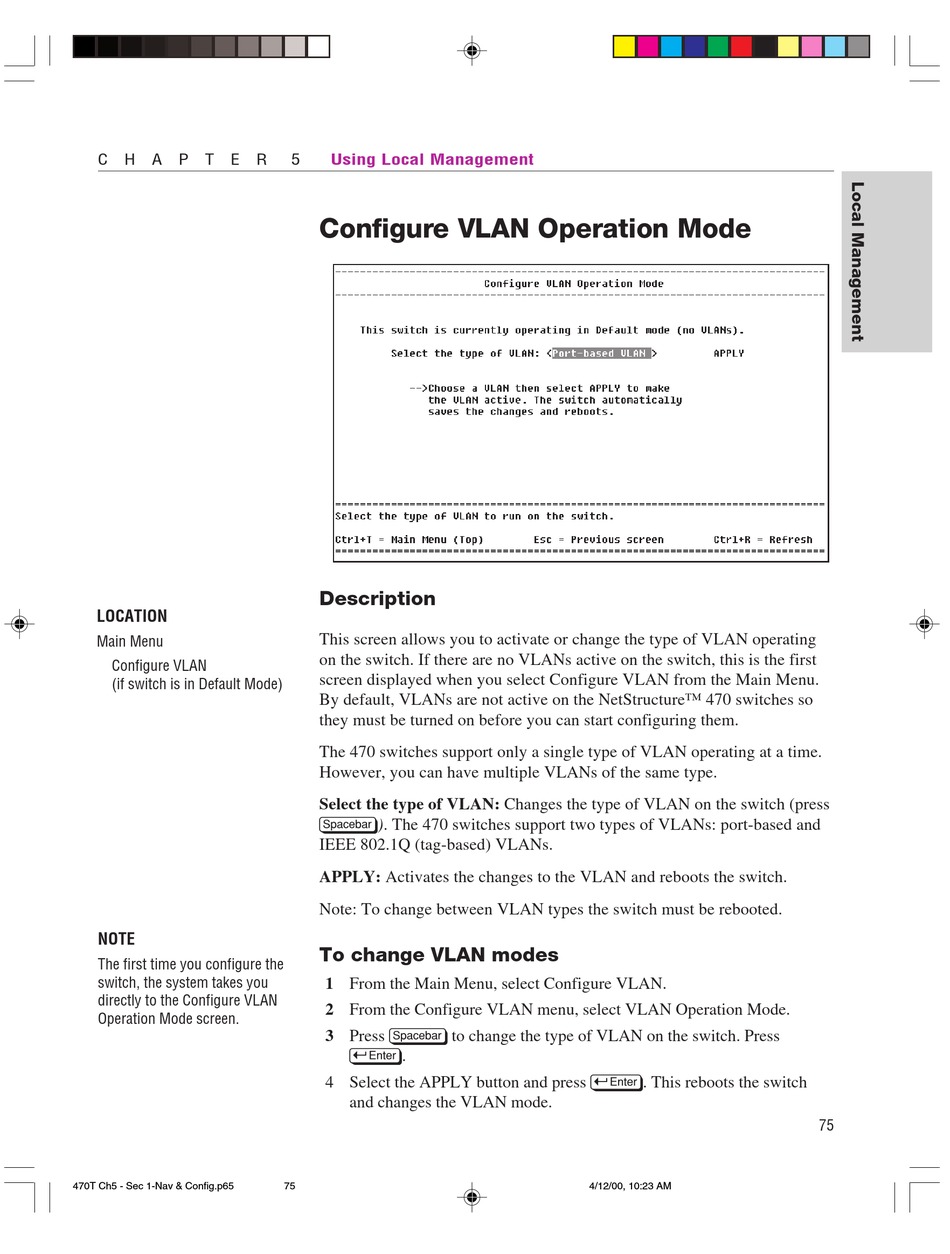

Configure VLAN Operation Mode

Description
This screen allows you to activate or change the type of VLAN operating
on the switch. If there are no VLANs active on the switch, this is the first
screen displayed when you select Configure VLAN from the Main Menu.
By default, VLANs are not active on the NetStructure™ 470 switches so
they must be turned on before you can start configuring them.
The 470 switches support only a single type of VLAN operating at a time.
However, you can have multiple VLANs of the same type.
Select the type of VLAN: Changes the type of VLAN on the switch (press
z). The 470 switches support two types of VLANs: port-based and
IEEE 802.1Q (tag-based) VLANs.
APPLY: Activates the changes to the VLAN and reboots the switch.
Note: To change between VLAN types the switch must be rebooted.
To change VLAN modes
1 From the Main Menu, select Configure VLAN.
2 From the Configure VLAN menu, select VLAN Operation Mode.
3 Press z to change the type of VLAN on the switch. Press
E.
4 Select the APPLY button and press E. This reboots the switch
and changes the VLAN mode.
