C H A P T E
LOCATION
Main Menu
Configure VLAN
Edit/Delete a Port-based VLAN
470T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R 5 Using Local Management

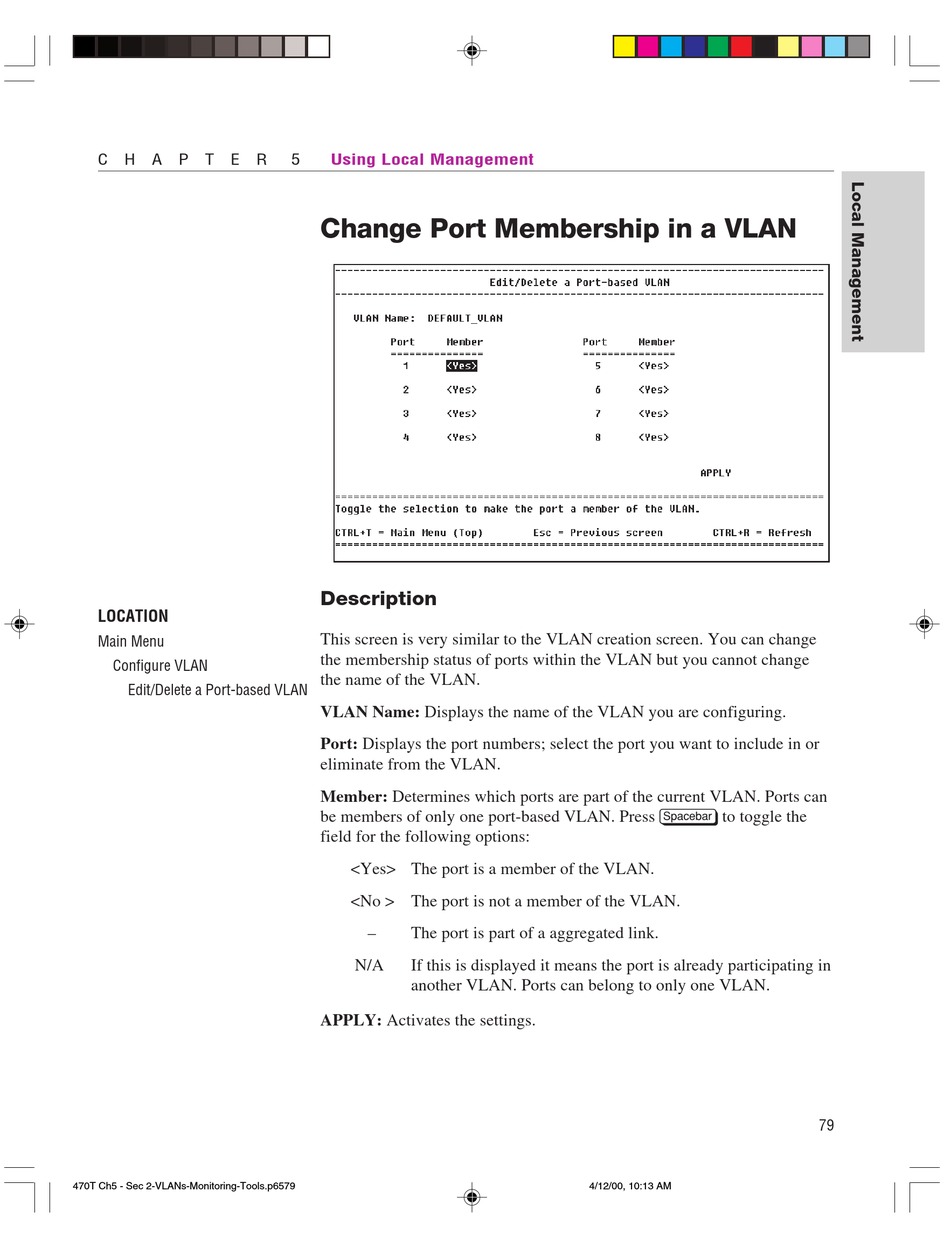

Change Port Membership in a VLAN

Description
This screen is very similar to the VLAN creation screen. You can change
the membership status of ports within the VLAN but you cannot change
the name of the VLAN.
VLAN Name: Displays the name of the VLAN you are configuring.
Port: Displays the port numbers; select the port you want to include in or
eliminate from the VLAN.
Member: Determines which ports are part of the current VLAN. Ports can
be members of only one port-based VLAN. Press z to toggle the
field for the following options:
<Yes> The port is a member of the VLAN.
<No > The port is not a member of the VLAN.
– The port is part of a aggregated link.
N/A If this is displayed it means the port is already participating in
another VLAN. Ports can belong to only one VLAN.
APPLY: Activates the settings.
