C H A P T E
LOCATION
Main Menu
Configure VLAN
Edit/Delete an 802.1Q VLAN
86
470T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R 5 Intel® NetStructure™ 470T and 470F Switches User Guide

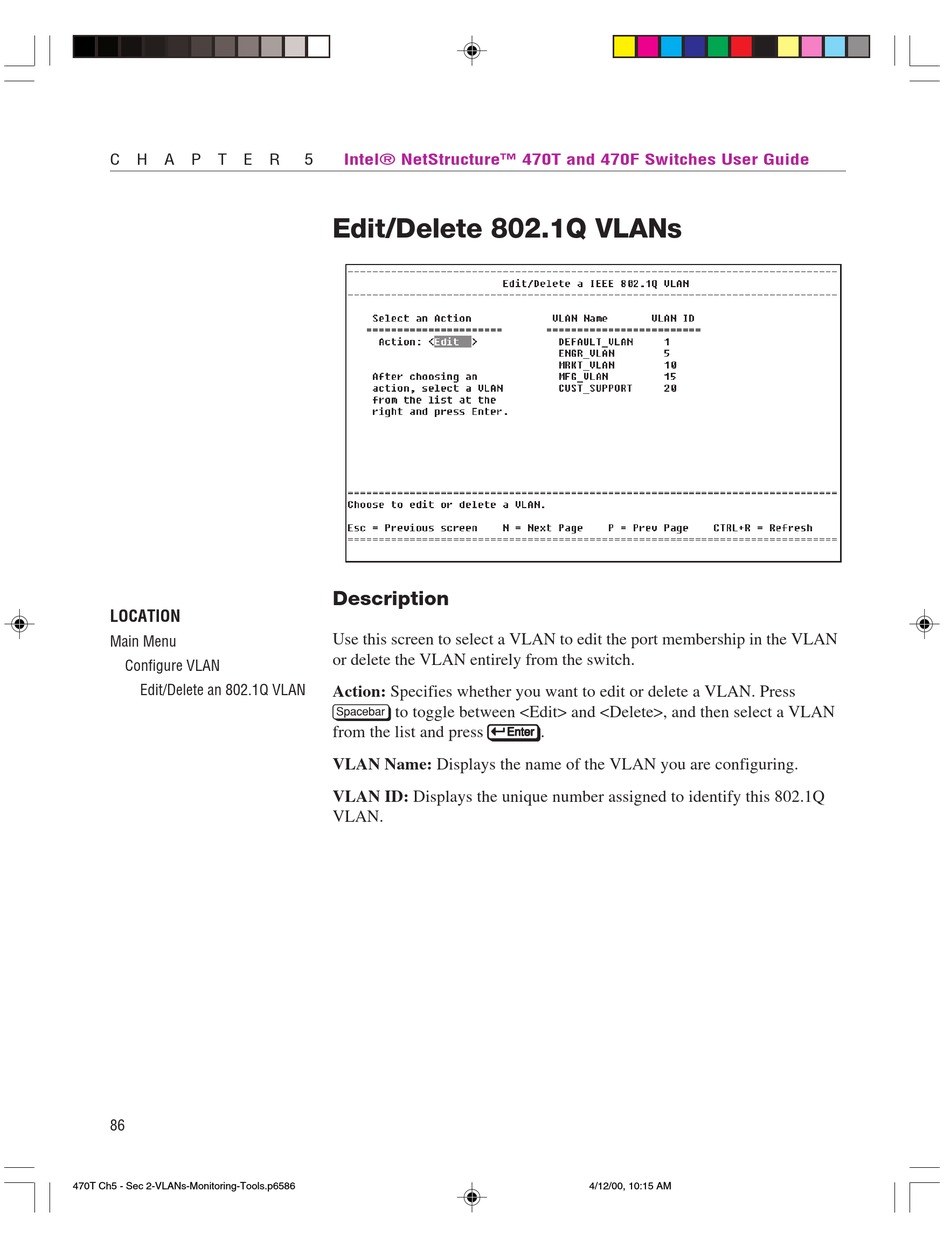

Edit/Delete 802.1Q VLANs

Description
Use this screen to select a VLAN to edit the port membership in the VLAN
or delete the VLAN entirely from the switch.
Action: Specifies whether you want to edit or delete a VLAN. Press
z to toggle between <Edit> and <Delete>, and then select a VLAN
from the list and press E
VLAN Name: Displays the name of the VLAN you are configuring.
VLAN ID: Displays the unique number assigned to identify this 802.1Q
VLAN.
