C H A P T E
LOCATION
Main Menu
Configure VLAN

Edit/Delete a Port-based VLAN

Edit VLAN
NOTE
The DEFAULT_VLAN cannot be
deleted from the switch.
78
470T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R 5 Intel® NetStructure™ 470T and 470F Switches User Guide
To create a port-based VLAN
1 From the Main Menu, select Configure VLAN.
Note: Make sure the switch's current VLAN operation mode is set to
port-based VLAN. If another type of VLAN is running, refer to
"Configure VLAN Operation Mode" in Chapter 5 to change the VLAN
operation mode.
2 Select Add a Port-based VLAN and press E.
3 Type a name for the new VLAN and press E.
4 Select ports to add to the VLAN and use z to toggle the
Member field to Yes.
5 Select the APPLY button and press E.

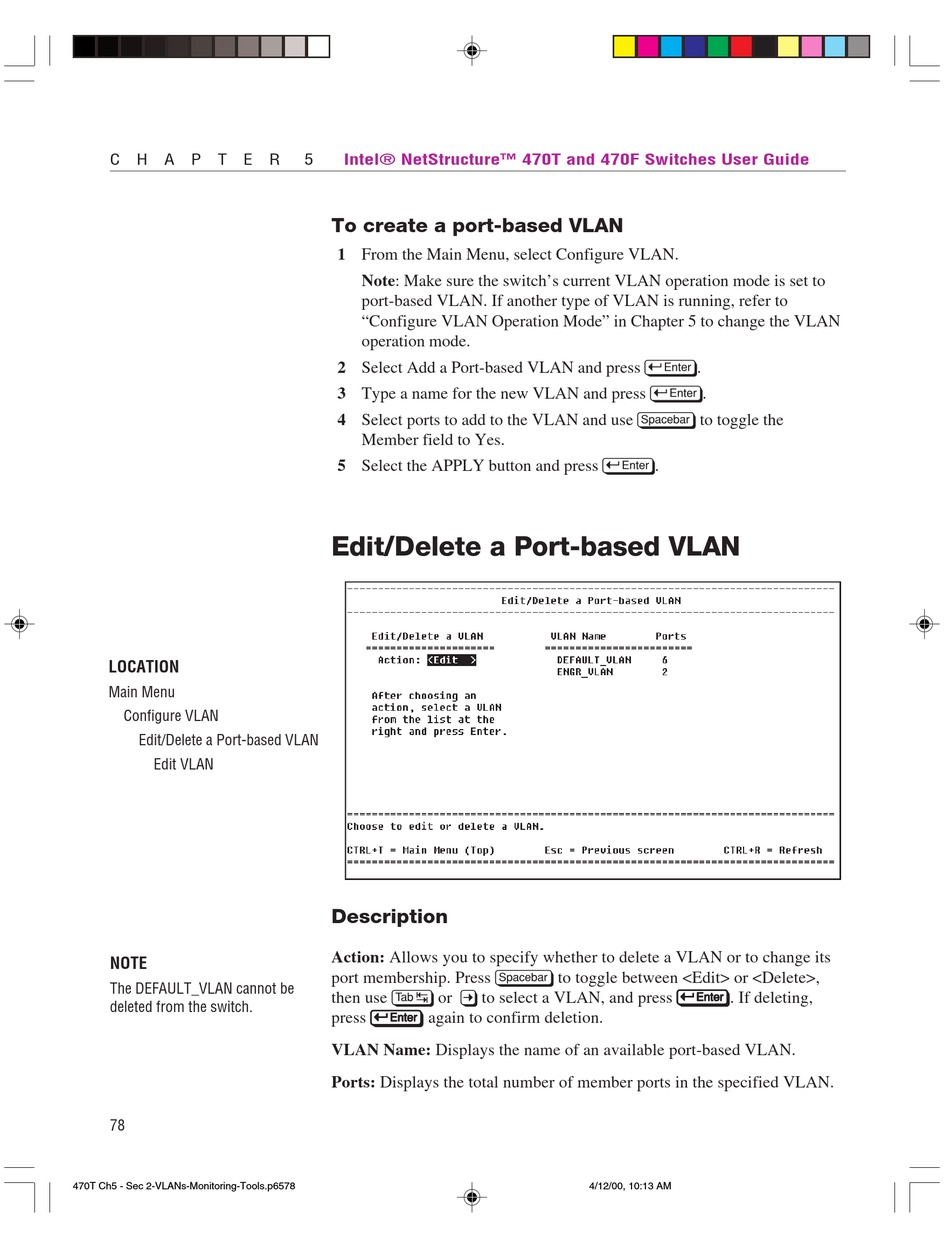

Edit/Delete a Port-based VLAN
Description
Action: Allows you to specify whether to delete a VLAN or to change its
port membership. Press z to toggle between <Edit> or <Delete>,
then use T or S to select a VLAN, and press E
E E again to confirm deletion. E
press E E
VLAN Name: Displays the name of an available port-based VLAN.
Ports: Displays the total number of member ports in the specified VLAN.
78
E . If deleting, E E E
