C H A P T E
NOTE
After the switch is first powered
on, the Status LED blinks green
once before the diagnostic mode
starts.
470T Ch1.p65
R 1 Setting Up the Intel® NetStructure

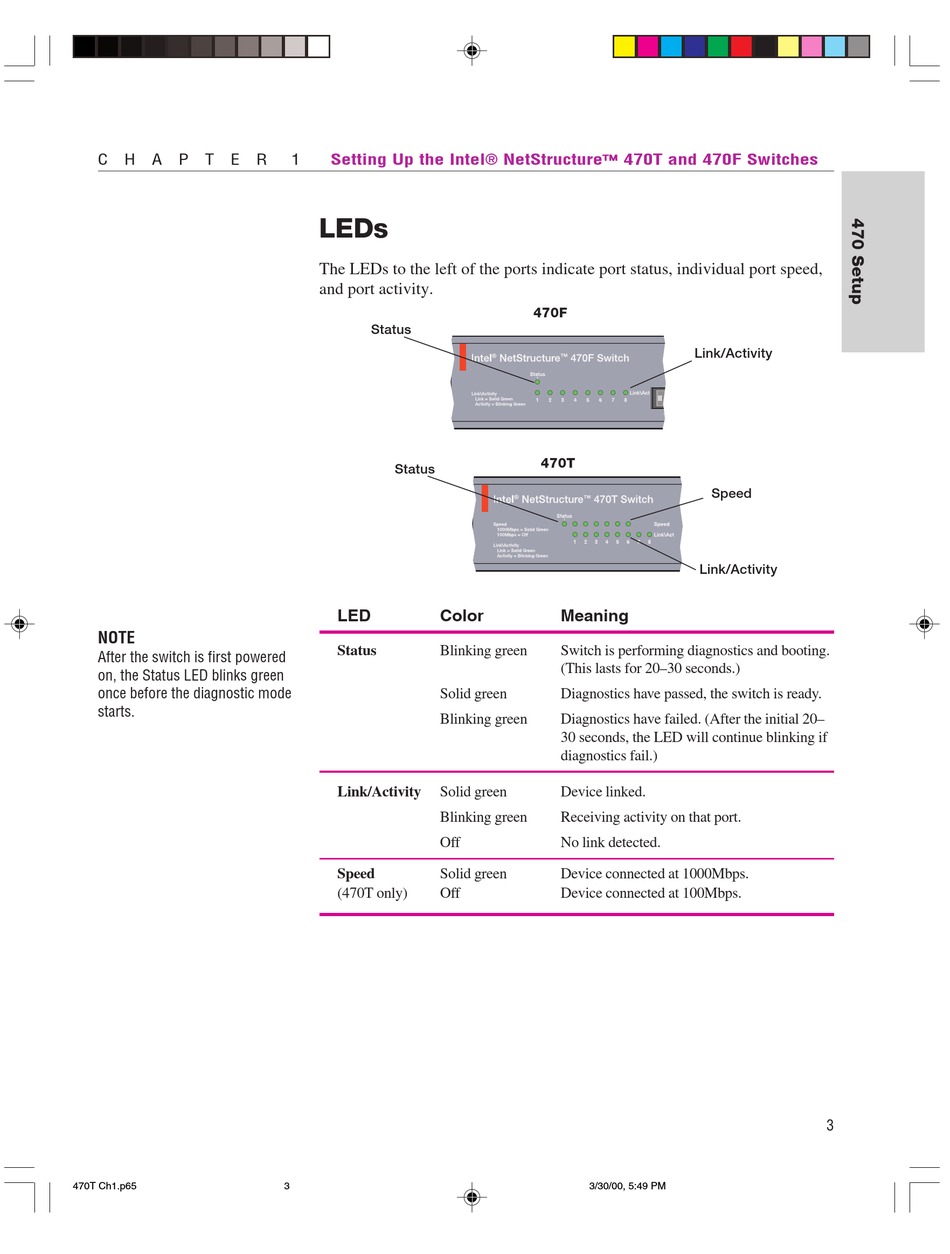

LEDs

The LEDs to the left of the ports indicate port status, individual port speed,
and port activity.
Status
Status
LED
Status
Link/Activity
Speed
(470T only)
3
    470T and 470F Switches
470F
470T
Color Meaning
Blinking green Switch is performing diagnostics and booting.
(This lasts for 20–30 seconds.)
Solid green Diagnostics have passed, the switch is ready.
Blinking green Diagnostics have failed. (After the initial 20–
30 seconds, the LED will continue blinking if
diagnostics fail.)
Solid green Device linked.
Blinking green Receiving activity on that port.
Off No link detected.
Solid green Device connected at 1000Mbps.
Off Device connected at 100Mbps.
3/30/00, 5:49 PM
Link/Activity
Speed
Link/Activity
3
