LOCATION
Main Menu
Configure Device
Configure GBIC Ports
52
470T Ch5 - Sec 1-Nav & Config.p65
R
5

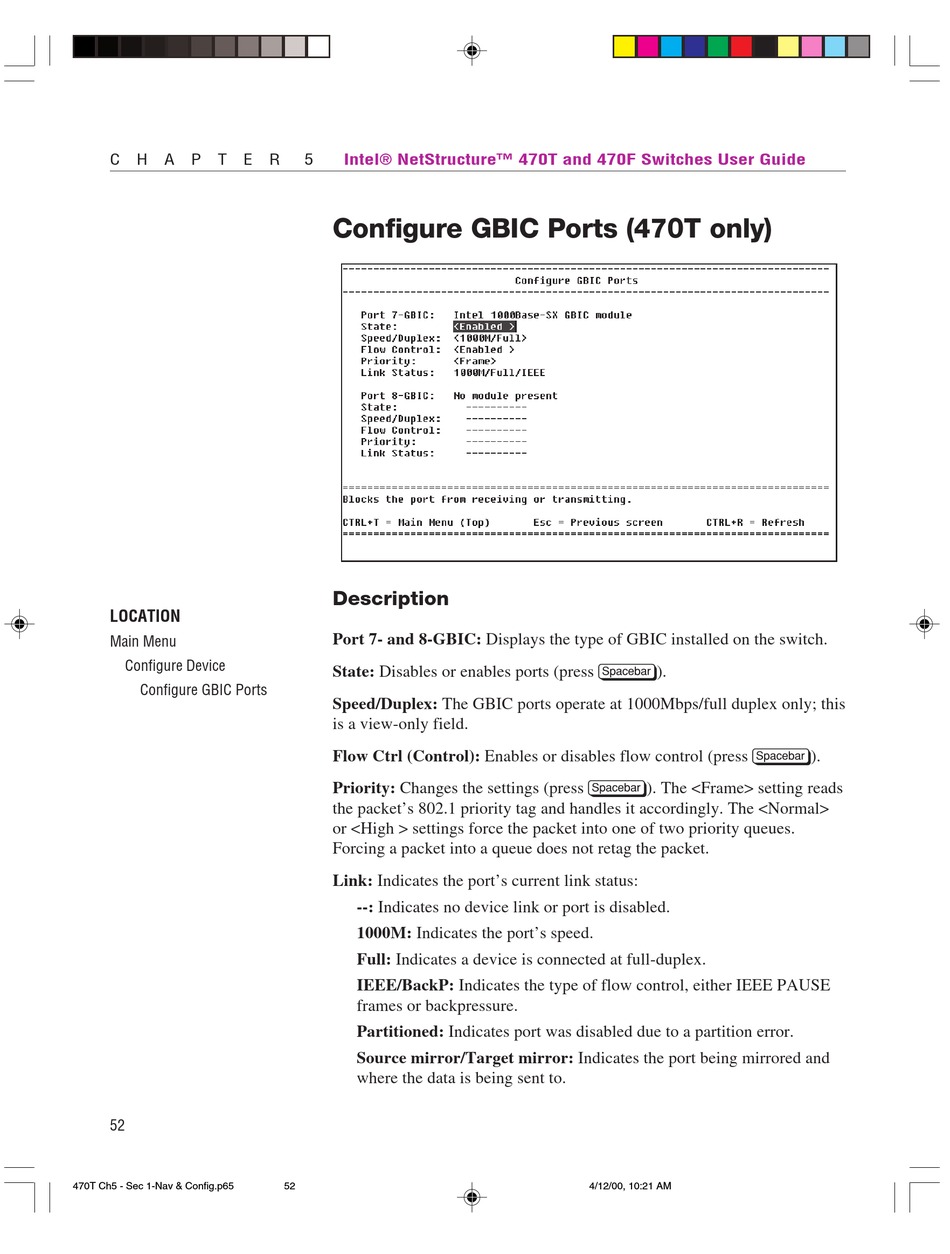

Intel® NetStructure™ 470T and 470F Switches User Guide
Configure GBIC Ports (470T only)
Description
Port 7- and 8-GBIC: Displays the type of GBIC installed on the switch.
State: Disables or enables ports (press z).
Speed/Duplex: The GBIC ports operate at 1000Mbps/full duplex only; this
is a view-only field.
Flow Ctrl (Control): Enables or disables flow control (press z).
Priority: Changes the settings (press z). The <Frame> setting reads
the packet's 802.1 priority tag and handles it accordingly. The <Normal>
or <High > settings force the packet into one of two priority queues.
Forcing a packet into a queue does not retag the packet.
Link: Indicates the port's current link status:
--: Indicates no device link or port is disabled.
1000M: Indicates the port's speed.
Full: Indicates a device is connected at full-duplex.
IEEE/BackP: Indicates the type of flow control, either IEEE PAUSE
frames or backpressure.
Partitioned: Indicates port was disabled due to a partition error.
Source mirror/Target mirror: Indicates the port being mirrored and
where the data is being sent to.
