Using Local Management; Overview; Accessing Management - Intel 470F - NetStructure Switch User Manual

5
NOTE
You use the same user name and
password to log into Web Device
Manager and Local Management.
470T Ch5 - Sec 1-Nav & Config.p65

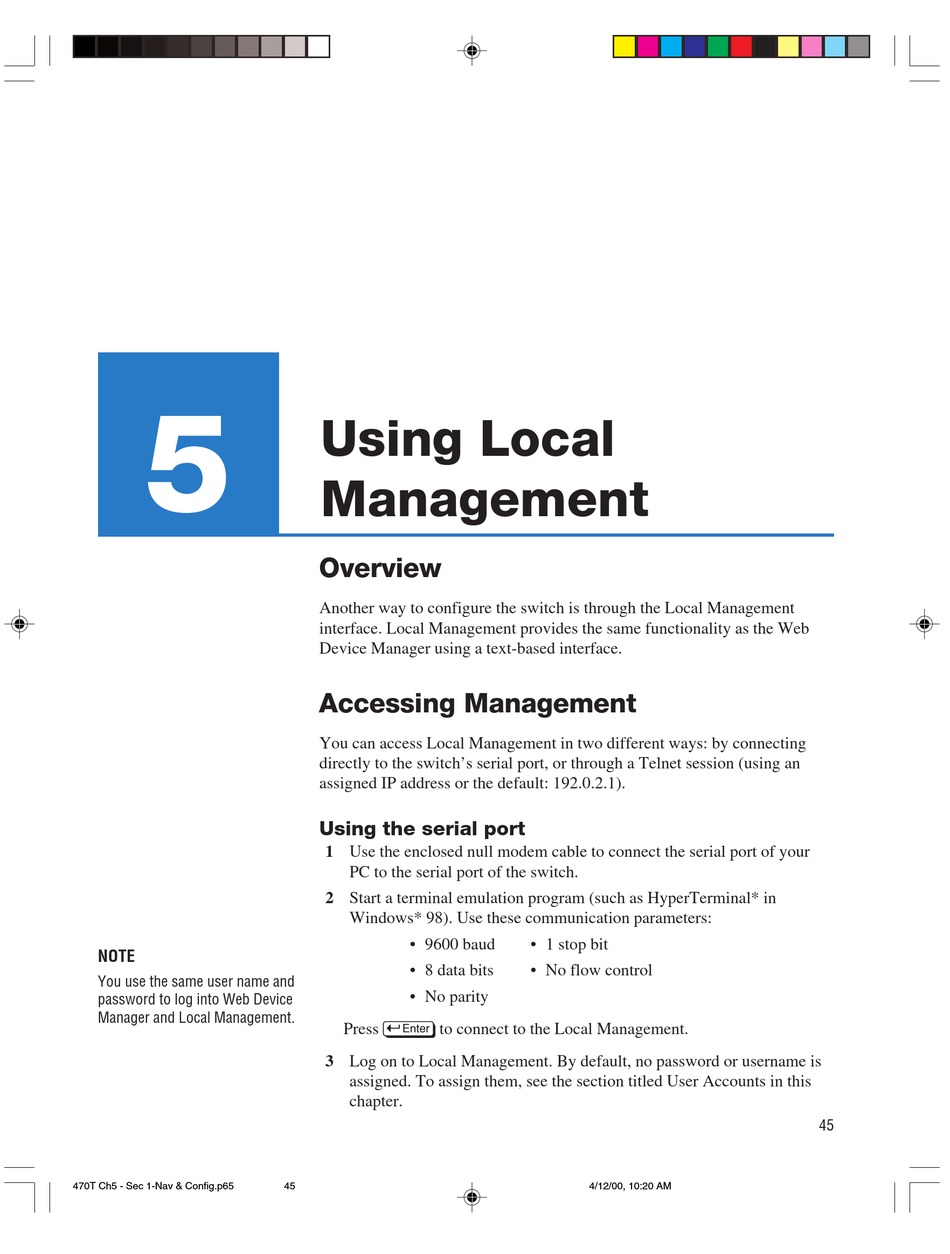

Using Local
Management

Overview

Another way to configure the switch is through the Local Management
interface. Local Management provides the same functionality as the Web
Device Manager using a text-based interface.

Accessing Management

You can access Local Management in two different ways: by connecting
directly to the switch's serial port, or through a Telnet session (using an
assigned IP address or the default: 192.0.2.1).
Using the serial port
1 Use the enclosed null modem cable to connect the serial port of your
PC to the serial port of the switch.
2 Start a terminal emulation program (such as HyperTerminal* in
Windows* 98). Use these communication parameters:
• 9600 baud
• 8 data bits
• No parity
Press E to connect to the Local Management.
3 Log on to Local Management. By default, no password or username is
assigned. To assign them, see the section titled User Accounts in this
chapter.
45
• 1 stop bit
• No flow control
