C H A P T E
LOCATION
Main Menu
Configure VLAN
Create an 802.1Q VLAN
Add an 802.1Q VLAN...
82
470T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R 5 Intel® NetStructure™ 470T and 470F Switches User Guide

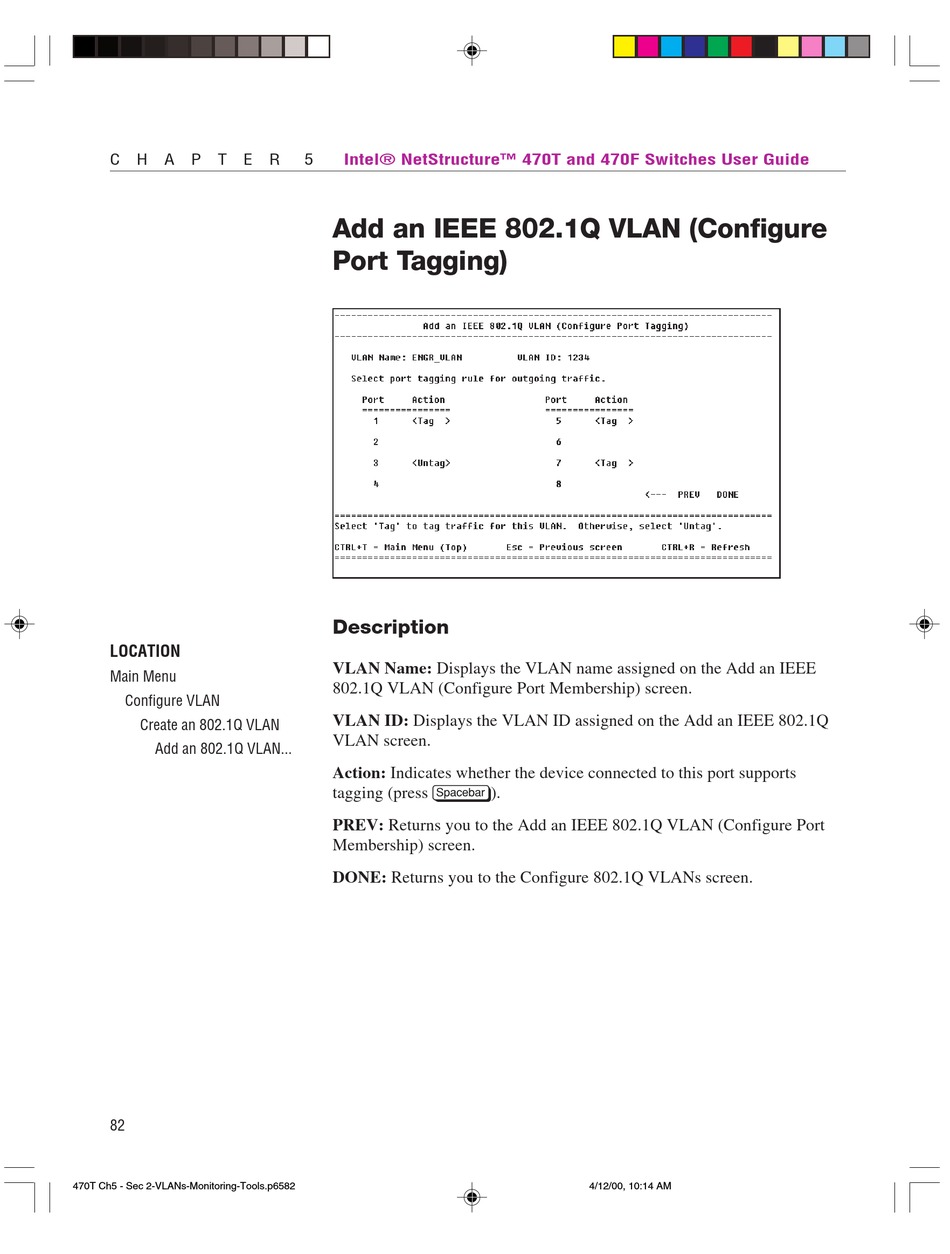

Add an IEEE 802.1Q VLAN (Configure
Port Tagging)
Description
VLAN Name: Displays the VLAN name assigned on the Add an IEEE
802.1Q VLAN (Configure Port Membership) screen.
VLAN ID: Displays the VLAN ID assigned on the Add an IEEE 802.1Q
VLAN screen.
Action: Indicates whether the device connected to this port supports
tagging (press z).
PREV: Returns you to the Add an IEEE 802.1Q VLAN (Configure Port
Membership) screen.
DONE: Returns you to the Configure 802.1Q VLANs screen.
