Configure Static Mac Addresses - Intel 470F - NetStructure Switch User Manual

C H A P T E
LOCATION
Main Menu
Configure Device
Forwarding and Filtering
Configure Permanent...
NOTE
If tag-based or port-based VLANs
are currently active, you must
assign each static MAC address to
a specific VLAN.
60
470T Ch5 - Sec 1-Nav & Config.p65
R 5 Intel® NetStructure™ 470T and 470F Switches User Guide

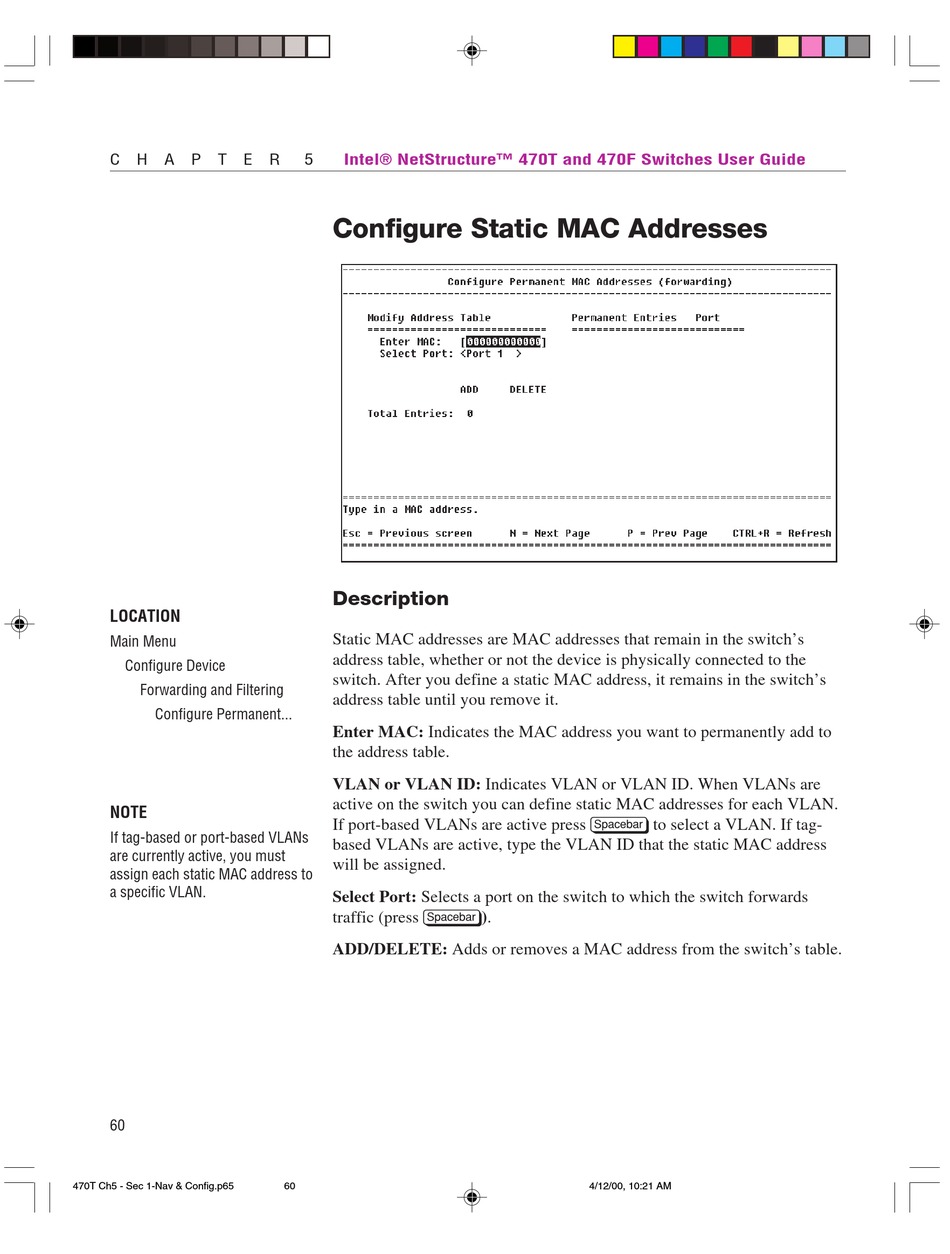

Configure Static MAC Addresses

Description
Static MAC addresses are MAC addresses that remain in the switch's
address table, whether or not the device is physically connected to the
switch. After you define a static MAC address, it remains in the switch's
address table until you remove it.
Enter MAC: Indicates the MAC address you want to permanently add to
the address table.
VLAN or VLAN ID: Indicates VLAN or VLAN ID. When VLANs are
active on the switch you can define static MAC addresses for each VLAN.
If port-based VLANs are active press z to select a VLAN. If tag-
based VLANs are active, type the VLAN ID that the static MAC address
will be assigned.
Select Port: Selects a port on the switch to which the switch forwards
traffic (press z).
ADD/DELETE: Adds or removes a MAC address from the switch's table.
