C H A P T E
LOCATION
To return to the Main Menu at any
time, press c T.
48
470T Ch5 - Sec 1-Nav & Config.p65
R 5 Intel® NetStructure™ 470T and 470F Switches User Guide

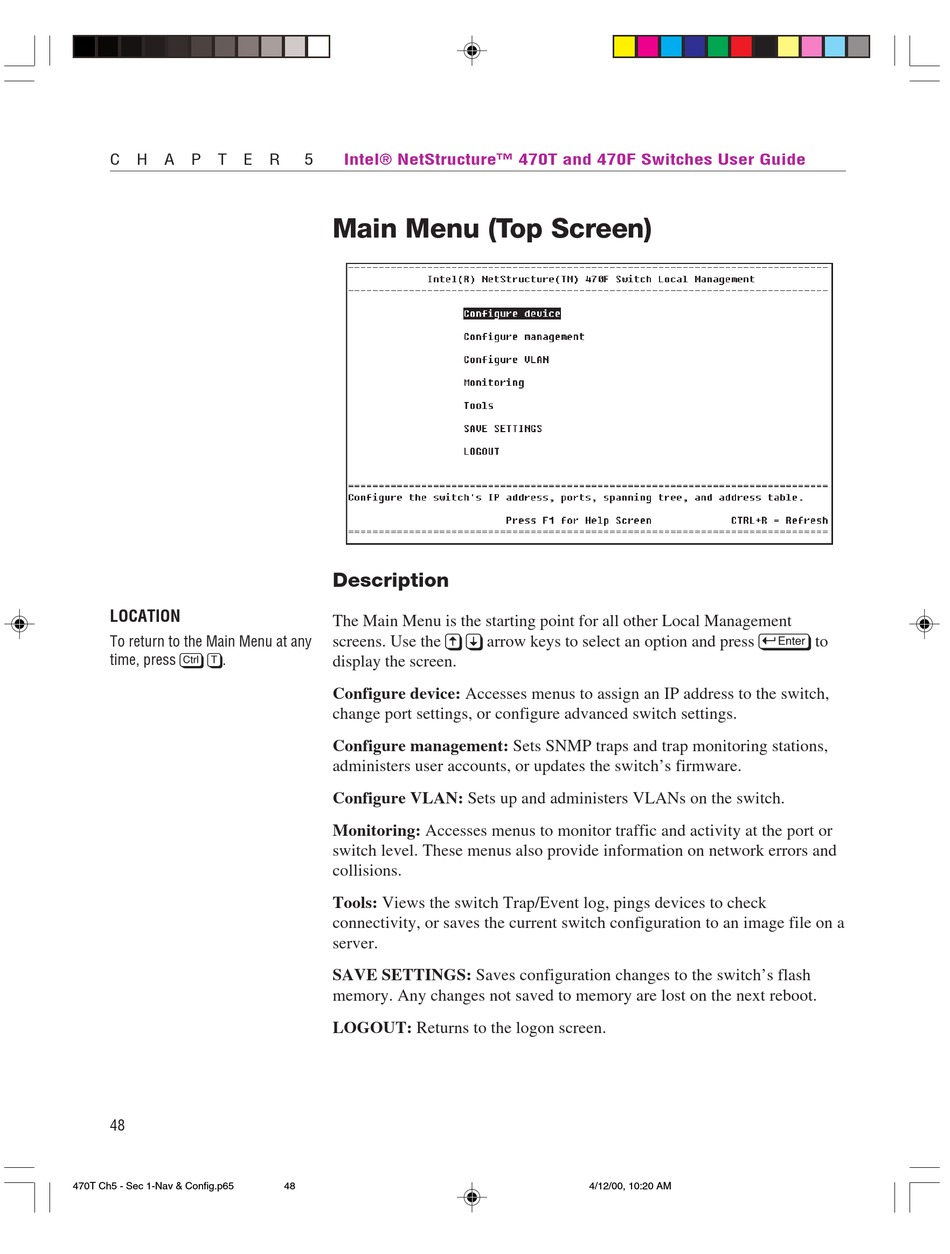

Main Menu (Top Screen)
Description
The Main Menu is the starting point for all other Local Management
screens. Use the W Z arrow keys to select an option and press E to
display the screen.
Configure device: Accesses menus to assign an IP address to the switch,
change port settings, or configure advanced switch settings.
Configure management: Sets SNMP traps and trap monitoring stations,
administers user accounts, or updates the switch's firmware.
Configure VLAN: Sets up and administers VLANs on the switch.
Monitoring: Accesses menus to monitor traffic and activity at the port or
switch level. These menus also provide information on network errors and
collisions.
Tools: Views the switch Trap/Event log, pings devices to check
connectivity, or saves the current switch configuration to an image file on a
server.
SAVE SETTINGS: Saves configuration changes to the switch's flash
memory. Any changes not saved to memory are lost on the next reboot.
LOGOUT: Returns to the logon screen.
