C H A P T E
LOCATION
Main Menu
Configure a VLAN
GVRP/Ingress Filter Settings
NOTE
In order for GVRP to work, the
port must be connected to
another port that supports GVRP.
90
470T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R 5 Intel® NetStructure™ 470T and 470F Switches User Guide

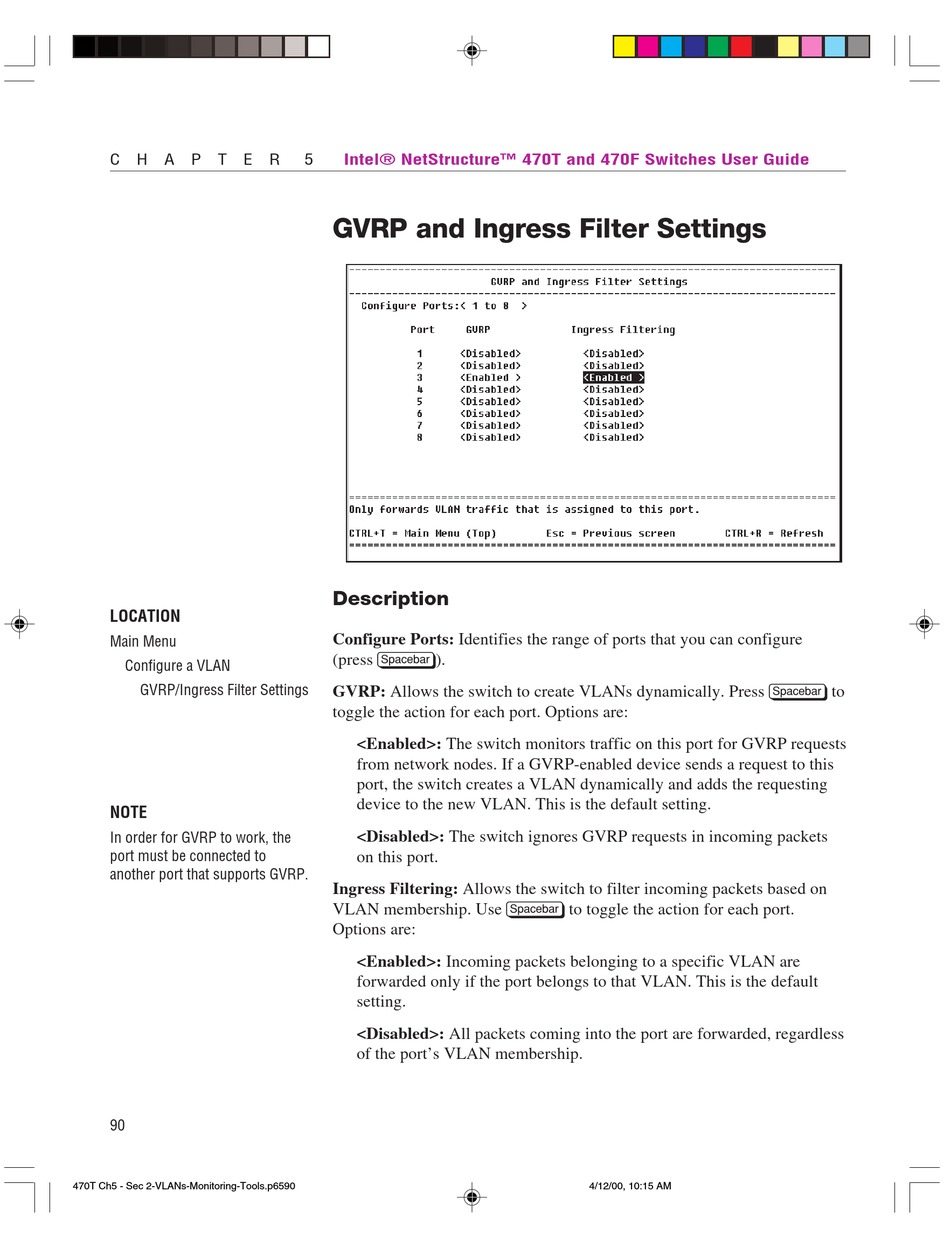

GVRP and Ingress Filter Settings

Description
Configure Ports: Identifies the range of ports that you can configure
(press z).
GVRP: Allows the switch to create VLANs dynamically. Press z to
toggle the action for each port. Options are:
<Enabled>: The switch monitors traffic on this port for GVRP requests
from network nodes. If a GVRP-enabled device sends a request to this
port, the switch creates a VLAN dynamically and adds the requesting
device to the new VLAN. This is the default setting.
<Disabled>: The switch ignores GVRP requests in incoming packets
on this port.
Ingress Filtering: Allows the switch to filter incoming packets based on
VLAN membership. Use z to toggle the action for each port.
Options are:
<Enabled>: Incoming packets belonging to a specific VLAN are
forwarded only if the port belongs to that VLAN. This is the default
setting.
<Disabled>: All packets coming into the port are forwarded, regardless
of the port's VLAN membership.
