R 2 Intel® NetStructure

Sample Configuration

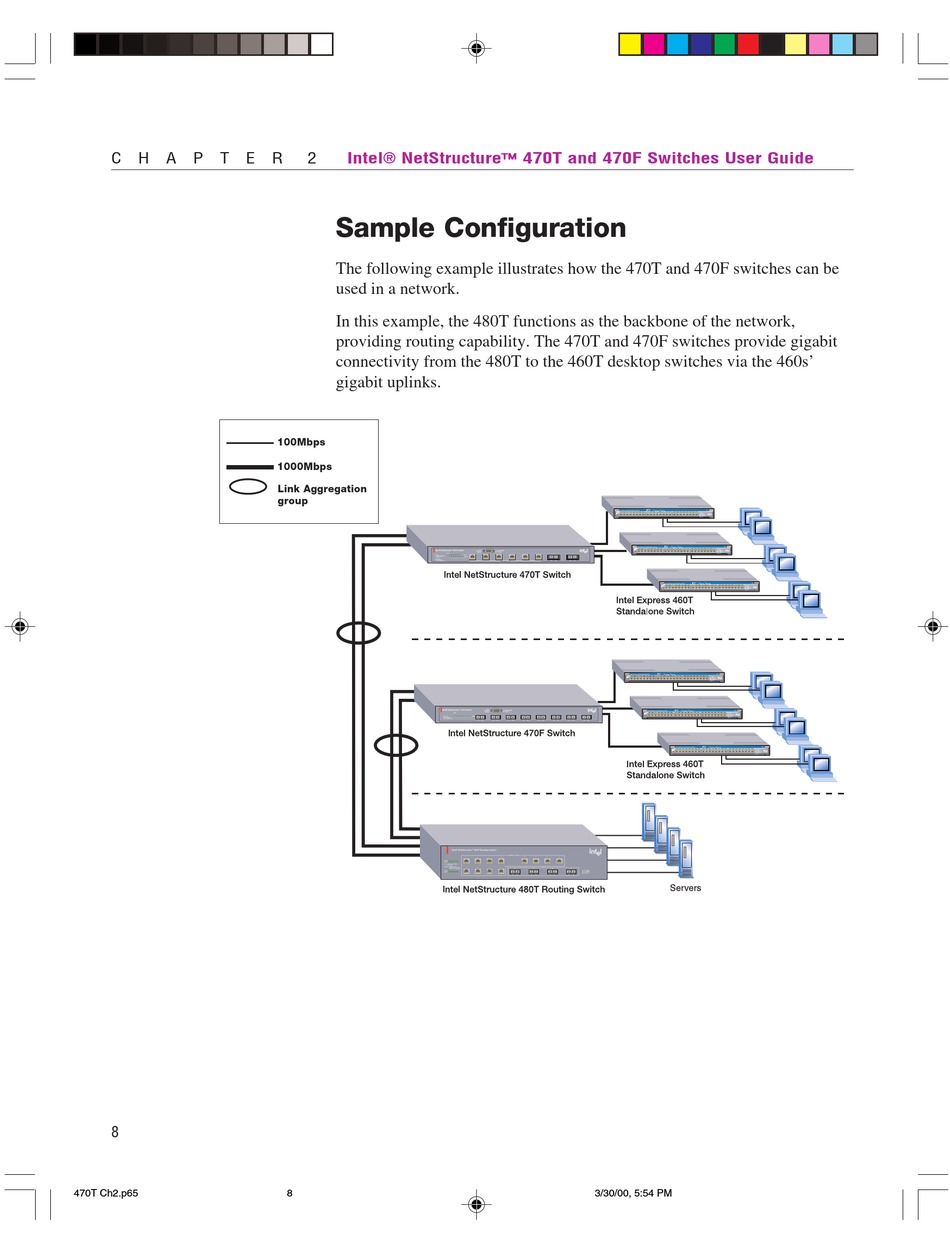

The following example illustrates how the 470T and 470F switches can be
used in a network.
In this example, the 480T functions as the backbone of the network,
providing routing capability. The 470T and 470F switches provide gigabit
connectivity from the 480T to the 460T desktop switches via the 460s'
gigabit uplinks.
100Mbps
1000Mbps
Link Aggregation
group
8
