Switch Event Log - Intel 470F - NetStructure Switch User Manual

C H A P T E
LOCATION
Main Menu
Tools
View Switch Traps and Events
470T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R 5 Using Local Management

Switch Event Log

Description

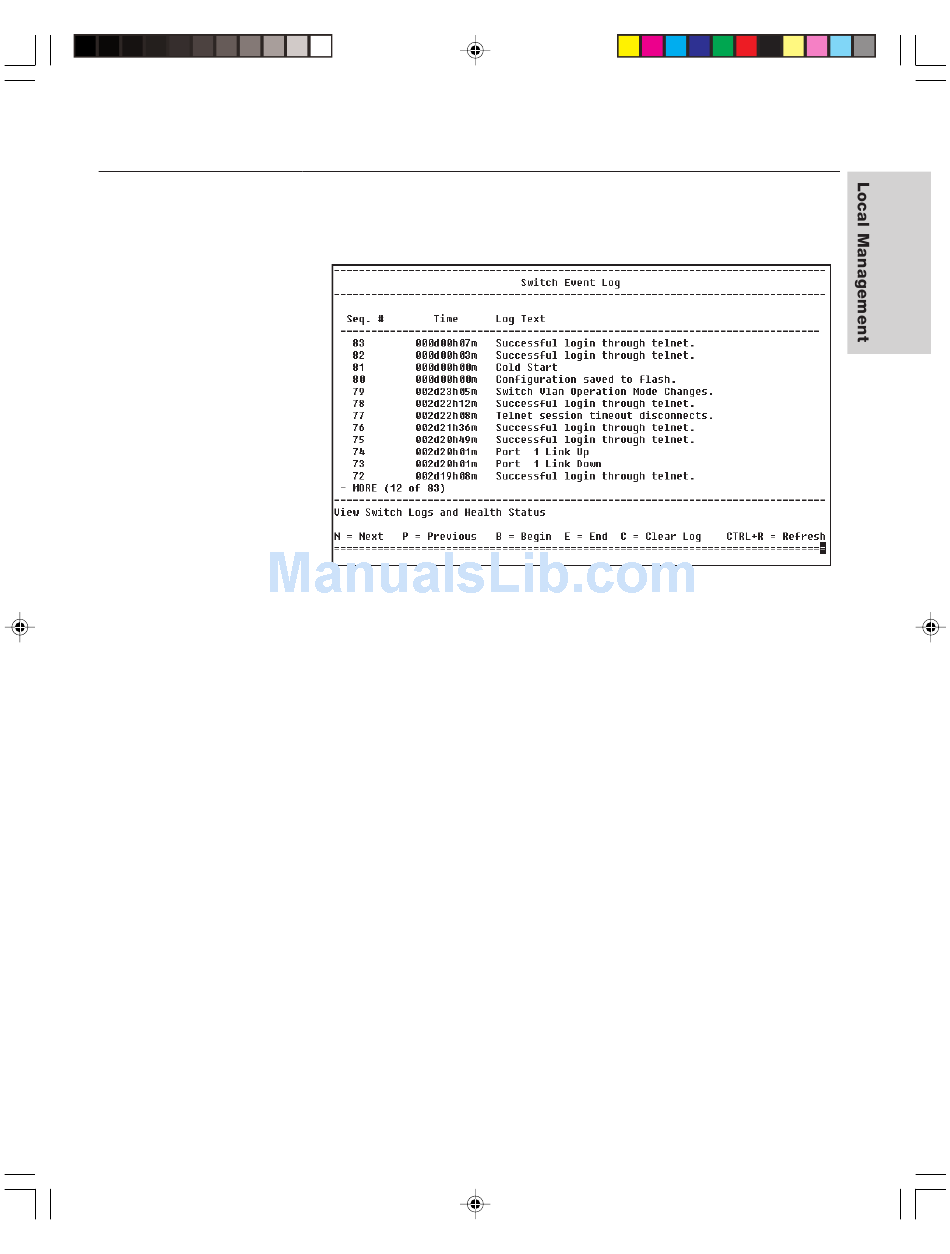

This screen allows you to view and navigate the switch's log. The log is
similar to a trap and event receiver but it only captures traps/events
generated by the switch itself. For example, the log includes events such as
when a port is disabled, when an unauthorized user attempts to access a
management interface, and when the switch reboots.
The log entries are listed chronologically from the last time the switch was
rebooted. Use the following keys to navigate the log:
N = Go to the next page
P = Go to the previous page
B = Go to the beginning of the log
E = Go to the end of the log
C = Clear the log
