C H A P T E
LOCATION
Main Menu
Configure Device
Forwarding and Filtering
Configure Ethernet...
Multicast filters per port
64
470T Ch5 - Sec 1-Nav & Config.p65
R 5 Intel® NetStructure™ 470T and 470F Switches User Guide

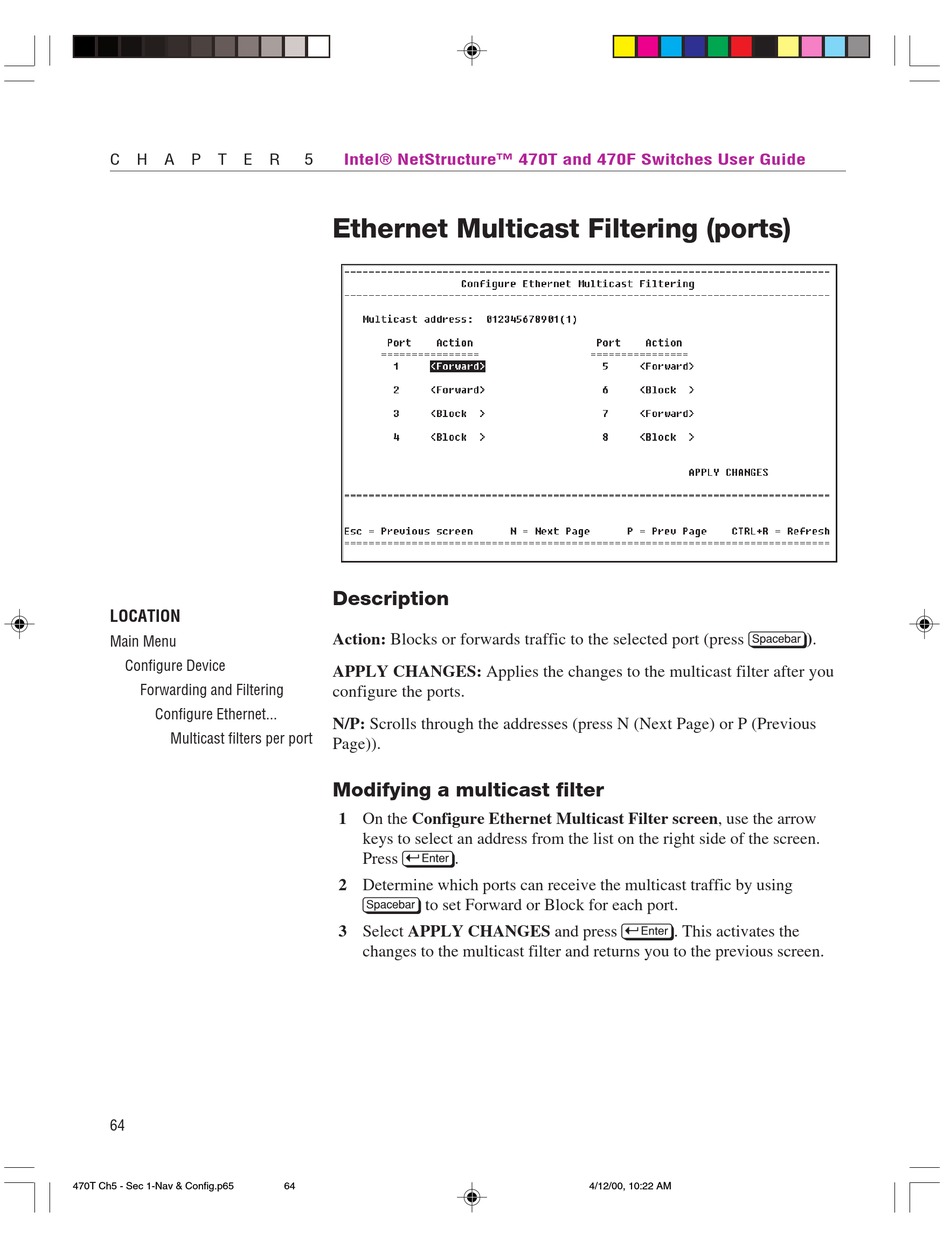

Ethernet Multicast Filtering (ports)

Description
Action: Blocks or forwards traffic to the selected port (press z).
APPLY CHANGES: Applies the changes to the multicast filter after you
configure the ports.
N/P: Scrolls through the addresses (press N (Next Page) or P (Previous
Page)).
Modifying a multicast filter
1 On the Configure Ethernet Multicast Filter screen, use the arrow
keys to select an address from the list on the right side of the screen.
Press E.
2 Determine which ports can receive the multicast traffic by using
z to set Forward or Block for each port.
3 Select APPLY CHANGES and press E. This activates the
changes to the multicast filter and returns you to the previous screen.
