C H A P T E
LOCATION
Main Menu
Configure VLAN
Edit/Delete IEEE 802.1Q VLAN
NOTE
A '+' next to the Member toggle
indicates that port is a member of
more than one VLAN.
470T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R 5 Using Local Management

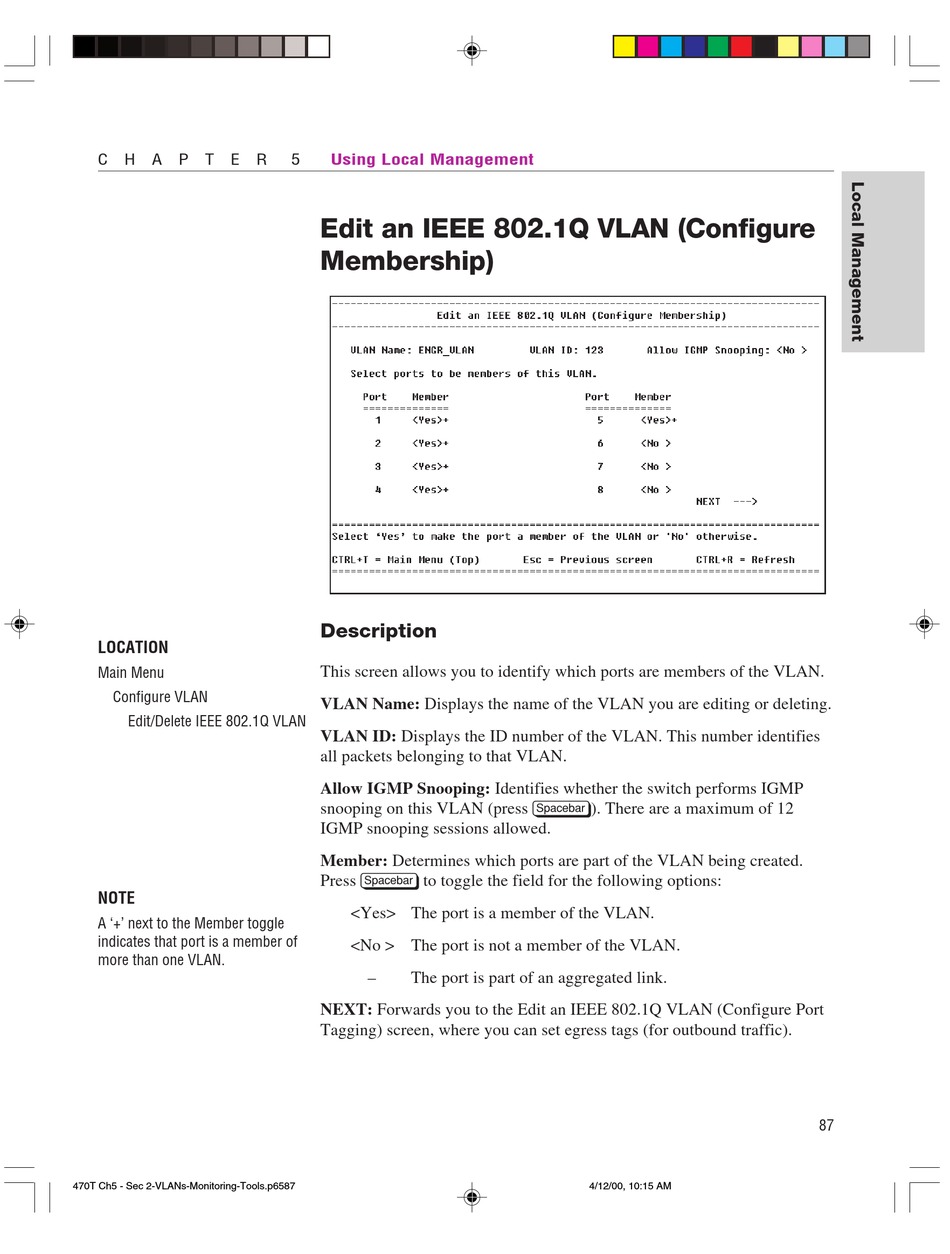

Edit an IEEE 802.1Q VLAN (Configure
Membership)
Description
This screen allows you to identify which ports are members of the VLAN.
VLAN Name: Displays the name of the VLAN you are editing or deleting.
VLAN ID: Displays the ID number of the VLAN. This number identifies
all packets belonging to that VLAN.
Allow IGMP Snooping: Identifies whether the switch performs IGMP
snooping on this VLAN (press z). There are a maximum of 12
IGMP snooping sessions allowed.
Member: Determines which ports are part of the VLAN being created.
Press z to toggle the field for the following options:
<Yes> The port is a member of the VLAN.
<No > The port is not a member of the VLAN.
– The port is part of an aggregated link.
NEXT: Forwards you to the Edit an IEEE 802.1Q VLAN (Configure Port
Tagging) screen, where you can set egress tags (for outbound traffic).
