C H A P T E
LOCATION
Main Menu
Monitoring
470T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R 5 Using Local Management

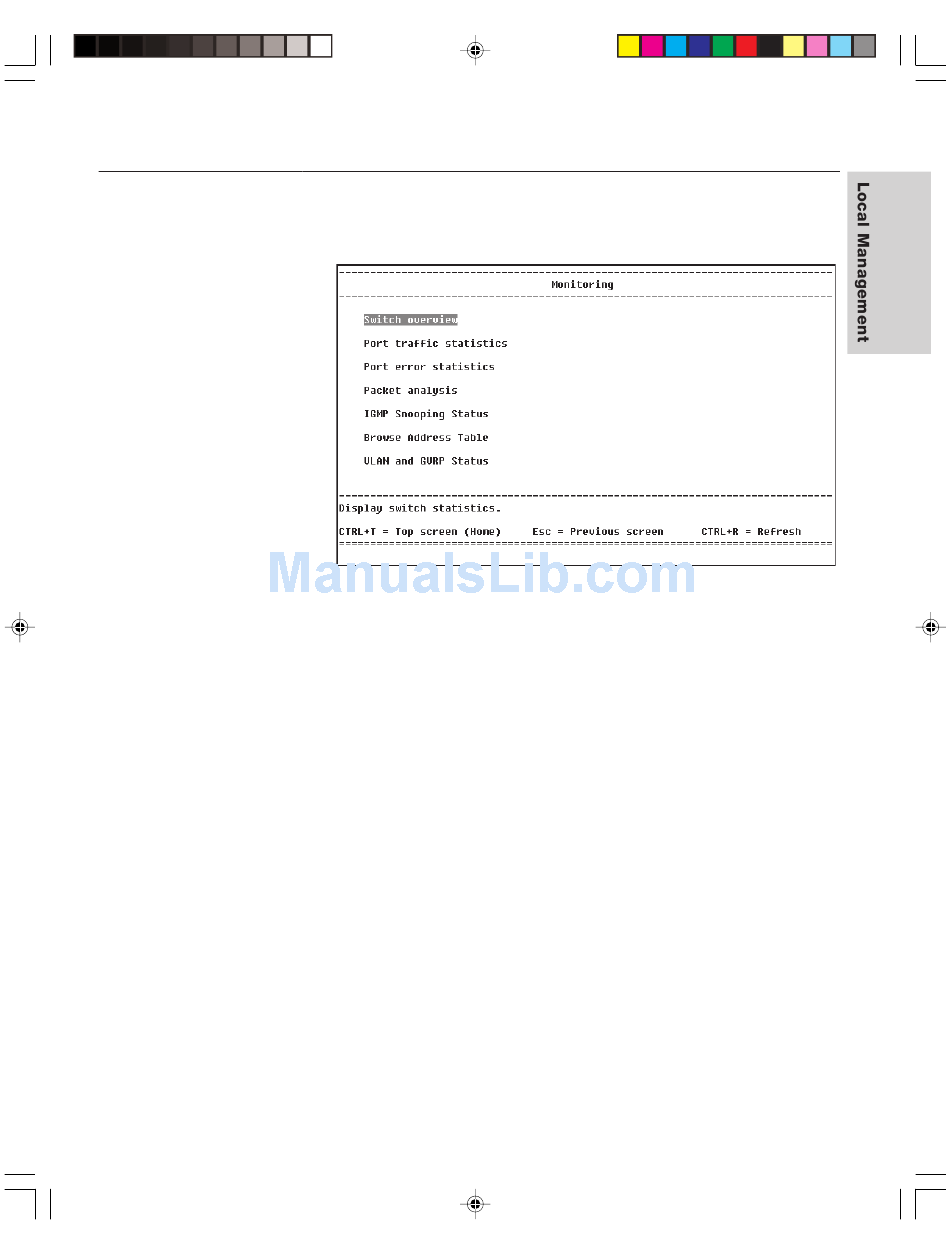

Monitor (Network Statistics)
Description
Switch overview: Displays an overview of all ports on the switch.
Port traffic statistics: Displays port traffic statistics and utilization.
Port error statistics: Displays port error statistics.
Packet analysis: Displays traffic per port by packet size and type.
IGMP Snooping Status: Displays active IP multicast groups detected by
the switch.
Browse address table: Displays the entries in the switch's address table by
port or MAC address.
VLAN and GVRP Status: Displays status for static and dynamic tag-
based (IEEE 802.1Q) VLANs. This option is available only when the
switch is running 802.1Q VLANs.
