R 5 Intel® NetStructure™ 470T and 470F Switches User Guide
Switch Overview
Description

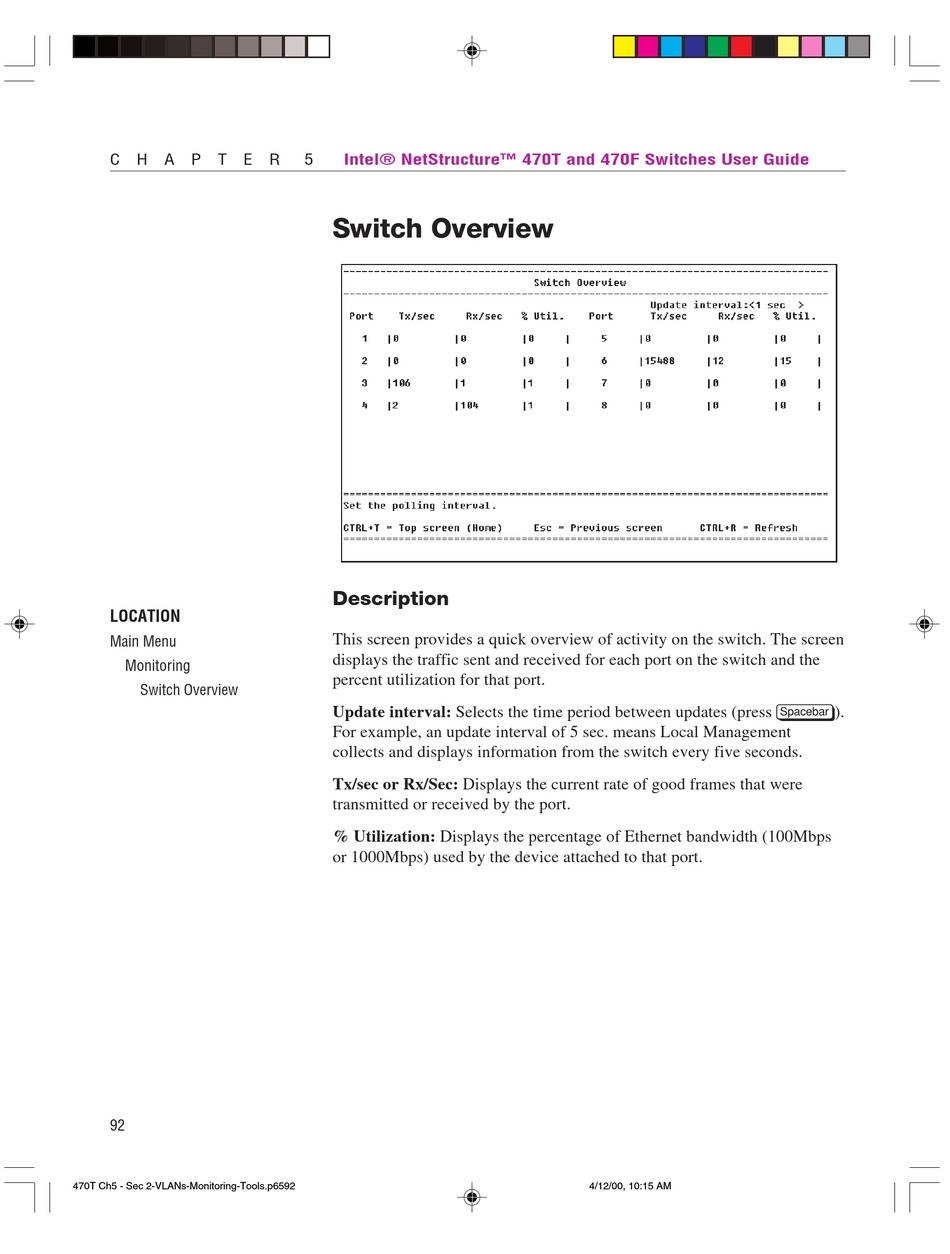

This screen provides a quick overview of activity on the switch. The screen
displays the traffic sent and received for each port on the switch and the
percent utilization for that port.
Update interval: Selects the time period between updates (press z).
For example, an update interval of 5 sec. means Local Management
collects and displays information from the switch every five seconds.
Tx/sec or Rx/Sec: Displays the current rate of good frames that were
transmitted or received by the port.
% Utilization: Displays the percentage of Ethernet bandwidth (100Mbps
or 1000Mbps) used by the device attached to that port.
