C H A P T E
LOCATION
Main Menu
Configure Device

Switch Settings

NOTE
Write down both the firmware
version and Boot PROM version
in case you need to contact Intel
Customer Support.
470T Ch5 - Sec 1-Nav & Config.p65
R 5 Using Local Management

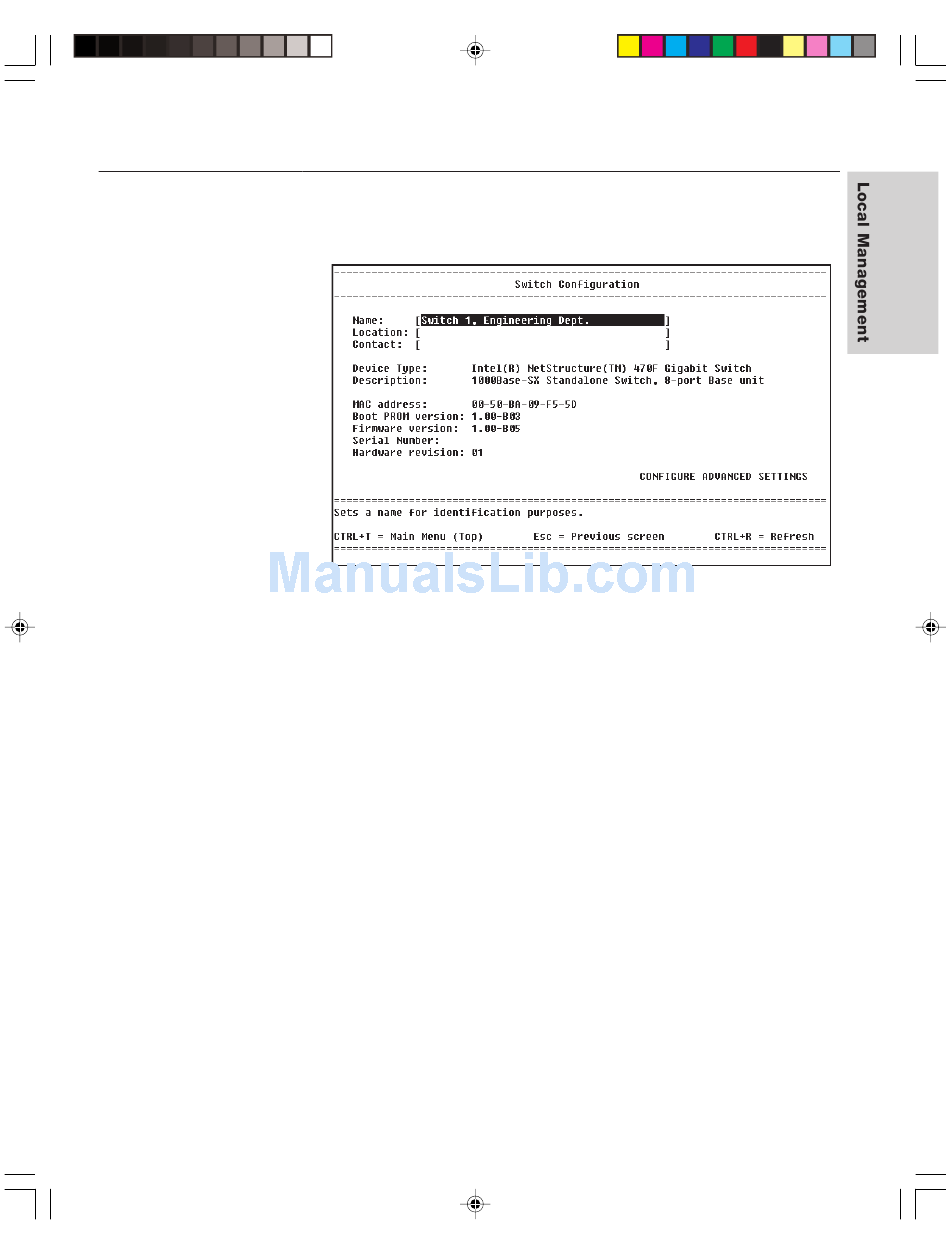

Switch Settings
Description
Name: Assigns a name to the switch, up to 40 characters long.
Location: Assigns a location to the switch, up to 40 characters long.
Contact: Assigns a contact person or phone number to the switch, up to 40
characters long.
Device Type: Displays the manufacturer-assigned type of switch.
Description: Displays description of switch.
Port 7- and 8-GBIC: Displays the type of GBIC detected.
MAC address: Displays the unique hardware address assigned by Intel.
®
Boot PROM version: Displays the version of the switch's boot code.
Firmware version: Displays the version of the firmware installed on the
switch. You can update this software through the Update Firmware and
Configuration Files screen.
Serial Number: Displays the hardware serial number for the switch.
Hardware revision: Displays the version of the switch's PCB.
CONFIGURE ADVANCED SETTINGS: Sets advanced switch settings
such as port auto-partition and Head of Line blocking.
