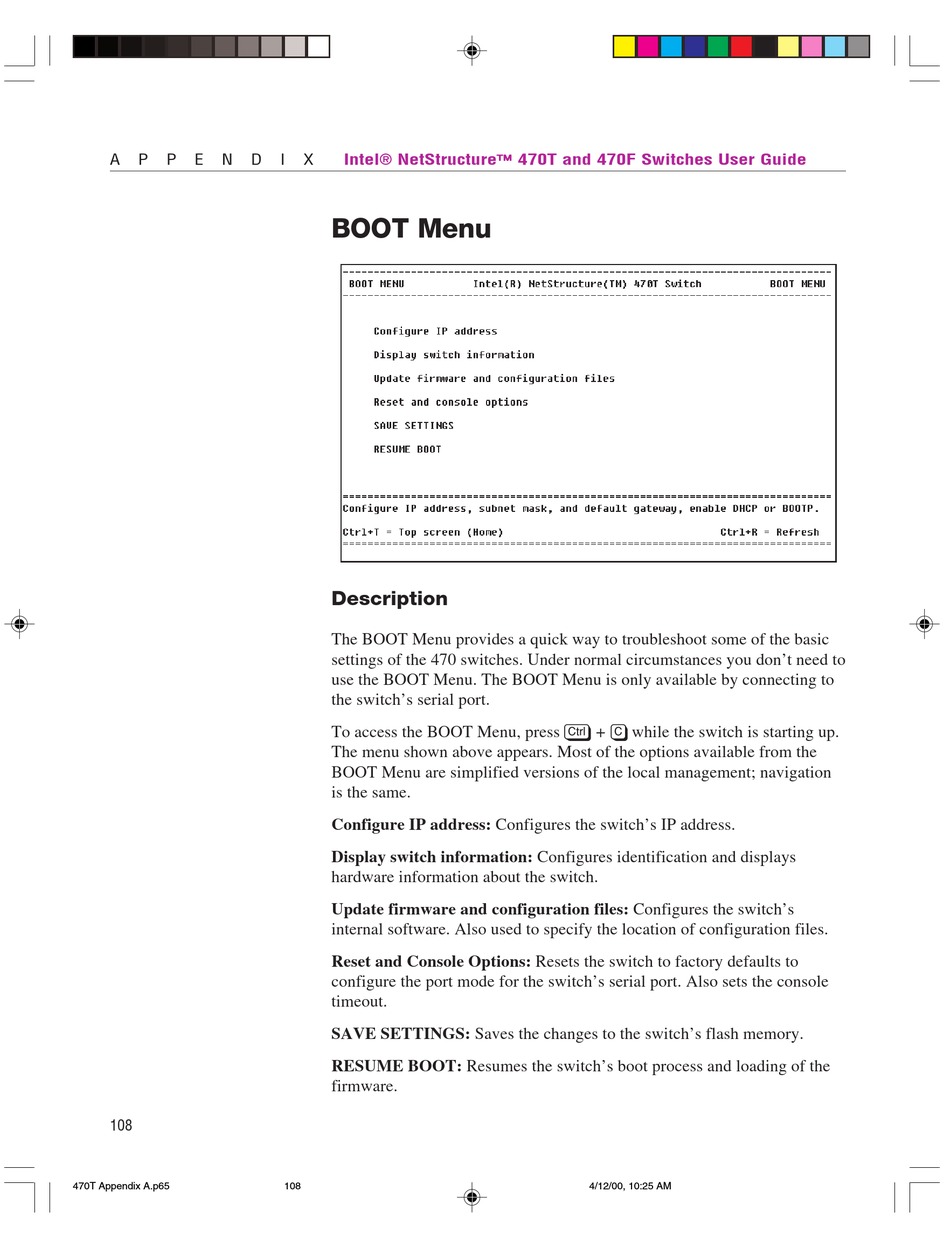

BOOT Menu

Description
The BOOT Menu provides a quick way to troubleshoot some of the basic
settings of the 470 switches. Under normal circumstances you don't need to
use the BOOT Menu. The BOOT Menu is only available by connecting to
the switch's serial port.
To access the BOOT Menu, press c + C while the switch is starting up.
The menu shown above appears. Most of the options available from the
BOOT Menu are simplified versions of the local management; navigation
is the same.
Configure IP address: Configures the switch's IP address.
Display switch information: Configures identification and displays
hardware information about the switch.
Update firmware and configuration files: Configures the switch's
internal software. Also used to specify the location of configuration files.
Reset and Console Options: Resets the switch to factory defaults to
configure the port mode for the switch's serial port. Also sets the console
timeout.
SAVE SETTINGS: Saves the changes to the switch's flash memory.
RESUME BOOT: Resumes the switch's boot process and loading of the
firmware.
