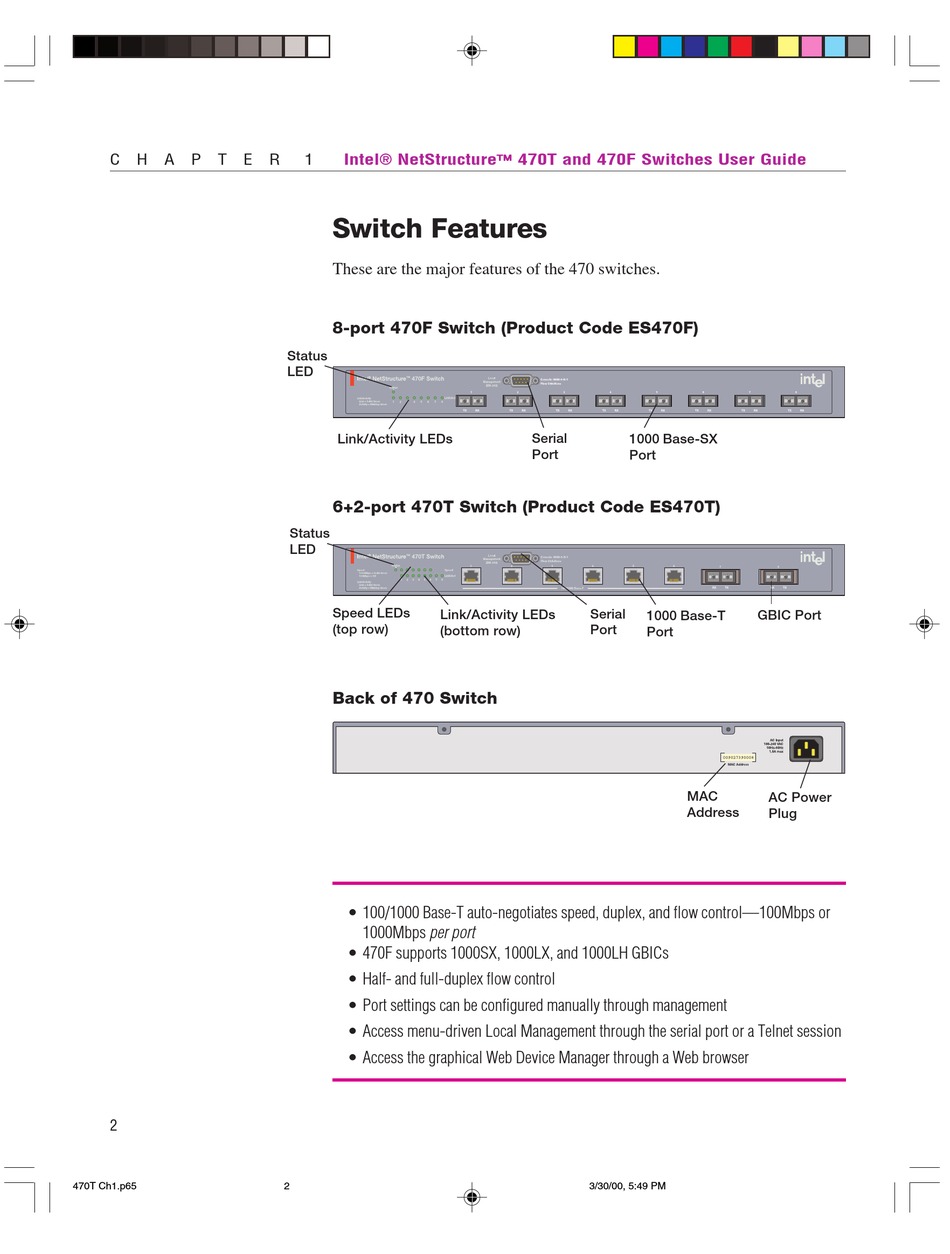

R 1 Intel® NetStructure

Switch Features

These are the major features of the 470 switches.
8-port 470F Switch (Product Code ES470F)
Status
LED
Link/Activity LEDs
6+2-port 470T Switch (Product Code ES470T)
Status
LED
Speed LEDs
Link/Activity LEDs
(top row)
(bottom row)
Back of 470 Switch
• 100/1000 Base-T auto-negotiates speed, duplex, and flow control—100Mbps or
1000Mbps per port
• 470F supports 1000SX, 1000LX, and 1000LH GBICs
• Half- and full-duplex flow control
• Port settings can be configured manually through management
• Access menu-driven Local Management through the serial port or a Telnet session
• Access the graphical Web Device Manager through a Web browser
2
  470T and 470F Switches User Guide  
Serial
1000 Base-SX
Port
Port
Serial
1000 Base-T
Port
Port
3/30/00, 5:49 PM
GBIC Port
MAC
AC Power
Address
Plug
