Port-based VLAN
You configure a port-based VLAN by first creating the VLAN and then
adding participating ports. The switch can support up to four port-based
VLANs. However a port can be a member of only one VLAN; port-based
VLANs cannot overlap.

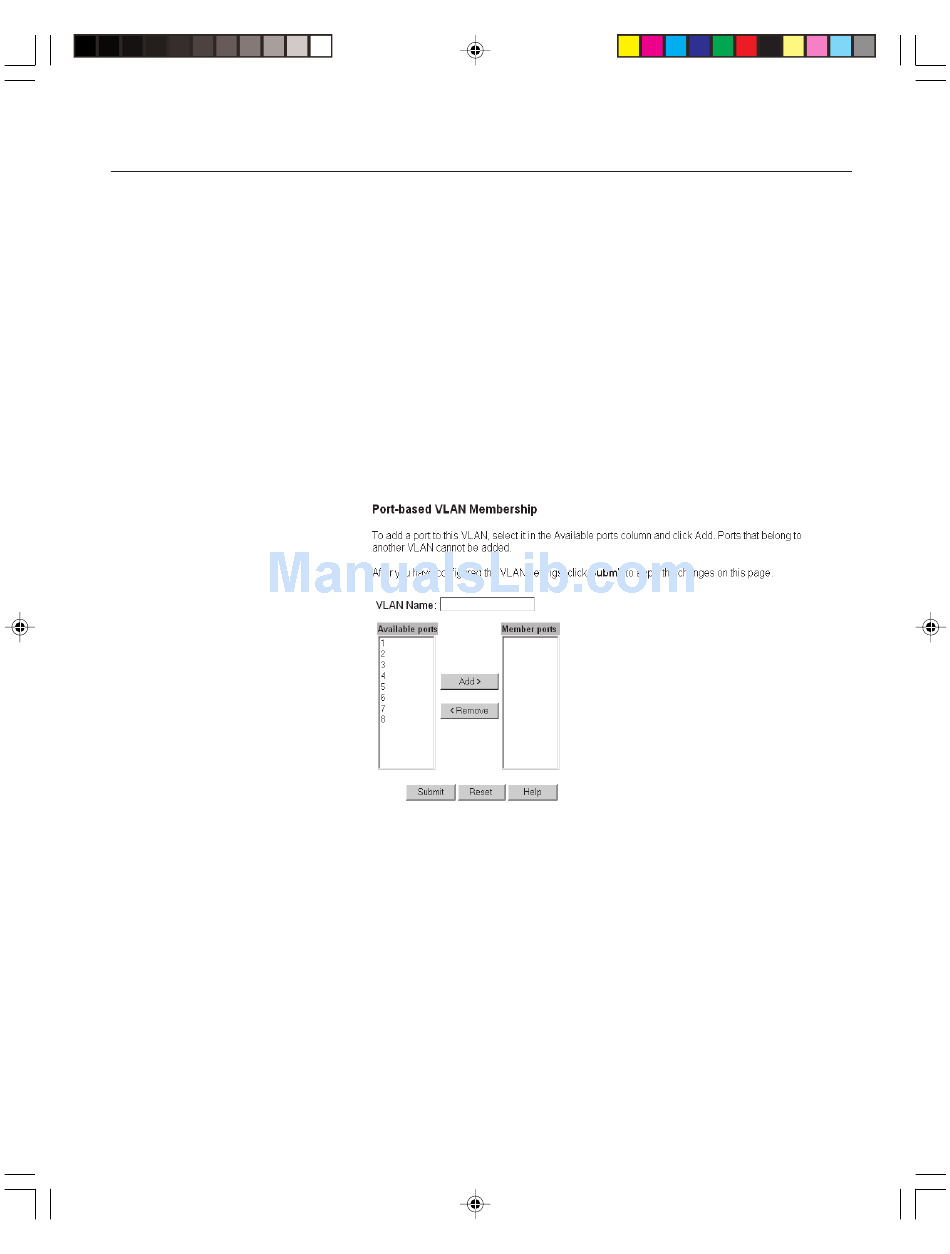

To configure a port-based VLAN
1 Click the Configure VLAN menu and then click Port-based VLAN.
2 Click Add to create a new VLAN, or select a VLAN and click Edit to
change its configuration.
3 If you are creating a new VLAN, type a name in the VLAN name box.
4 In the Available Ports box, click to select a port to add to the VLAN
and click Add.
5 After you finish adding ports, click Submit.
