C H A P T E R
NOTE
These are the traps supported by
the switch:
• Power to the switch was
cycled or reset.
• Link, speed, or other status
changes on a port.
• Spanning Tree topology
changes.
• Authentication failure.
40
4 Intel® NetStructure™ 470T and 470F Switches User Guide
Configuring Community Strings and
Trap Receivers
A trap receiver is a computer on the network that is running an SNMP
management application and receives messages sent by the switch. For
example, the switch can send a trap to the trap receiver when it detects a
change in port speed.

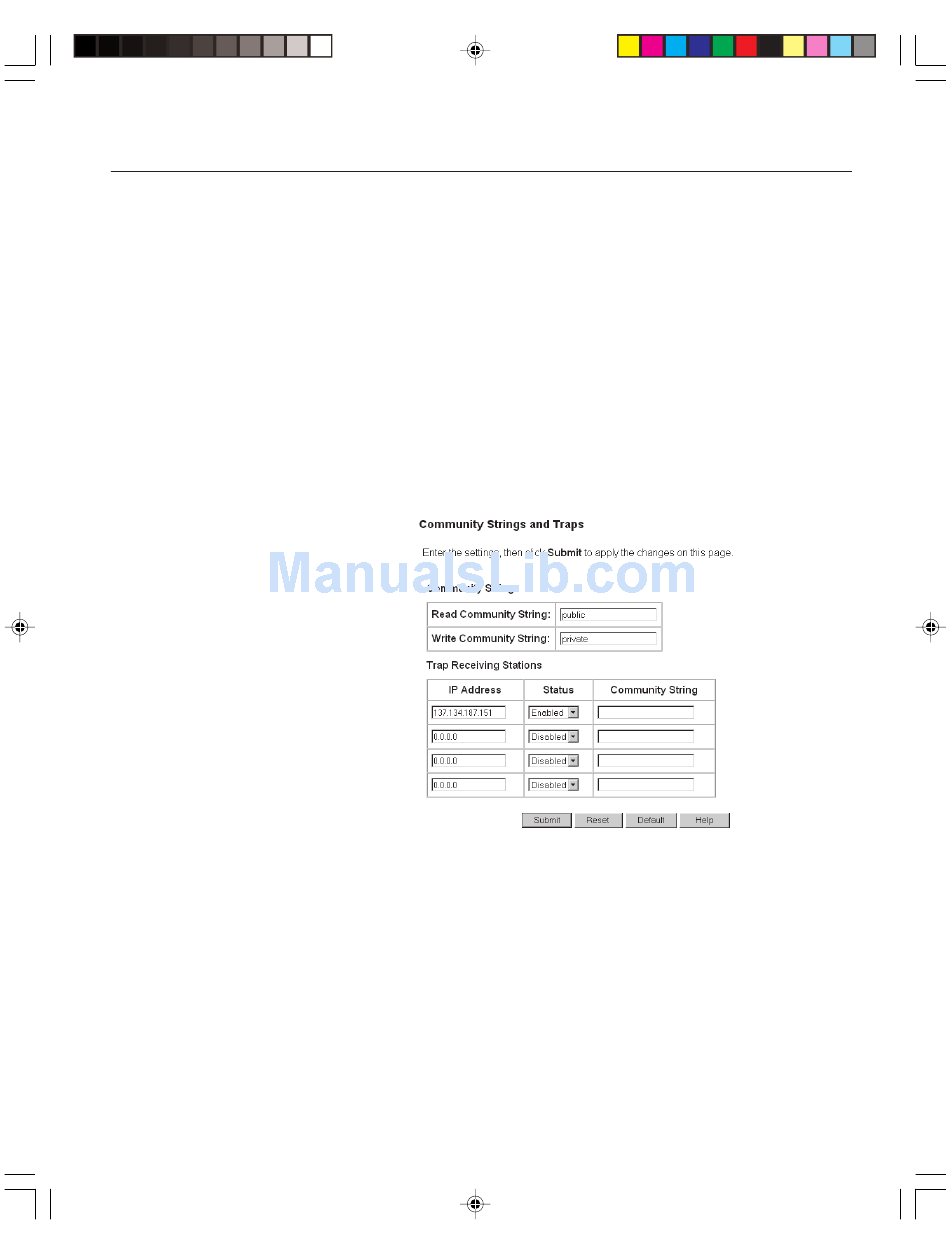

To specify a trap receiver
1 Click the Configure Management menu and then click Community
Strings and Traps.
3 In the IP Address box, type the IP address of the computer you want to
use as a trap receiver. You can specify up to four trap receivers.
4 From the Status box, click Enabled.
5 In the Community String box, type the trap receiver's SNMP
application community string.
6 Click Submit.
