Forwarding And Filtering - Intel 470F - NetStructure Switch User Manual

C H A P T E
LOCATION
Main Menu
Configure Device

Forwarding and Filtering

58
470T Ch5 - Sec 1-Nav & Config.p65
R 5 Intel® NetStructure™ 470T and 470F Switches User Guide

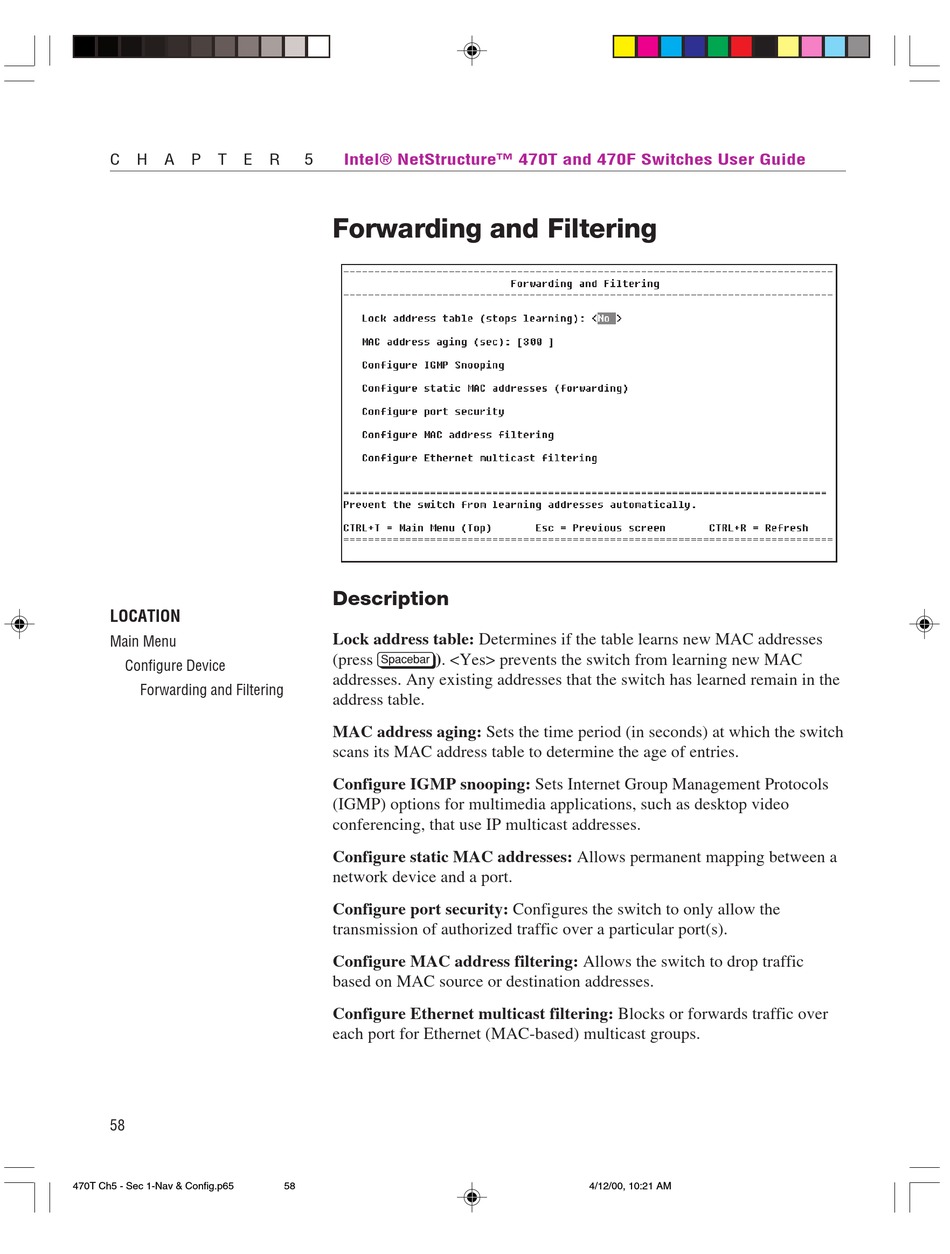

Forwarding and Filtering
Description
Lock address table: Determines if the table learns new MAC addresses
(press z). <Yes> prevents the switch from learning new MAC
addresses. Any existing addresses that the switch has learned remain in the
address table.
MAC address aging: Sets the time period (in seconds) at which the switch
scans its MAC address table to determine the age of entries.
Configure IGMP snooping: Sets Internet Group Management Protocols
(IGMP) options for multimedia applications, such as desktop video
conferencing, that use IP multicast addresses.
Configure static MAC addresses: Allows permanent mapping between a
network device and a port.
Configure port security: Configures the switch to only allow the
transmission of authorized traffic over a particular port(s).
Configure MAC address filtering: Allows the switch to drop traffic
based on MAC source or destination addresses.
Configure Ethernet multicast filtering: Blocks or forwards traffic over
each port for Ethernet (MAC-based) multicast groups.
58 4/12/00, 10:21 AM
