C H A P T E
Help text at the bottom of
the screen provides infor-
mation on the selected
item.
470T Ch5 - Sec 1-Nav & Config.p65
R 5 Using Local Management

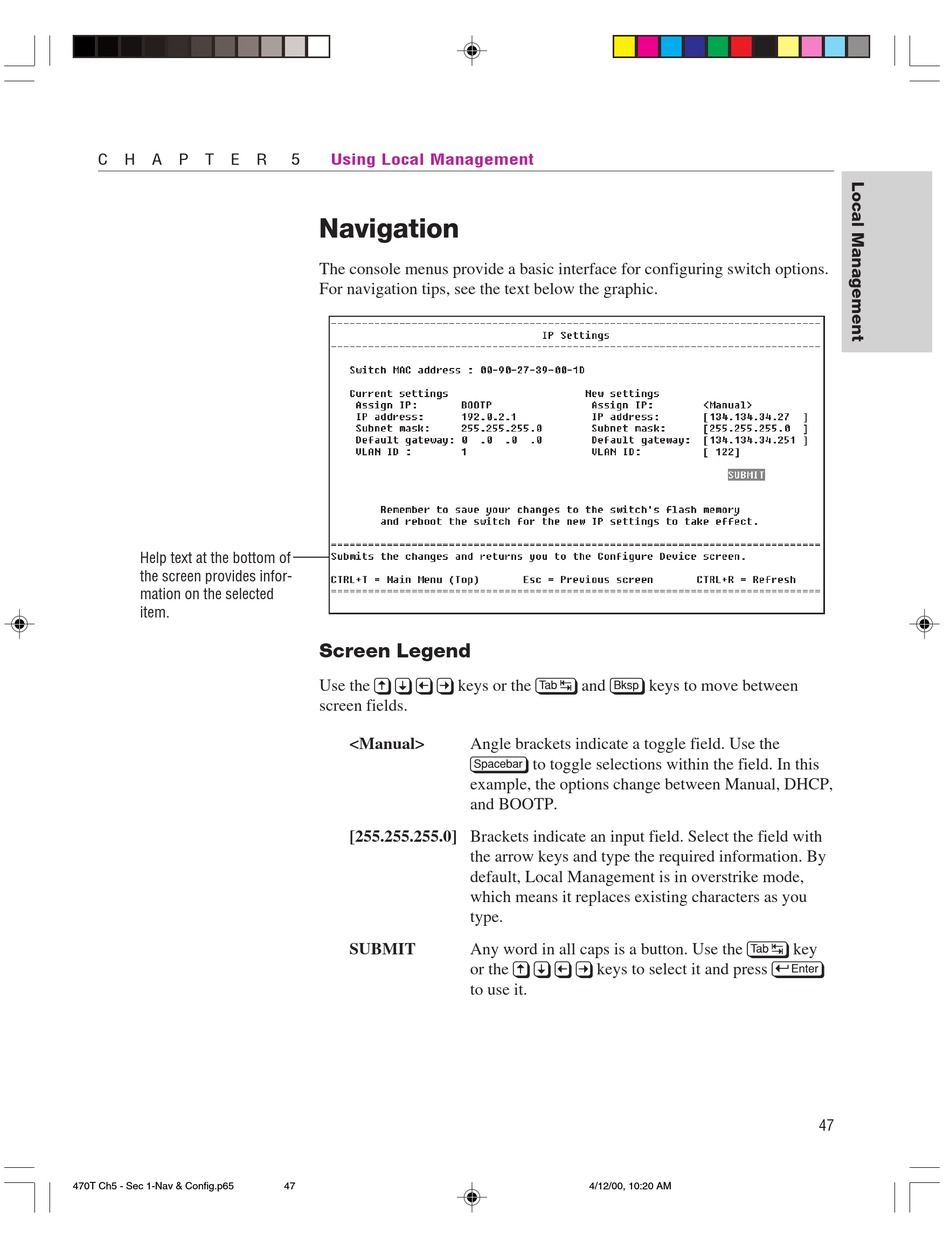

Navigation

The console menus provide a basic interface for configuring switch options.
For navigation tips, see the text below the graphic.
Screen Legend
Use the W Z A S keys or the T and b keys to move between
screen fields.
<Manual>
[255.255.255.0] Brackets indicate an input field. Select the field with
SUBMIT
47
Angle brackets indicate a toggle field. Use the
z to toggle selections within the field. In this
example, the options change between Manual, DHCP,
and BOOTP.
the arrow keys and type the required information. By
default, Local Management is in overstrike mode,
which means it replaces existing characters as you
type.
Any word in all caps is a button. Use the T key
or the W Z A S keys to select it and press E
to use it.
