LOCATION
Main Menu
Configure VLAN
80
470T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R
5
Intel® NetStructure™ 470T and 470F Switches User Guide

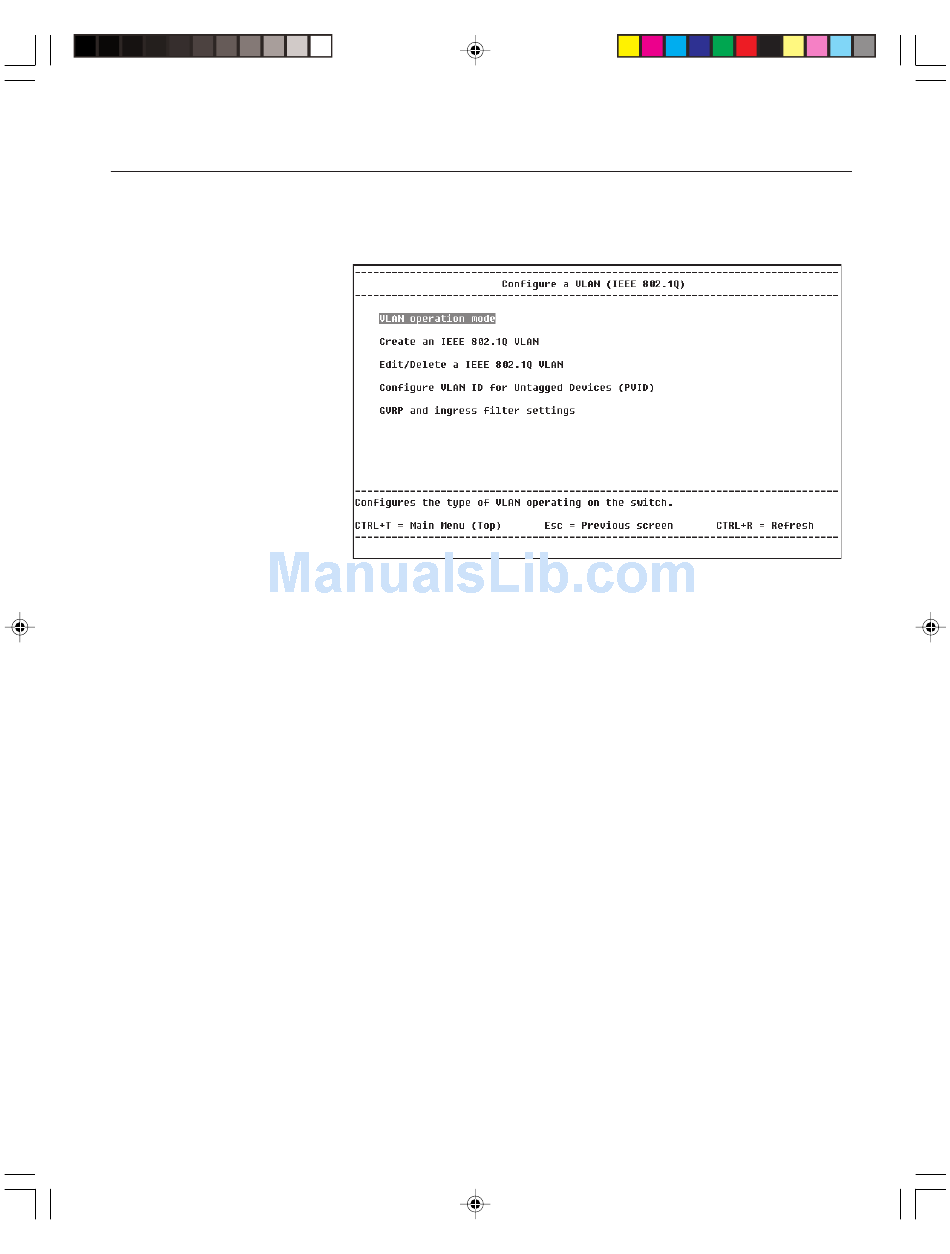

Configure 802.1Q VLANs
Description
VLAN Operation Mode: Changes the type of VLAN operating on the
switch, or disables VLANs entirely.
Create an IEEE 802.1Q VLAN: Creates a new 802.1Q VLAN and adds
ports to the VLAN.
Edit/Delete an IEEE 802.1Q VLAN: Changes port membership of an
existing VLAN or removes a VLAN from the switch.
Configure VLAN ID for untagged devices (PVID): Assigns a VLAN to
inbound packets without a VID.
GVRP and ingress filter settings: Sets port-level options for dynamic
VLAN creation and packet filtering by the VLAN.
80
