HP Z210 Maintenance And Service Manual Page 86

Convertible mini tower workstation.
Hide thumbs

Advertisement

7.

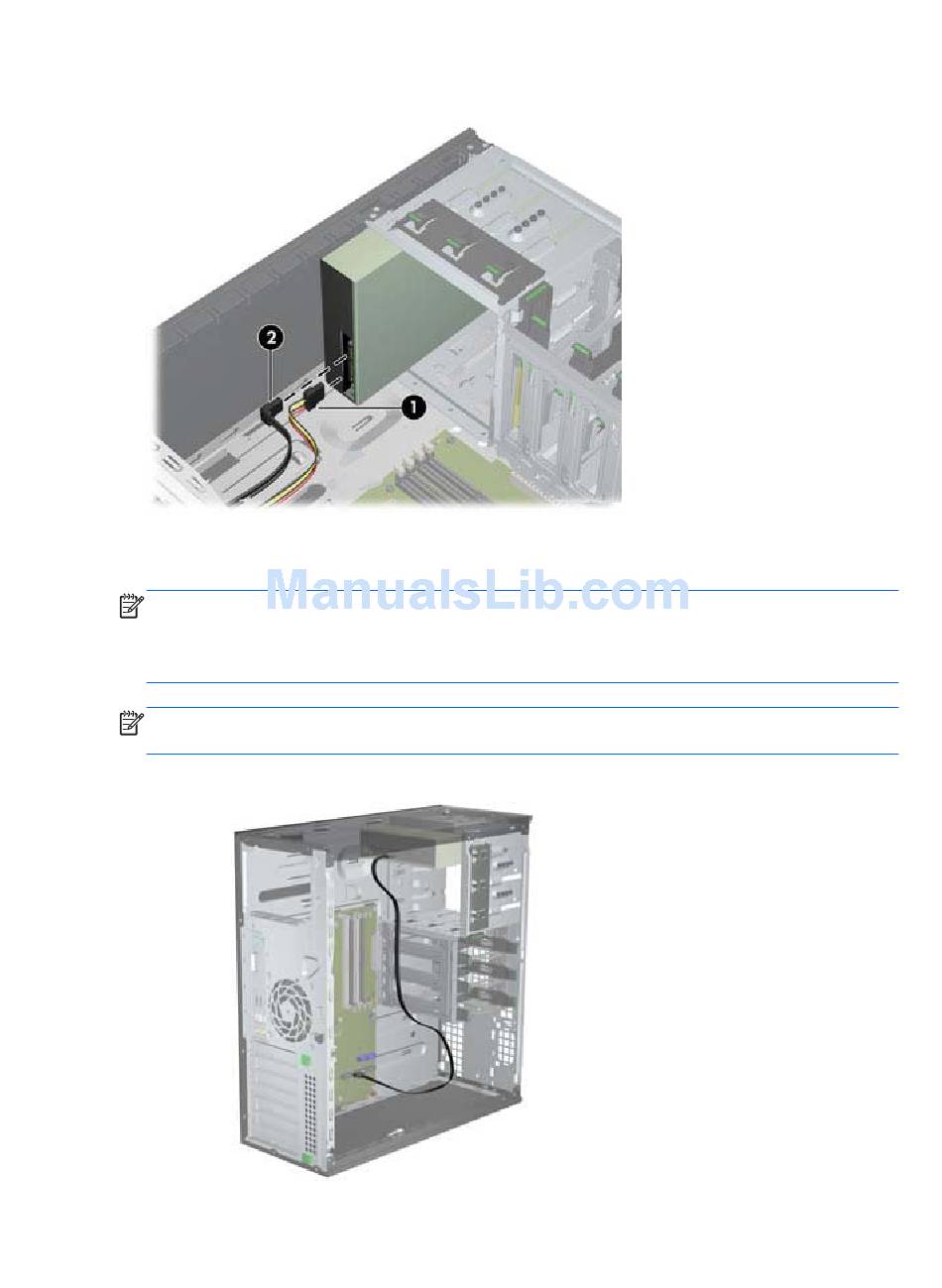

Connect the power cable (1) and data cables (2) to the drive as shown in the following figure.
Figure 5-13
8.
Connect the optical disk drive data cable to the appropriate SATA port on the system board as
shown in the following figures.
NOTE:
for primary hard disk drives, and port 5 only after all other ports have been used. (Refer to the
service label on the side access panel of your workstation to determine the location of the SATA
ports. These ports are also shown in Figure 5–1.)
NOTE:
eSATA compatible.
Figure 5-14
74
Chapter 5 Replacing components
Connecting power and data cables
HP recommends using SATA ports 3 and 4 for optical disk drives, SATA ports 0 and 1
Blue SATA ports (SATA0 and SATA1) support SATA Gen3 (6 Gbit). Only SATA5 is
Connecting power and data cables
ENWW
