Side access panel

Before accessing the internal components of the workstation, you must remove the side access panel.
This section describes how to remove and install the side access panel.

Removing the side access panel

WARNING!
before you remove the workstation side access panel.
To remove the side access panel:
1.
Disconnect power from the workstation (see
2.
Remove locks that are present such as a cable lock.
3.

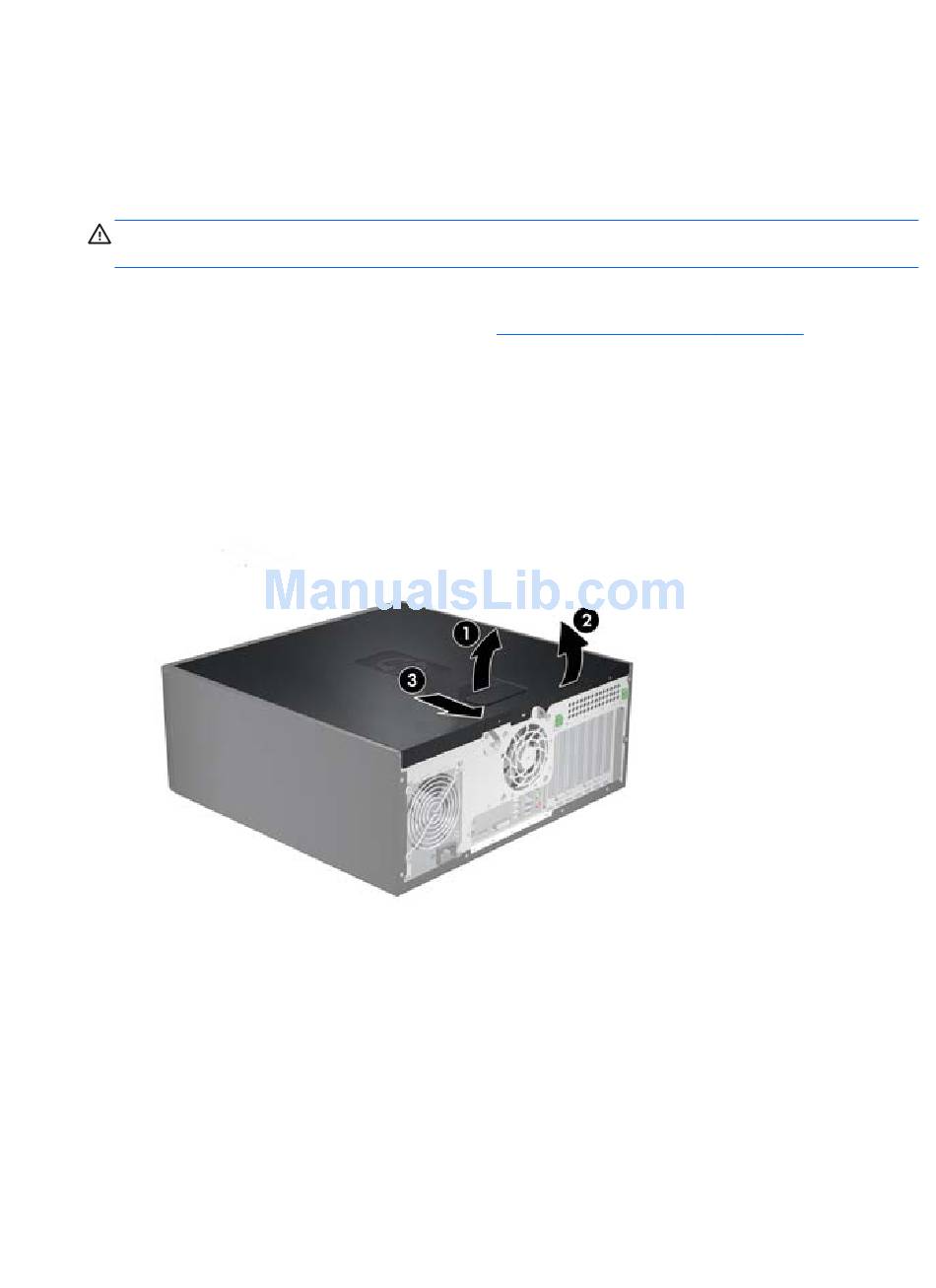

Pull up on the handle (1), rotate the panel away from the chassis (2), then slide the front edge of
the cover about 1.3 cm (1/2 inch) toward the rear of the system to remove it (3), as shown in the
following figure.
Figure 5-3

Installing the side access panel

To install the side access panel:
1.
Align the front edge of the side panel with the slot on the front of the chassis.
2.
Rotate the back of the side panel down onto the chassis, then press firmly until the latch engages.
ENWW
Power off the workstation and disconnect the power cord from the electrical outlet
Removing the side access panel
Predisassembly procedures on page
Removing and installing components
62).
65
