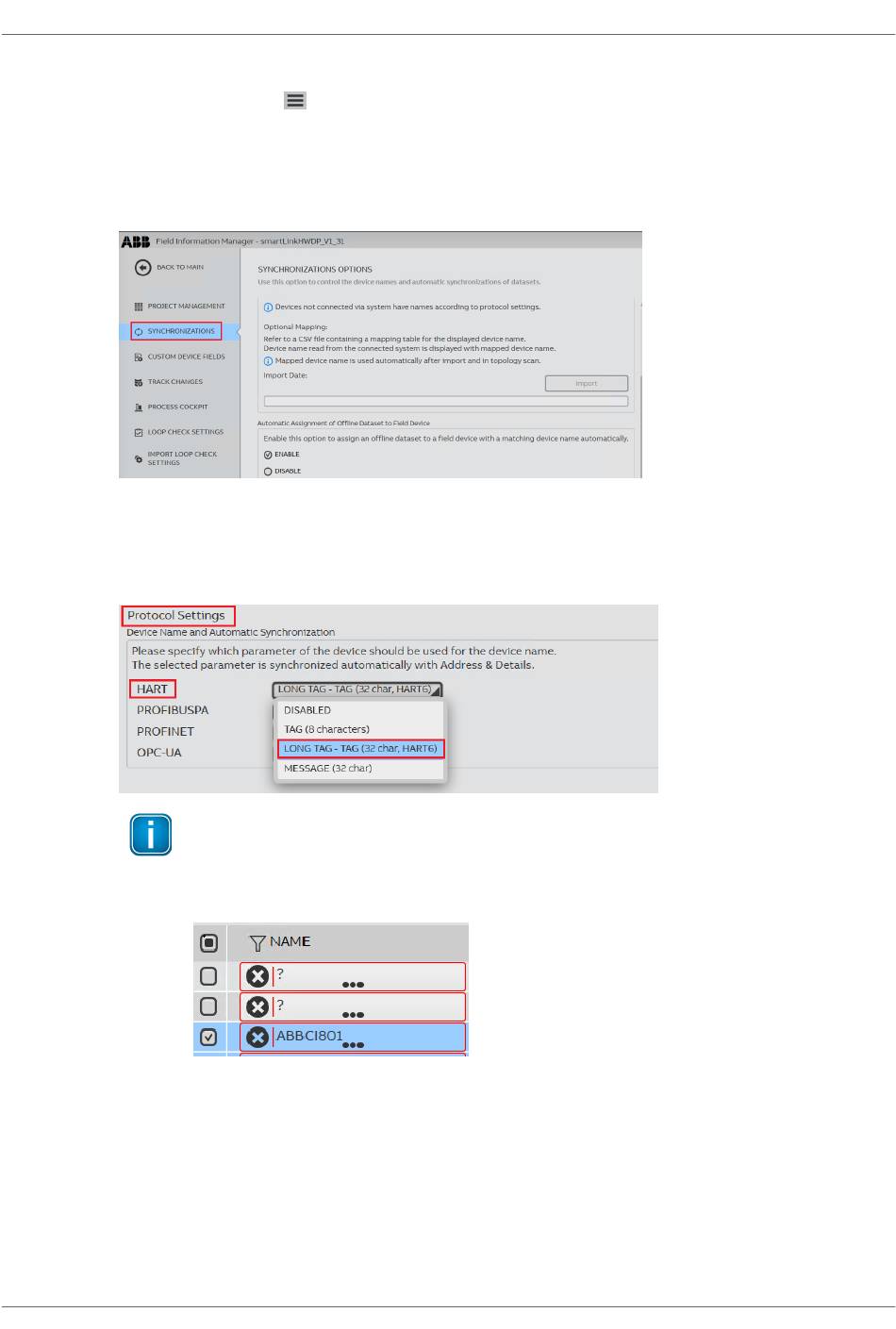

Softing smartLink HW-DP User Manual page 75

4.5.4 Selecting HART protocol settings
1. Click the burger icon
2. Select PROJECTS in the side menu.
The following window appears.
3. Select SYNCHRONIZATION in the side menu.
4. Scroll to the bottom of the window.
5. Under Protocol Settings, select a parameter from the dropdown list (TAG, LONG TAG, MESSAGE)
that should be used to name the HART devices in the FIM device list (see option LIST ALL
DEVICES). The default setting is the long tag.
6. When you have changed the default long tag setting to tag or message, click [Accept] to confirm.
Version EN-012025-1.32
in the top left corner.
Note
Long tags are only supported by HART devices type 6 onwards (HART 6, HART 7). If a
HART device does not support long tags, the device list in FIM shows the device name
with a question mark.
Chapter 4 - Working with smartLink HW-DP
75
