Summary of Contents for Softing uaGate SI
- Page 1 Quick Startup Guide uaGate SI Version: EN-092018-1.60 © Softing Industrial Automation GmbH...
- Page 2 The actual design of products may deviate from the information contained in the instructions if technical alterations and product improvements so require. Softing Industrial Automation GmbH Richard-Reitzner-Allee 6 85540 Haar / Germany http://data-intelligence.softing.com...
-
Page 3: Table Of Contents
Inserting an SD card ........................ 14 Resetting the device ........................ 15 Chapter 4 Configuration and login ................... 16 IP address information ........................ 16 IP connection to web server ........................ 16 Login ........................ 18 Completing your configuration ........................ 18 Copyright Softing Industrial Automation GmbH... - Page 4 Ta bl e of Contents Chapter 5 LED status indicators ................... 19 Chapter 6 Technical data ................... 21 Chapter 7 Declaration of the manufacturer ................... 22 Copyright Softing Industrial Automation GmbH...
-
Page 5: Chapter 1 About This Guide
This guide is intended for experienced operation personnel and network specialists responsible for configuring and maintaining field devices in process automation networks. Any person using a uaGate SI must have read and fully understood the safety requirements and working instructions in this guide. -
Page 6: Document Feedback
PDF file using the editing tool in Adobe Reader and email your feedback to info.idi@softing.com. If you prefer to write your feedback directly as an email, please include the following information with your comments: document name document version (as shown on cover page) page number Copyright Softing Industrial Automation GmbH... -
Page 7: Chapter 2 About Uagate Si

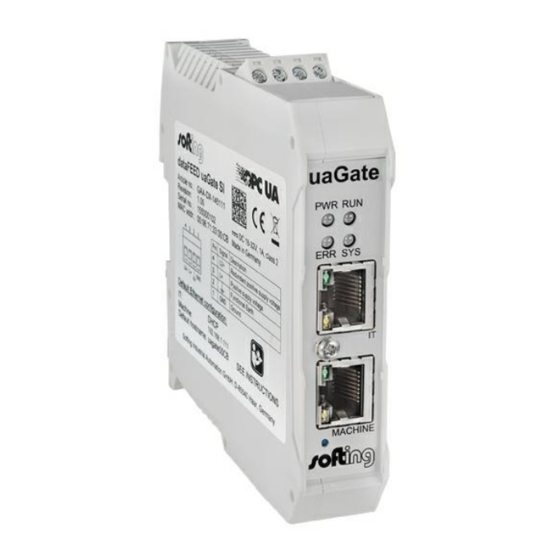

About uaGate SI Intended use The uaGate SI is a gateway for Siemens controllers. It has been designed to integrate OPC UA server functionality in new and existing plants for easy and secure data connectivity with higher-level management systems, such as ERP, MES or SCADA. With the MQTT... -
Page 8: Safety Precautions
Note Do not open the housing of the uaGate SI. It does not contain any parts that need to be maintained or repaired. In the event of a fault or defect, remove the device and return it to the vendor. Opening the device will void the warranty! -
Page 9: Chapter 3 Hardware Installation
Hardware installation Mounting and dismounting Note Make sure the uaGate SI is mounted in a manner that the power supply disconnecting device or interrupt facility can always be reached easily. Note Depending on the installation position, the maximum ambient operating temperature may differ. - Page 10 Ga te SI - Qui ck Sta rtup Gui de Mounting Hook the upper notch of the cut-out on the back of the uaGate SI into a 35 mm DIN rail. Press the uaGate SI down towards the rail until it slides into place over the lip of the locking bar.
-
Page 11: Connecting The Power Supply
Description Redundant positive supply voltage Positive supply voltage Functional Earth Ground CAUTION The Functional Earth (FE) connection of the device has to be connected at low inductance with the Protective Earth (PE) of the system. Copyright Softing Industrial Automation GmbH... -
Page 12: Connecting To The Network
Ga te SI - Qui ck Sta rtup Gui de Connecting to the network The uaGate SI is equipped with two 10/100 Base-T Ethernet interface receptacle (RJ45). The ports correspond to the IEEE 802.3: IT for connecting to the it network (the upper part in the diagram) -
Page 13: Powering Up The Device
Cha pter 3 - Ha rdwa re i ns ta l l a ti on Using a single common network If there is only one (logical) network, it is recommended to connect the uaGate SI only via the Ethernet interface of the IT side with the network. In this case, the Ethernet interface of the machine side should be disabled by setting the IP address to 0.0.0.0 and the subnet... -
Page 14: Inserting An Sd Card
The micro SD card is not included in the delivery. When selecting an SD card bear in mind the range of the operating temperature of the uaGate SI. The storage capacity of the micro SD card may not exceed 32GB. -
Page 15: Resetting The Device
Cha pter 3 - Ha rdwa re i ns ta l l a ti on Resetting the device If the uaGate SI cannot be reached in the event of a configuration error, the device can be reset to default factory settings by pressing the reset button at the bottom of the front panel. -
Page 16: Chapter 4 Configuration And Login
DHCP. Depending on the configuration of your local DHCP- and DNS-servers it is possible to reach the device by this host name in your network. The uaGate SI supports the network connection protocol UPnP (Universal Plug And Play) for Windows. MAC, Linux und Android use Avahi/Zeroconf, the Zero Configuration network implementation protocol which identifies the gateway as an HTTPs server. - Page 17 <hostname>. (*) 4. The login window appears (*) The uaGate SI support the HTTPs protocol, which provide a secure and encrypted transfer of sensitive data such as passwords so the data cannot be read by another network user. In addition, HTTPs uses a certificate to identify the server. At Softing we use the OPC UA server certificate that has been generated before the last reboot.
-
Page 18: Login
Completing your configuration To complete your configuration, you need to configure: time settings IT settings machine settings including symbol import For detailed information see the online help in the web server application. Copyright Softing Industrial Automation GmbH... - Page 19 Cha pter 5 - LED s ta tus i ndi ca tors LED status indicators The uaGate SI is equipped with four LEDs on its front side: power supply (permanently green if the 24V DC power supply is ok) running (in operation)
- Page 20 If you reset the device using the reset button on the front plate or by clicking [Reboot] in Service Settings - Reset - Gateway restart in the web server interface, the LEDs are shortly switched off. Copyright Softing Industrial Automation GmbH...
- Page 21 IT Network / Cloud OPC UA (Server, 20,000 items in total), MQTT Connectivity (Publisher, up to 1,000 topics) Industrial Network OPC UA, Siemens S7-300, S7-400, S7-1200, S7-1500 Connectivity Supported Engineering Tools SIMATIC Step 7, TIA Portal Copyright Softing Industrial Automation GmbH...
- Page 22 A Declaration of Conformity in compliance with the above standards has been made and can be requested from Softing Industrial Automation. Copyright Softing Industrial Automation GmbH...
- Page 23 Electrical and electronic equipment must be disposed of separately from normal waste at the end of its operational lifetime. Packaging material and worn components shall be disposed of according to the regulations applicable in the country of installation. Copyright Softing Industrial Automation GmbH...
- Page 24 Softing Industrial Automation GmbH Richard-Reitzner-Allee 6 + 49 89 45 656-340 85540 Haar / Germany + 49 89 45 656-488 http://data-intelligence.softing.com info.idi@softing.com...
