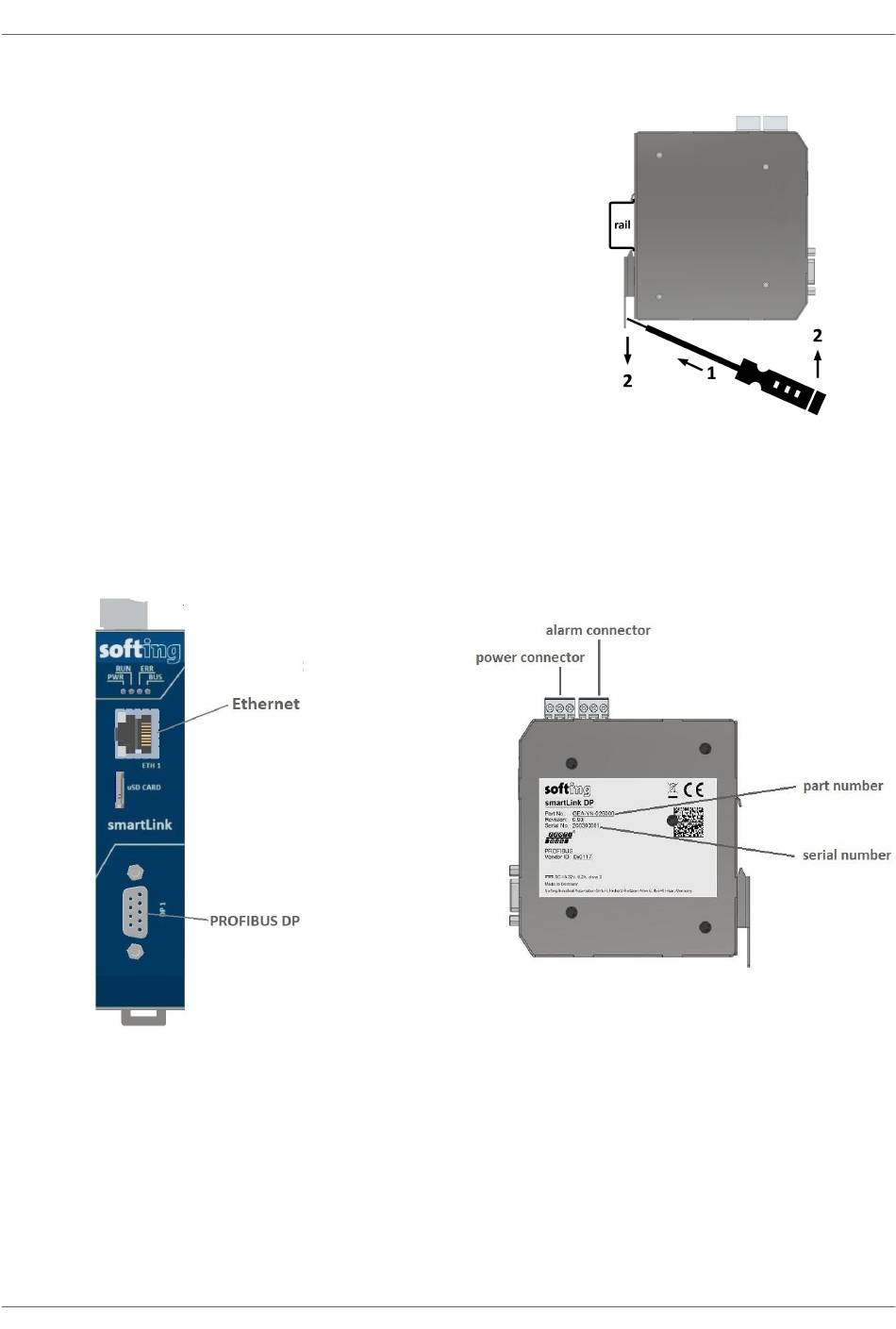

Dismounting
1. Slide a screwdriver diagonally under the housing into the
locking bar.
2. Leverage the screwdriver upwards, pull the locking bar
down, move the device up and off the rail.
3.1.2 Connection diagrams
The following diagram shows the interfaces of the smartLink HW-DP. The device has one 10/100/1000
Base-T Ethernet port (ETH1) and one PROFIBUS DP port (DP 1) for data communication.
The connectors on the top are reserved for the supply voltage and alarm output. The uSD card slot is
currently not supported and there deactivated in the current version.
3.1.3 PROFIBUS DP connector
Below you see the front view of the PROFIBUS DP connector (female D-Sub 9) and the function of the
available signals. The connector pins are assigned according to the international standard IEC 61158-2
(Industrial communication networks - Fieldbus specifications - Part 2: Physical layer specification and
service definition).
