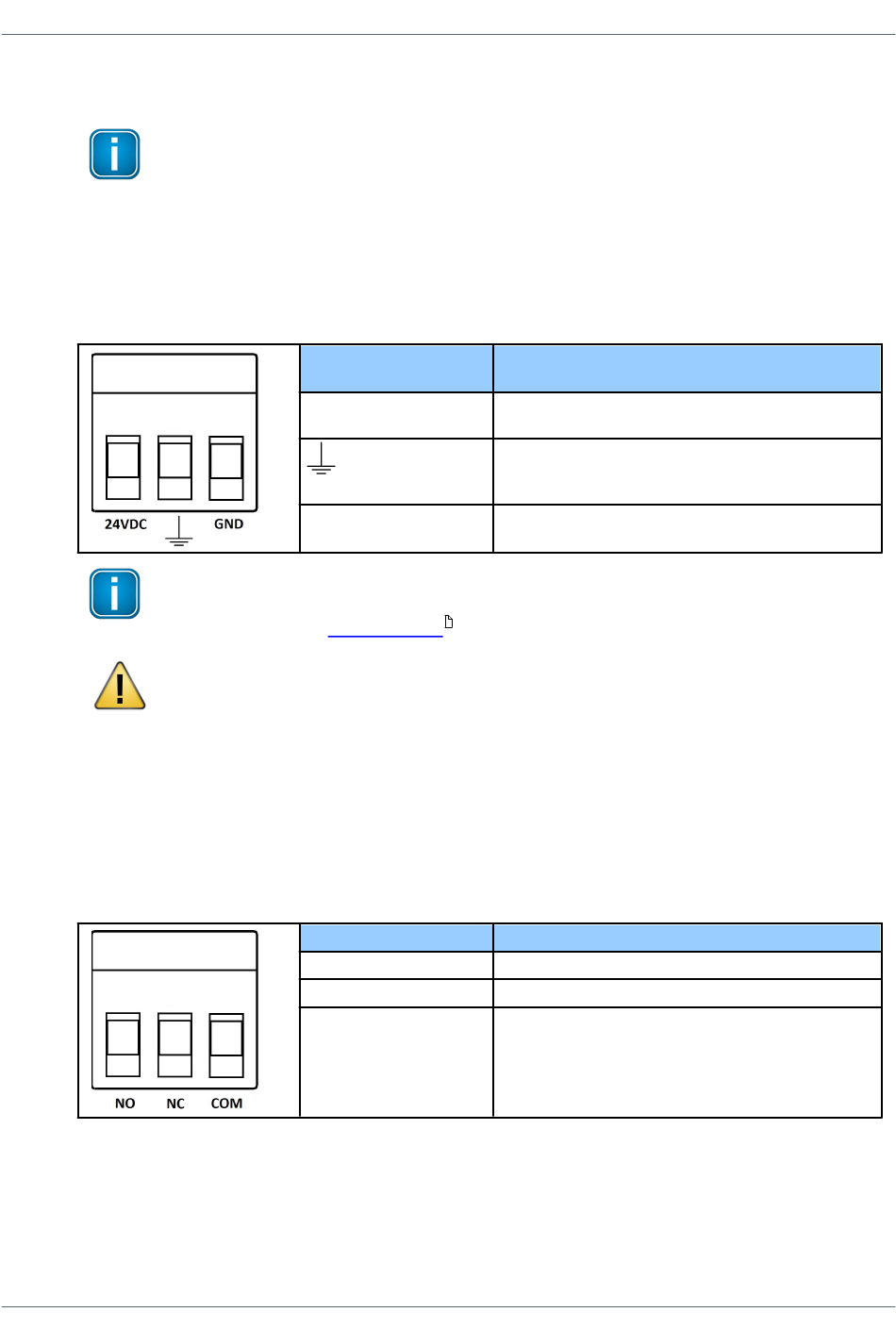

3.1.4 Power and alarm connectors
Connect the smartLink HW-DP to a 24 V DC power supply.
Power connector
The supply voltage (18 VDC .... 32 VDC) is connected by a 3-pole terminal block. The power supply is
connected to the plug connector via flexible wires with a cross section of 0.75 to 1.5 mm². The ground
connection wire must have a cross section of 1.5 mm².
Alarm connector
The alarm output has a voltage range of 0-32V. The contact can be operated with a maximum current
of 0.5A. Connect the positive supply voltage with the COM terminal to avoid damage when the
connector accidentally mixed up.
Version EN-012025-1.32
Note
smartLink HW-DP is intended for connection to a SELV/PELV circuitry only.
Signal
24VDC
GND
Note
smartLink HW-DP offers reverse polarity protection in the specified DC supply voltage
range (see Chapter Technical Data
CAUTION
The Functional Earth (FE) connection of the device has to be connected at low inductance
with the Protective Earth (PE) of the system.
Signal
NO
NC
COM
Description
24 V DC power supply
Functional earth
Ground
8
).
Description
Normally Open
Normally Closed
Common Terminal
