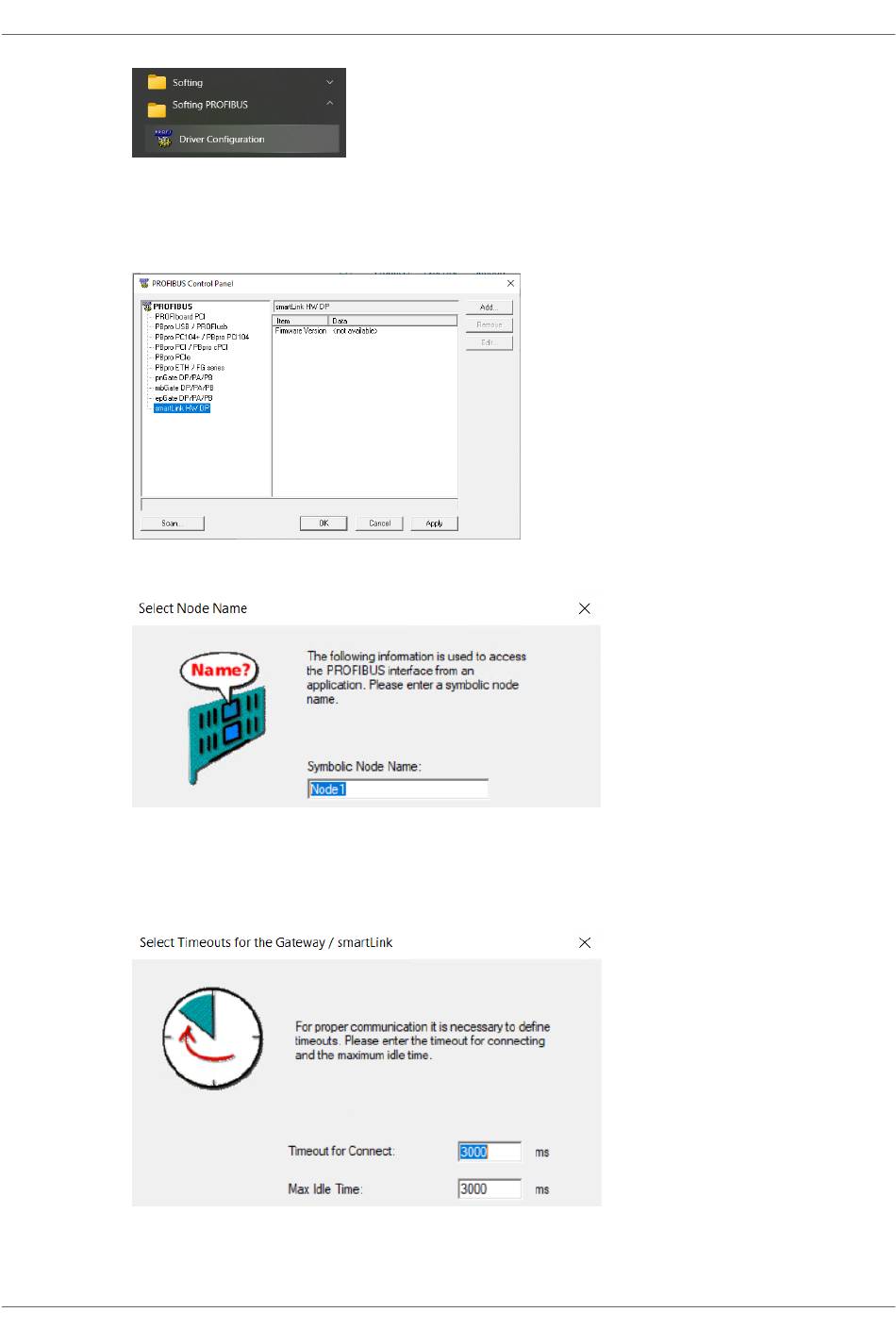

Softing smartLink HW-DP User Manual page 64

smartLink HW-DP - User Guide
3. Allow Windows User Account Control (UAC) to modify settings.
The PROFIBUS Control Panel is opened.
4. Select the smartLink HW-DP and click [Add...].
5. Enter a symbolic name in the new window and click [Next].
6. Enter a smartLink HW-DP name or IP address or name and click [Next].
7. If required, change the timeout settings (Timeout for Connect and Max Idle Time).
In most cases default settings can be used.
64
Version EN-012025-1.32
