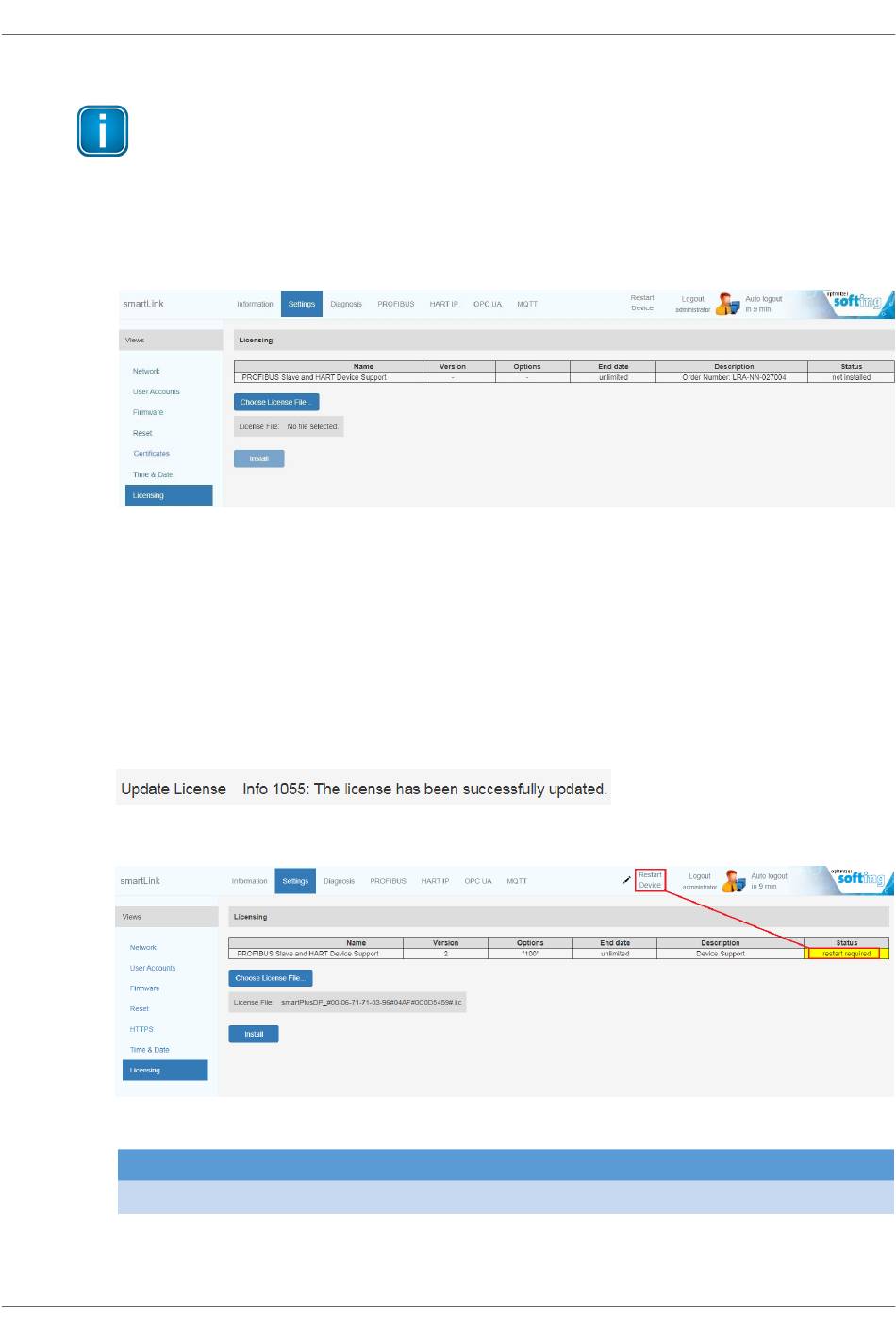

Softing smartLink HW-DP User Manual page 40

smartLink HW-DP - User Guide
How to install a license
To install a license file follow these steps:
1. Select Settings
2. Click the [Choose License File] button.
Windows Explorer will open.
3. Go to the directory to which you have saved the file.
4. Select the license file and click [Open] in Windows Explorer.
The license file is now shown under the [Choose License File] button.
5. Click the [Install] button.
When the license has been installed, the following message appears at the bottom of the window.
In the Licensing window, the table entries for HART Device Support will have changed.
Parameter
Version
Options
40
Note
You will only need a license if you want to access more than one HART device over more
than one PROFIBUS remote I/O.
à
Licensing in the side bar navigation.
Meaning
A support number (for internal use only).
Total number of supported HART devices.
Version EN-012025-1.32
