User Guide
NETLink S7-Compact
Version: EN-062023-1.00
© Softing Industrial Automation GmbH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NETLink S7-Compact and is the answer not in the manual?

Questions and answers

Related Manuals for Softing NETLink S7-Compact

Summary of Contents for Softing NETLink S7-Compact

  • Page 1 User Guide NETLink S7-Compact Version: EN-062023-1.00 © Softing Industrial Automation GmbH...
  • Page 2 . For deta i l s s ee https ://opens ource.s ofti ng.com/ If you a re i nteres ted i n our s ource modi fi ca ti ons a nd s ources us ed, pl ea s e conta ct: i nfo@s ofti ng.com Softing Industrial Automation GmbH Richard-Reitzner-Allee 6 85540 Haar / Germany https://industrial.softing.com...

  • Page 3: Table Of Contents

    Adding the interface to the PG/PC interface 4.1.2 Selecting the required interface parameterization ......................17 4.1.3 Chapter 5 Configuration ..................18 Configuration via the NETLink S7-Compact driver ......................18 ......................18 Setting the IP address of your PC 5.1.1 Bus settings ......................20 5.1.2 5.1.2.1...
  • Page 4 Table of Contents Operation without the DHCP 5.1.3.3 ..................... 29 5.1.3.4 DHCP ..................... 29 Additional features 5.1.3.5 ..................... 30 ......................31 Options of the driver 5.1.4 Language setting of the display elements 5.1.4.1 ..................... 31 5.1.4.2 Version information ..................... 31 Diagnostics ......................

  • Page 5: About This Guide

    About this guide Read me first Please read this guide carefully before using the device to ensure safe and proper use. Softing does not assume any liability for damages due to improper installation or operation of this product. This document is not warranted to be error-free. The information contained in this document is subject to change without prior notice.

  • Page 6: Document History

    You can write your comments and suggestions to the PDF file using the editing tool in Adobe Reader and email your feedback to support.automation@softing.com. If you prefer to write your feedback directly as an email, please include the following information with your comments: §...

  • Page 7: About Netlink S7-Compact

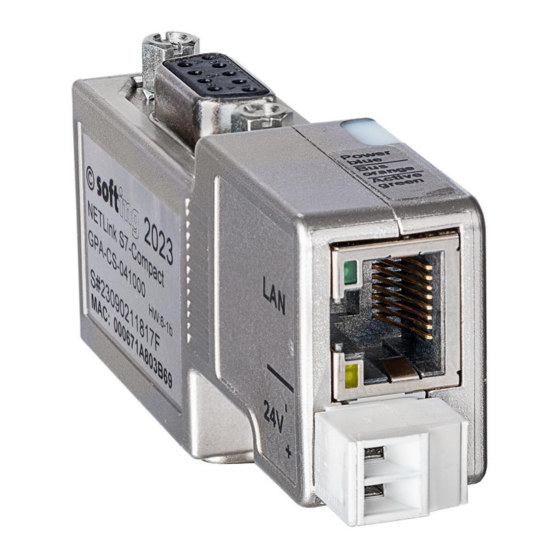

    NETLink S7-Compact gateway. The NETLink S7-Compact has the shape of a PROFIBUS connector with a PG female connector and it is plugged directly into the MPI/PPI/PROFIBUS interface of the automation system. Because it is active, no spur line is created that could interfere with the bus.

  • Page 8: Intended Use

    NETLink S7-Compact - User Guide Intended use The NETLink S7-Compact must only be used as a communication and signaling system. Any other use is deemed non-intended use. NETLink S7-Compact Gateways are exclusively for use with a S7-200 and S7-300/S7-400 programmable controller from Siemens.

  • Page 9: Supported Features

    Chapter 2 - About NETLink S7-Compact Supported features NETLink S7-Compact supports the following features: § direct communication with one or several controllers in any kind of TCP network structure § support of up to 16 simultaneous connections § use of standard TCP/IP for communication within plant or company networks and with the Internet §...

  • Page 10: Led Status Indicators

    NETLink S7-Compact - User Guide General NETLink S7-Compact Gateway is only used as part of a complete system. For that reason, the configuring engineer, user, and installing technician must observe the standards, safety and accident prevention rules applicable in the particular application. The operator of the automation system is responsible for observing these rules.
  • Page 11 Activity on the network BLINK BLINK Activity on the network Operating status LEDs on the NETLink S7-Compact These LEDs are located on the front of the housing behind a white inspection window. LED status for operating Power LED Bus LED...

  • Page 12: Installation

    German standard TRBS 1203 - Technical Regulations for Operational Safety). The definition of terms can be found in IEC 60079-17. Mounting Plug NETLink S7-Compact directly into the SUB D female connector of the PROFIBUS station. Fix it by tightening the integrated hexagon-head housing screws. Dismounting Loosen the integrated hexagon-head housing screws.

  • Page 13: Connections

    Further bus nodes for diagnostic devices can be connected to the integrated PG female connector. Only CAT5-TCP cables with an RJ45 connector can be connected to the NETLink S7-Compact housing. No further outlets, for example, PROFIBUS cable, can be installed on the device. Therefore no termination is possible on the connector housing and the ON/OFF switch for this is not been incorporated.

  • Page 14: Connecting To The Network

    NETLink S7-Compact - User Guide Connecting to the network 1. Connect the NETLink S7-Compact the network of your PG/PC (LAN card) to the RJ45 LAN socket of the NETLink S7-Compact adapter using and Ethernet cable. 2. Connect NETLink S7-Compact to the MPI or PROFIBUS interface of your automation system.

  • Page 15: Software Installation

    PC via TCP/IP. Installation of the driver software The NETLink S7-Compact is inserted in the PG/PC interface of an existing Simatic application and can then be used from most Simatic engineering tools (STEP7, ProTool, WinCC, etc.). Access is possible to any controllers of the Simatic S7-200, S7-300, or S7-400 series via a NETLink S7- Compact.
  • Page 16 NETLink S7-Compact - User Guide This opens the Install/uninstall interface dialog box. After you have selected the entry NETLink-S7-NET PRO family from the left-hand list, click the [Install-->] button. The NETLink-S7-NET PRO has now been included in the selection list so that it is available for selection in future.

  • Page 17: Selecting The Required Interface Parameterization

    The selection list for the interface parameter sets now contains an additional three items for NETLink®. All relevant settings of a NETLink S7-Compact driver can be made via the [Properties] access field. With the button [Diagnostics...] it is possible to show the nodes connected to the bus and the parameters the bus is working with.

  • Page 18: Configuration

    5.1.1 Setting the IP address of your PC Before you can operate the connected NETLink S7-Compact you will have to change the default IP address of the NETLink S7-Compact so that your PC can communicate with the device. The following steps apply to Windows 10:...
  • Page 19 Select Use the following IP address and enter a specific IP address and Subnet mask. Note NETLink S7-Compact is supplied with the IP address 192.168.4.49. This means that you will have to use the same address range for your computer.

  • Page 20: Bus Settings

    The bus configuration is passed to the NETLink S7-Compact during the runtime of the NETLink S7- Compact driver and is not stored in the device.

  • Page 21: Profibus Configuration

    The network settings can be adapted manually if the checkmark next to Automatic Baud Rate Detection is removed. This is usually only necessary if the NETLink S7-Compact fails to sign onto the bus system automatically (can happen with passive bus participant).
  • Page 22 NETLink S7-Compact - User Guide In this case, the timeout value should be increased correspondingly. Profile: § Under PROFIBUS, there are usually the profiles DP, Standard und User defined. § The profile must be selected that is already used in the programmable controller.
  • Page 23 Chapter 5 - Configuration Under PROFIBUS, please note that the auto baud function works best if the Cyclic distribution of the bus parameters function is activated in the programmable controller used. Note Note regarding the Ttr (Target Token Rotation Time) parameter: Make sure that the value for the Ttr parameter is not too small.

  • Page 24: Ppi Configuration

    Parameterization via the NETLink PRO configuration tool (see Section The Tool: NETLink Pro Family Configuration § Parameterization via the web interface of the NETLink S7-Compact Gateway (see Section Status If a NETLink S7-Compact is configured via the NETLink S7-Compact driver, the following points must be considered: Version EN-062023-1.00...

  • Page 25: Creating A Station

    Chapter 5 - Configuration If the NETLink S7-Compact is active on the bus when reparameterization is required (e.g. a variable table or block is being viewed), reparameterization is not performed. The subsequent reset would interrupt the NETLink S7-Compact link. §...
  • Page 26 NETLink S7-Compact - User Guide To able to access a NETLink S7-Compact with the NETLink S7-Compact driver, a station must be set up first. This station is virtually and is not stored in the NETLink S7-Compact Gateway hardware – it permits easier differentiation if several NETLink S7-Compact devices are used.
  • Page 27 If you do not want the name that is stored in the NETLink S7-Compact to be the same as the station name, you can overwrite the station name (e.g. replacing the name Softing_test with the name Workshop in the example below).

  • Page 28: Setting Tcp Parameters

    NETLink S7-Compact - User Guide This completes parameterization of the driver. It may now be necessary to adapt the NETLink S7-Compact Gateway to the situation in the existing TCP/IP network. 5.1.3.2 Setting TCP parameters To change the TCP parameters, select the station in question and open the following dialog box with the [Edit] button.

  • Page 29: Operation Without The Dhcp

    Operation without the DHCP If a NETLink S7-Compact is used in a network without a DHCP server (or you want the NETLink S7- Compact to work with the same IP address on the network despite the presence of a DHCP server) the required IP parameters are stored in the input forms for Static parameters.

  • Page 30: Additional Features

    IP address from the DHCP every time it is switched on. The system administrator responsible for the DHCP server can counter this informing the DHCP server of the MAC address of the NETLink S7-Compact device. However, this is additional work for the system administrator.

  • Page 31: Options Of The Driver

    Chapter 5 - Configuration 5.1.4 Options of the driver Under the options of the NETLink-S7-NET driver, it is possible to set the language of the output and help texts of the driver. It is also possible to read out the version numbers of the driver files used. It is also possible to read out the version numbers of the driver files used.

  • Page 32: Bus Members

    NETLink S7-Compact - User Guide 5.1.5.1 Bus members A list of all available nodes at the bus will be generated by clicking the button [Read]. With activating the option Read MLFB number the order numbers of all devices supporting this function will be displayed too.
  • Page 33 Chapter 5 - Configuration Version EN-062023-1.00...

  • Page 34: The Tool: Netlink Pro Configuration

    NETLink S7-Compact - User Guide The Tool: NETLink PRO Configuration If a Simatic Engineering Tool is present on the configuration computer that installed the PG/PC interface, it is possible to configure a NETLink S7-Compact both via the integrated web interface (see section Status ) and with the configuration tool.
  • Page 35 Chapter 6 - The Tool: NETLink PRO Configuration An extended function enables direct parameterization across network boundaries. To do this, activate the radio button and enter the known IP address of the NETLink® (the example includes the optional address of the port – separated by a colon) in the empty field. The corresponding configuration menu then opens when [Parameterize...] is clicked.

  • Page 36: Rfc1006-Function (S7-Tcp/Ip)

    Because many visualization system manufacturers have implemented this protocol to implement connections with CPs from Siemens (e.g. CP343 or CP443), a NETLink S7-Compact with RFC1006 is an alternative to communication with these visualization systems. The RFC1006 functionality of the NETLink S7-Compact Gateway is also supported by S7-200 systems.

  • Page 37: Cpu Adressing With Rack/Slot And Tsap

    NETLink S7-Compact unit. To use this feature, you will have to enter the rack and slot numbers for the target address into the relevant RFC 1006 driver on the SCADA/HMI application you are using.
  • Page 38 NETLink S7-Compact - User Guide Section Address conversion table includes a table that shows addresses converted into rack and slot values. There are many parameter configuration tools that do not have fields with the names Rack and Slot. Instead, these tools usually have an input field called Remote TSAP that is two bytes long and needs a hex format value.

  • Page 39: Bus Parameters In Single Master Operation

    Bus parameters in Single Master Operation If the NETLink S7-Compact Gateway is connected to a bus system on which no other master is active, the NETLink S7-Compact generates the token itself. This feature can be enabled on the web interface under Basic Configuration.

  • Page 40: Addressing With Routing Over Rfc

    Note Incorrect bus parameters can interfere with the bus considerably! Please note that under unfavorable circumstances an incorrectly parameterized NETLink S7-Compact Gateway can interfere with the bus to the extent that regular bus operation is no longer possible. Addressing with Routing over RFC Since the RFC 1006 protocol normally cannot be used to transmit PLC routing information (MPI<-...

  • Page 41: Rfc Routing Over Cp With Tsap

    Chapter 8 - Bus parameters in Single Master Operation The rack/slot address for the station that will be used to communicate on the rack must be configured in the communication software (in the above example: R/S = 0/3 for CPU 1 and R/S = 0/5 for CPU 2) 8.2.2 RFC Routing over CP with TSAP...
  • Page 42 Note If the CP modules are not sending the required bus parameter frames, the Single Master function must be enabled on the NETLink S7-Compact web interface. In addition, the corresponding parameters in the communications software (SCADA application) need to be configured accordingly. The Remote TSAP -> Slot numbers must match those of the corresponding CP address (in the example above: 5, 6, an 7).

  • Page 43: Web Interface

    Chapter 9 - Web interface Web interface Prerequisites The web interface of the NETLink S7-Compact can be opened with any standard browser (tested with Firefox and Chrome). Opening the web interface § Open your Internet browser and enter the IP address of your NETLink S7-Compact: http://192.

  • Page 44: Working With The Web Interface

    The values shown on this page are all volatile! Because the NETLink S7-Compact is also active as a single master, it is also possible to search for passive stations only. The search is started by clicking [Search Passive Stations]. The updated status of verified stations is then displayed.

  • Page 45: Basic Configuration

    Before the parameters are actually saved, you will be shown all the changes you made the way they will be stored in the NETLink S7-Compact unit’s non-volatile memory (after you click on the [Store] button). After clicking on the [Store] button, the NETLink S7-Compact unit will be automatically restarted so that the configuration you set up can take effect.

  • Page 46: Security

    This assumes, of course, that the access data for the NETLink S7-Compact web interface are secure. Attention: To prevent their use by unauthorized persons, any proxy servers that exist in company networks may not be entered in the white list. If so, safe use of a NETLink S7-Compact Gateway is not guaranteed.

  • Page 47: Observe Variables

    Note Rebooting can take up to 15 seconds. A NETLink S7-Compact can be started both locally and remotely via the security interface. This can be done by clicking the [Device Reboot] button. Note Every submenu features a Help button that can be used to access descriptions of relevant details and functions.

  • Page 48: Troubleshooting

    NETLink S7-Compact - User Guide Troubleshooting Please refer to the following link for FAQ: Industrial Gateways FAQs Version EN-062023-1.00...

  • Page 49: Appendix

    Chapter 11 - Appendix Appendix 11.1 Assignment of the Ethernet Interface (host interface) Connection Signal Meaning Transmit data Transmit data Receive data Not in use Not in use Receive data Not in use Not in use The maximum cable length between two TCP interfaces is 100 meters according to IEEE802. If distances greater than 100 meters have to be covered, the use of switches or hubs is recommended.
  • Page 50 NETLink S7-Compact - User Guide 0206 0226 0246 0266 0207 0227 0247 0267 0208 0228 0248 0268 0209 0229 0249 0269 020A 022A 024A 026A 020B 022B 024B 026B 020C 022C 024C 026C 020D 022D 024D 026D 020E 022E 024E...
  • Page 51 Chapter 11 - Appendix 021F 023F 025F Version EN-062023-1.00...

  • Page 52: Declaration Of Conformity

    The CE marking indicates conformity with the above standards in a Declaration of Conformity which can be requested from Softing Industrial Automation GmbH. RoHS This product is compliant the Restriction of Hazardous Substances under Directive 2002/95/EC.

  • Page 53: Glossary

    Chapter 13 - Glossary Glossary Terms & Definition Abbreviations Auto negotiation describes a function that automatically recognizes and configures communication partners in the network DHCP Dynamic Host Configuration Protocol Ground Internet Protocol Human-Machine Interface denotes the interface between the human op- erator and a system through which the operator can operate the system or intervene in the process Highest station address that is polled...
  • Page 54 NETLink S7-Compact - User Guide Version EN-062023-1.00...
