smartLink HW-DP - User Guide
16

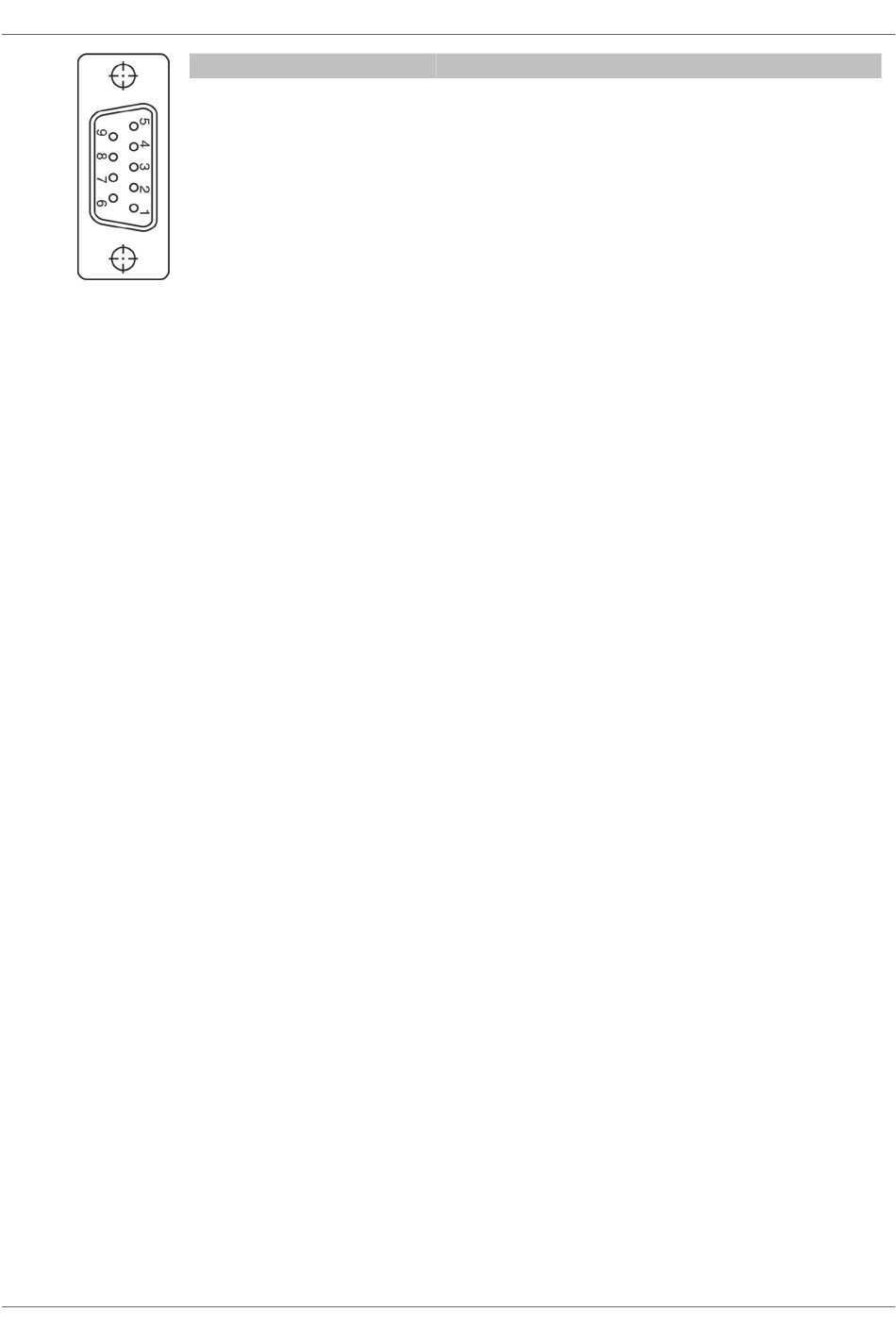

Pin Signal
1 -
2 -
3 RxD/TxD-P
4 CNTR-P
5 DGND
6 VP
7 -
8 RxD/TxD-N
9 -
Description
optional - not in use
optional - not in use
receive / transmit data (+)
control signal to repeater (+)
data ground
voltage plus (+5Vdc for terminating resistors)
optinal - not in use
receive / transmit data (-)
optinal - not in use
