Product Information

Internal Components

Internal Components
This section describes the internal components of the J5000 and J7000 workstations. The
first subsection describes the internal components that are located on the left side as you
are facing the front of the workstation. The second subsection then describes the internal
components on the right side of the workstation.
For instructions on how to remove the workstation's top and side panels in order to access
these internal components, as well as instructions on how to remove and replace these
internal components to service them, see Chapter 4.

Internal Components on the Left Side

As you face the J5000 and J7000 workstation, the internal components on the left side of
the workstations include the system board and three system board fans. The J7000 also
has two DC/DC converter units mounted on its system board, as well as two air dividers.
Figures 1-12 and 1-13 show the internal components located on the left side of the J5000
and the J7000 workstation, respectively. (In both figures, the left side panels have been
removed from the workstations so that the internal components can be viewed.) As you can
see by comparing these two figures, the system boards in the J5000 and J7000 are
different in the number and placement of their PA-8500 microprocessors, the number of
their memory slots, and the fact that the J7000 has two DC/DC converter units, where the
J5000 has none.

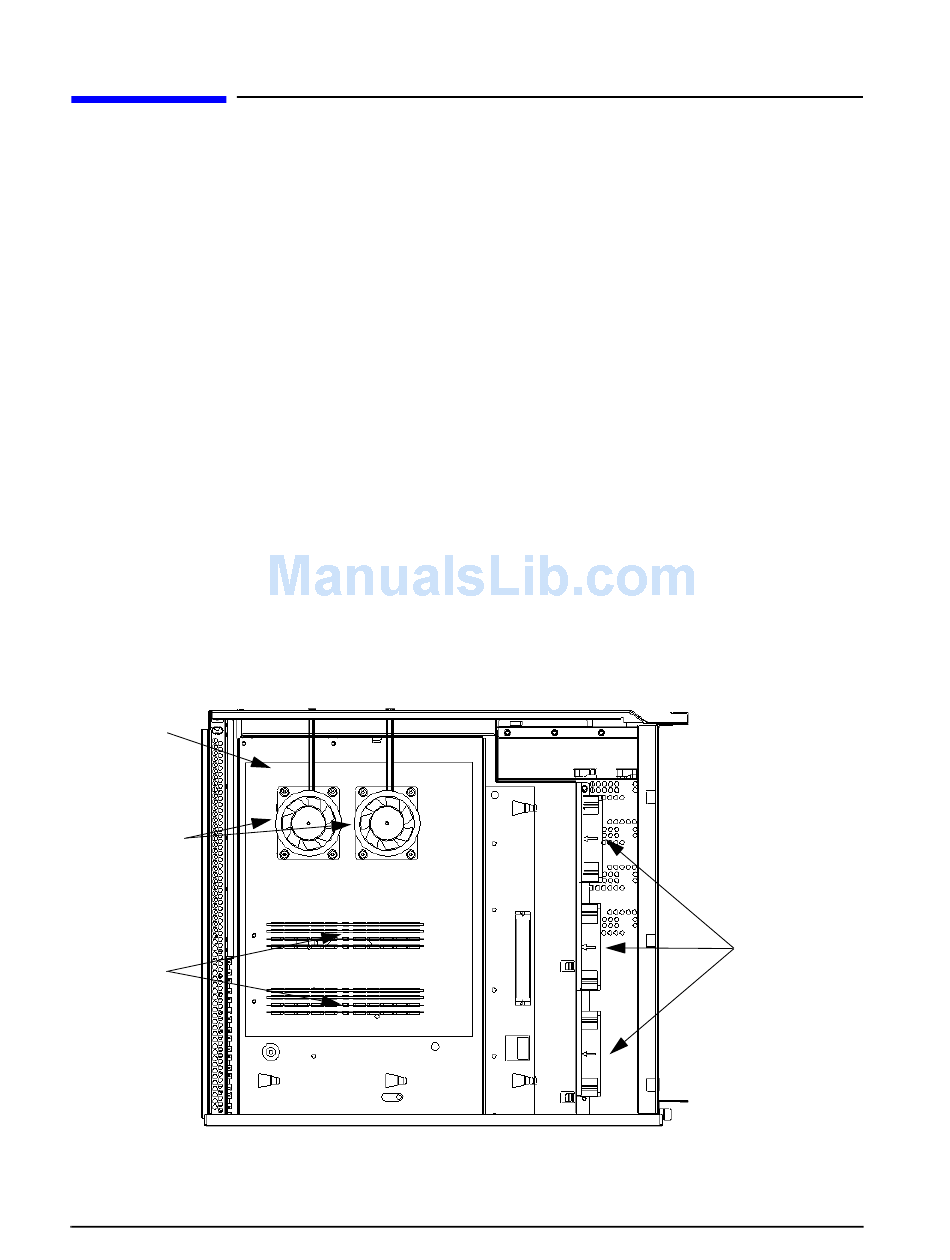

Figure 1-12. Internal Components on the Left Side of the J5000

J5000
system board
Two PA-8500
microprocessors
with turbocoolers
Eight
memory
slots
30
Three system
board fans
Chapter 1
