Field Replaceable Units (FRUs)
FRU Removal and Replacement
7. Replace the bus bar shield by aligning the edge with the power supply edge while
inserting the hooks into the slots. Rock the bus bar shield into place by pressing down
towards the chassis floor. Figure 4-47 shows the bus bar shield correctly installed.

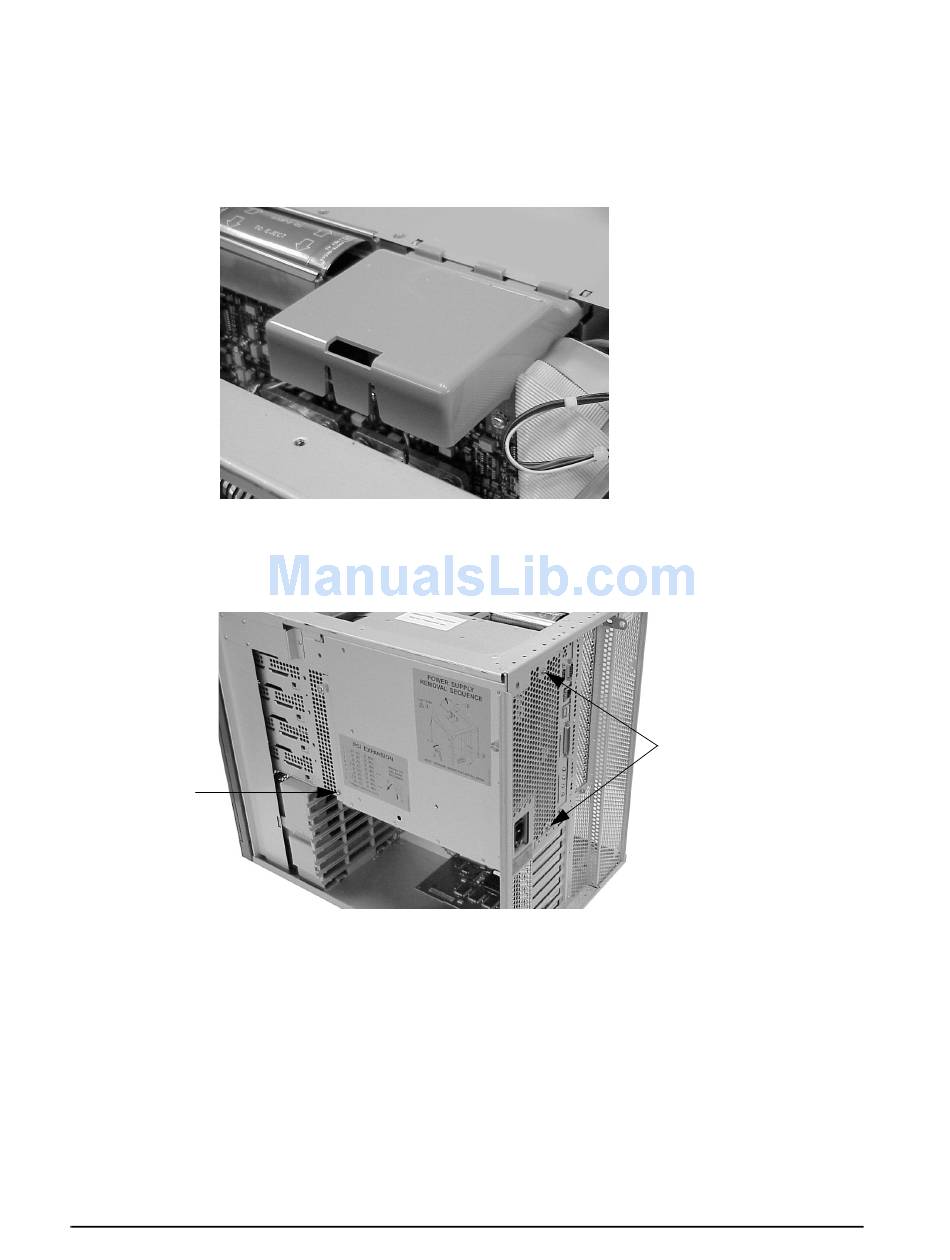

Figure 4-47. Bus Bar Shield Installed
8. Insert and tighten the front, lower-left T-15 Torx screw on the power supply and the two
rear panel T-15 Torx screws to secure the power supply, as shown in Figure 4-48.
Figure 4-48. T-15 Torx Screws for Securing the Power Supply
T-15 Torx screw
9. Replace the PCI retainer clip.
10. Replace the top panel and the right side panel of the workstation.
132
T-15 Torx screws
Chapter 4
