Field Replaceable Units (FRUs)
FRU Removal and Replacement
Floppy Disk Drive (Optional)
This subsection describes how to remove and replace the optional floppy disk drive.
NOTE The bracket assembly and drive bay may be used for either one DDS-3 tape
drive, or one floppy disk drive.
Removing a Floppy Disk Drive:
1. Remove the front panel bezel from the workstation.
2. Remove the two T-15 Torx screws securing the floppy disk drive to the front panel of the
workstation chassis.
3. Slide the DDS-3 tape/floppy disk drive bracket assembly out of the chassis guide rails.
Disconnect the the power and ribbon cables from the floppy disk drive.
4. To remove the floppy disk drive from the bracket, remove the four T-10 Torx screws (two
on each side) securing the floppy disk drive to the bracket.
Replacing a Floppy Disk Drive:
1. Remove the front panel bezel and the top panel from the workstation.
2. In the top, left front of the workstation above the DDS-3/floppy disk drive bay, remove
the EMI (electromagnetic interference) cover.
3. If you are installing a new floppy disk drive into the empty DDS-3 tape/floppy disk drive
bay:
a. Remove the two T-15 Torx screws securing the DDS-3 tape/floppy disk drive bracket
to the front panel of the workstation.
b. Slide the DDS-3 tape/floppy disk drive bracket out of the chassis guide rails.
c. Remove the filler panels from the DDS-3 tape/floppy disk drive bracket as shown in
Figure 4-15.

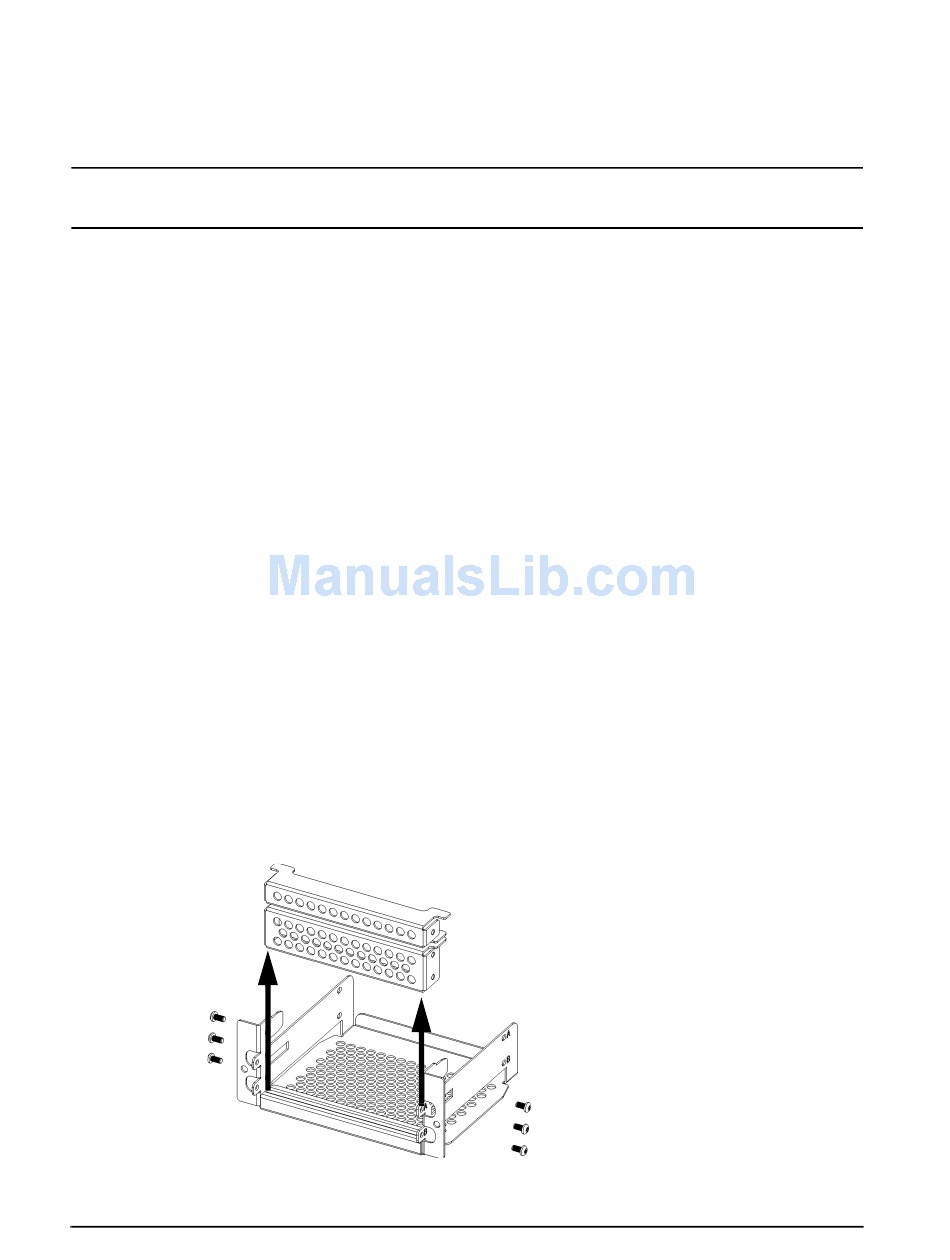

Figure 4-15. Removing the Filler Panels from the Bracket

104 Chapter 4
