4. Remove either the four bus bar thumbscrews on the J5000 workstation, or the five bus
bar thumbscrews on the J7000. Figure 4-42 shows these thumbscrews on the J5000
workstation.

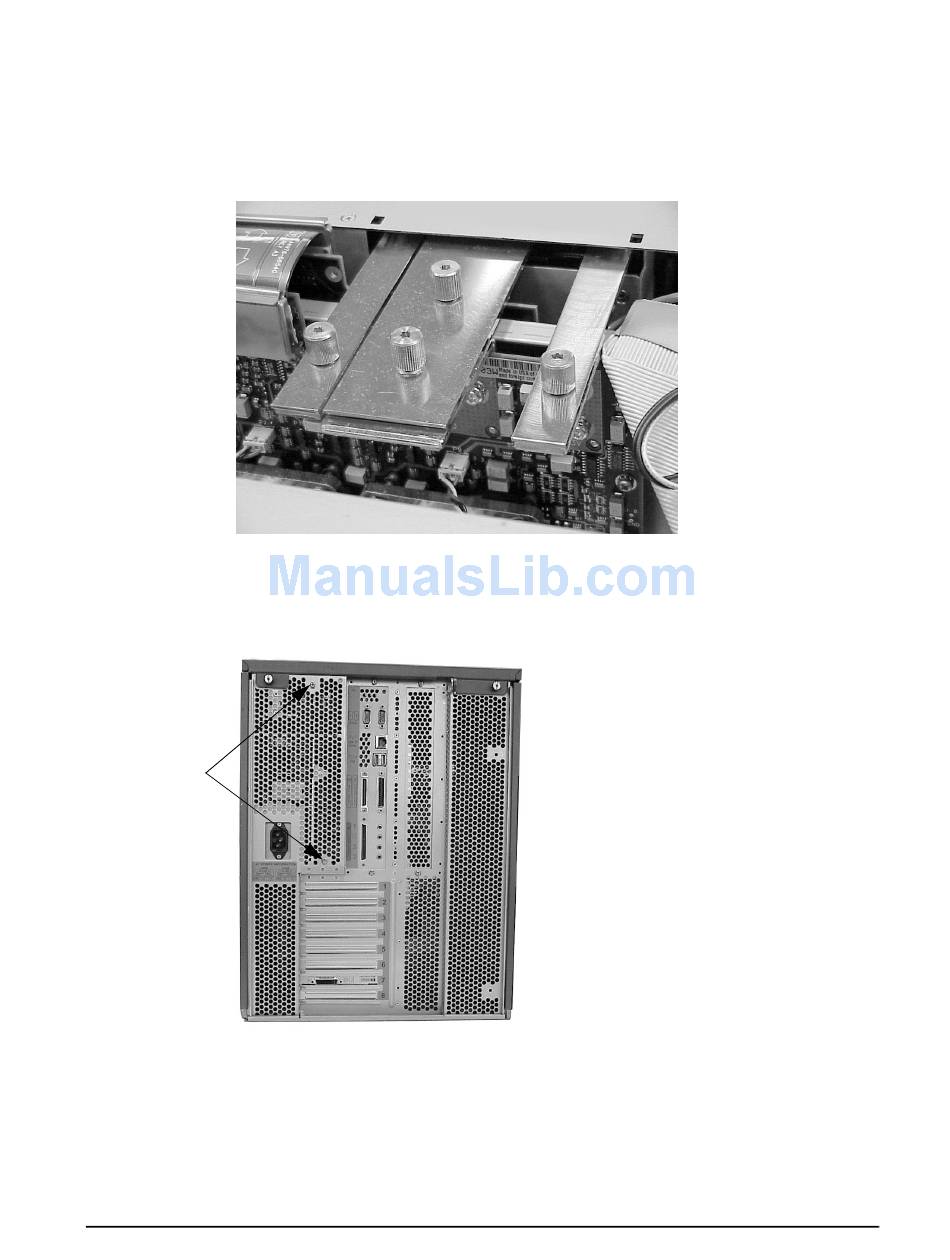

Figure 4-42. Bus Bar Thumbscrews

5. Remove the two T-15 Torx screws that secure the power supply to the rear panel of the
workstation, as shown in Figure 4-43.

Figure 4-43. Screws for the Power Supply on the Rear Panel

T-15 Torx screws
