Product Information
Rear Panel Components

Table 1-5. Audio Electrical Specifications

Frequency Response
Input Sensitivity/Impedance:
– Line in
– Microphone
Maximum Output
Level/Impedance:
– Line out
– Headphones
– Speaker (internal)
Output Impedance:
– Line out
– Headphones
Power Cord Connector
Plug the power cord into the power cord connector to provide AC power to the workstation.
The power cord provides either 15A power to the J5000, or 20A power to the J7000, at
100–120V.
The J5000 and J7000 workstations have different power cord connectors and power cords,
because of their differing power requirements. Figure 1-11 shows the two power cord
connectors.

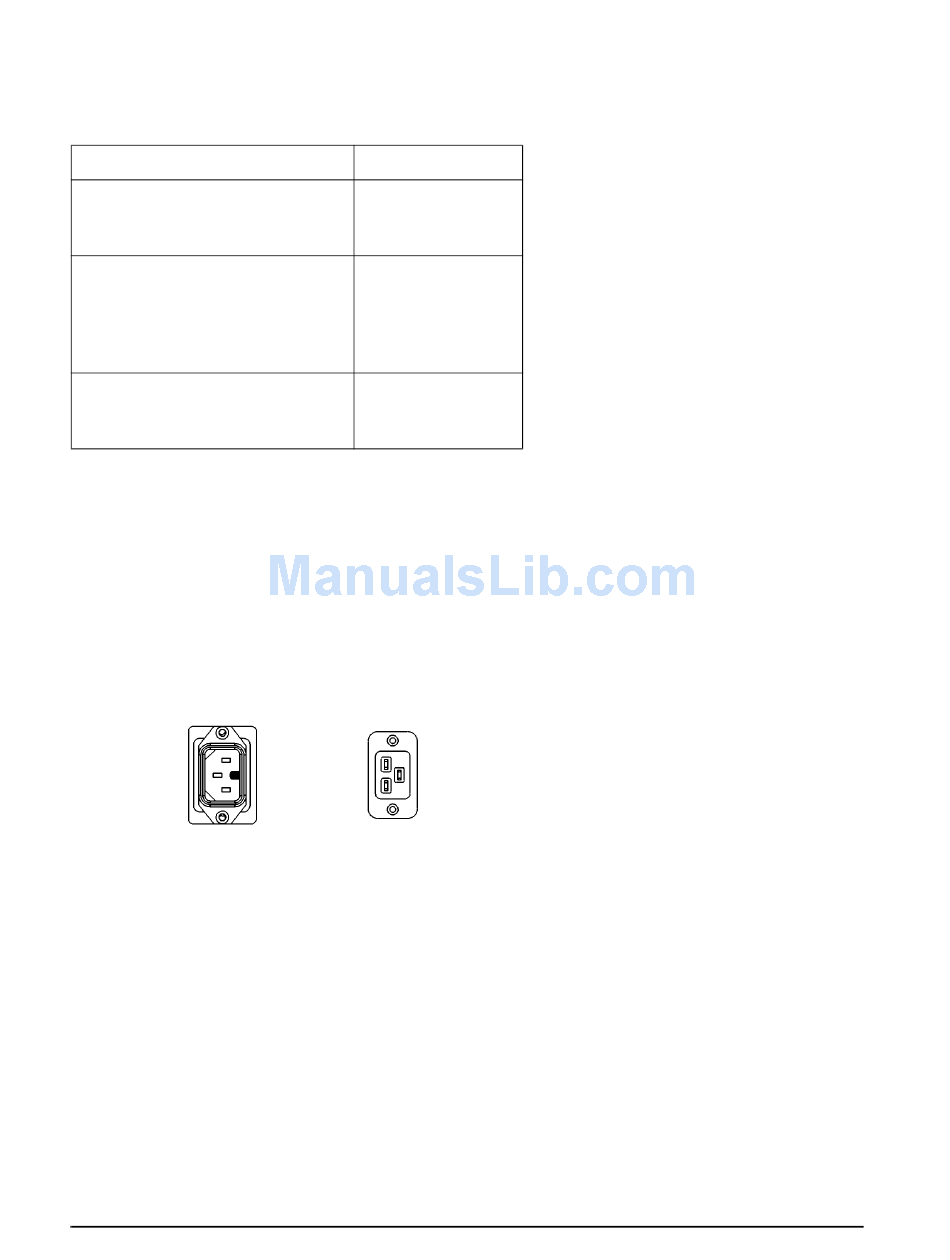

Figure 1-11. Power Cord Connectors

J5000
power connector
28
25 Hz to 20 kHz
2.0 Vpk/47 Kohm
22 mVpk/1 Kohm
2.8 Vpp/47 Kohm
2.75 Vpp/50 ohm
5.88 Vpp/48 ohm
619 ohm
118 ohm
J7000
power connector
Chapter 1
