Field Replaceable Units (FRUs)
FRU Removal and Replacement

Power Supply

This section describes how to remove and replace the power supply in the J5000 and J7000
workstations. As you face the workstation, the power supply is on the right side.
NOTE If the LCD displays an error message that relates to one of the power supply's
internal cooling fans, you will need to replace the entire power supply. Follow
the removal and replacement procedures in this section to do so.
Removing the Power Supply
To remove the power supply, do the following:
1. Remove the top panel and the right side panel of the workstation.
2. Remove the PCI retainer clip by pressing down on the thumb tab and pulling the clip
forward to rotate it out of the chassis floor hole, as shown in Figure 4-40.

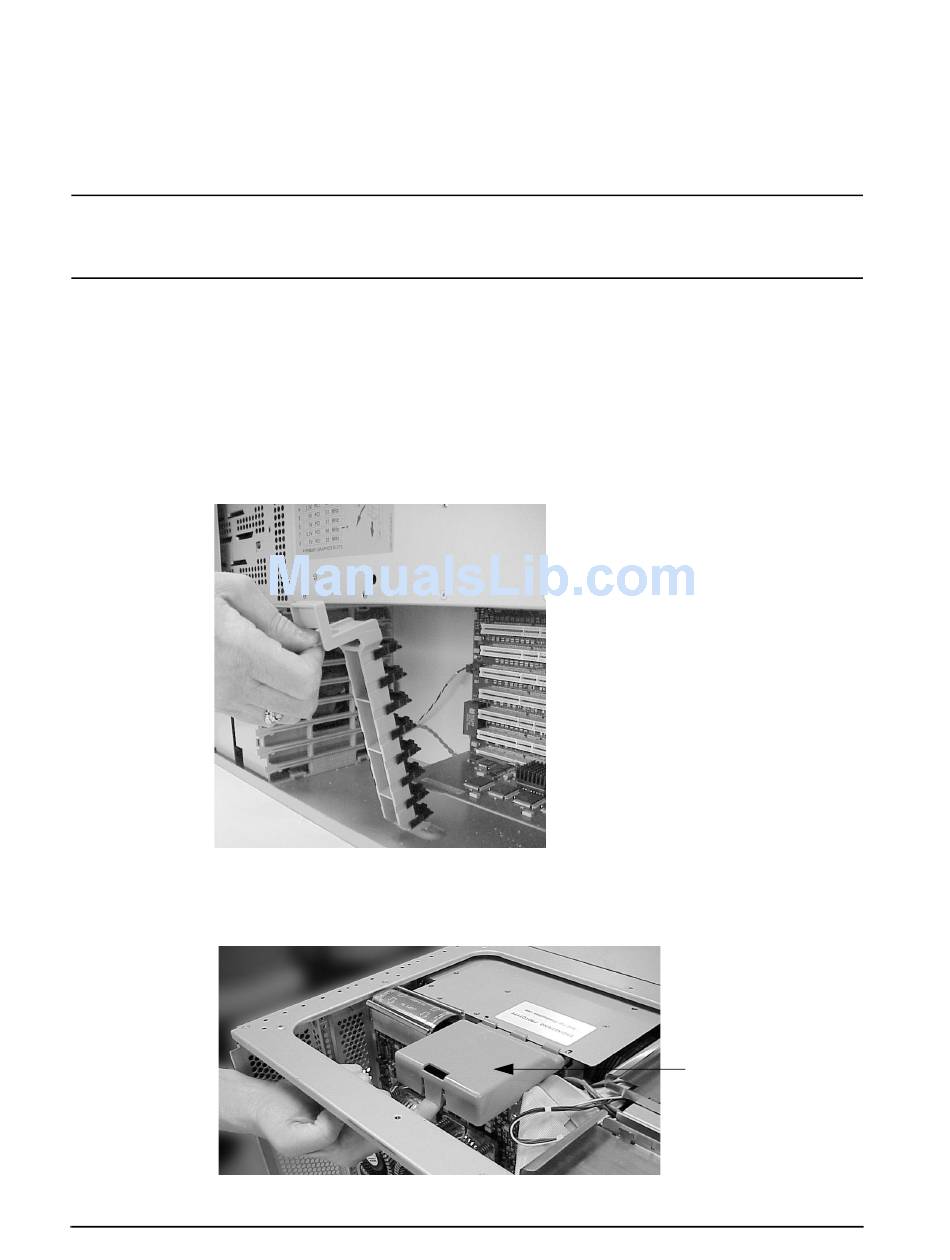

Figure 4-40. Removing the PCI Retainer Clip

3. Remove the bus bar shield at the top of the workstation, as shown in Figure 4-41.

Figure 4-41. Removing the Bus Bar Shield
