Power Switch/Lcd Assembly; Figure 4-5. Power Switch/Lcd Assembly - HP Visualize J7000 Supplementary Manual

Power Switch/LCD Assembly

This section describes how to remove and replace the J5000 and J7000 workstation's
power switch/LCD assembly, which is located on the front panel.
Removing the Power Switch/LCD Assembly
To remove the power switch/LCD assembly, do the following:
1. Remove the front bezel of the workstation.
2. Unplug the ribbon cable from the 25-pin connector.

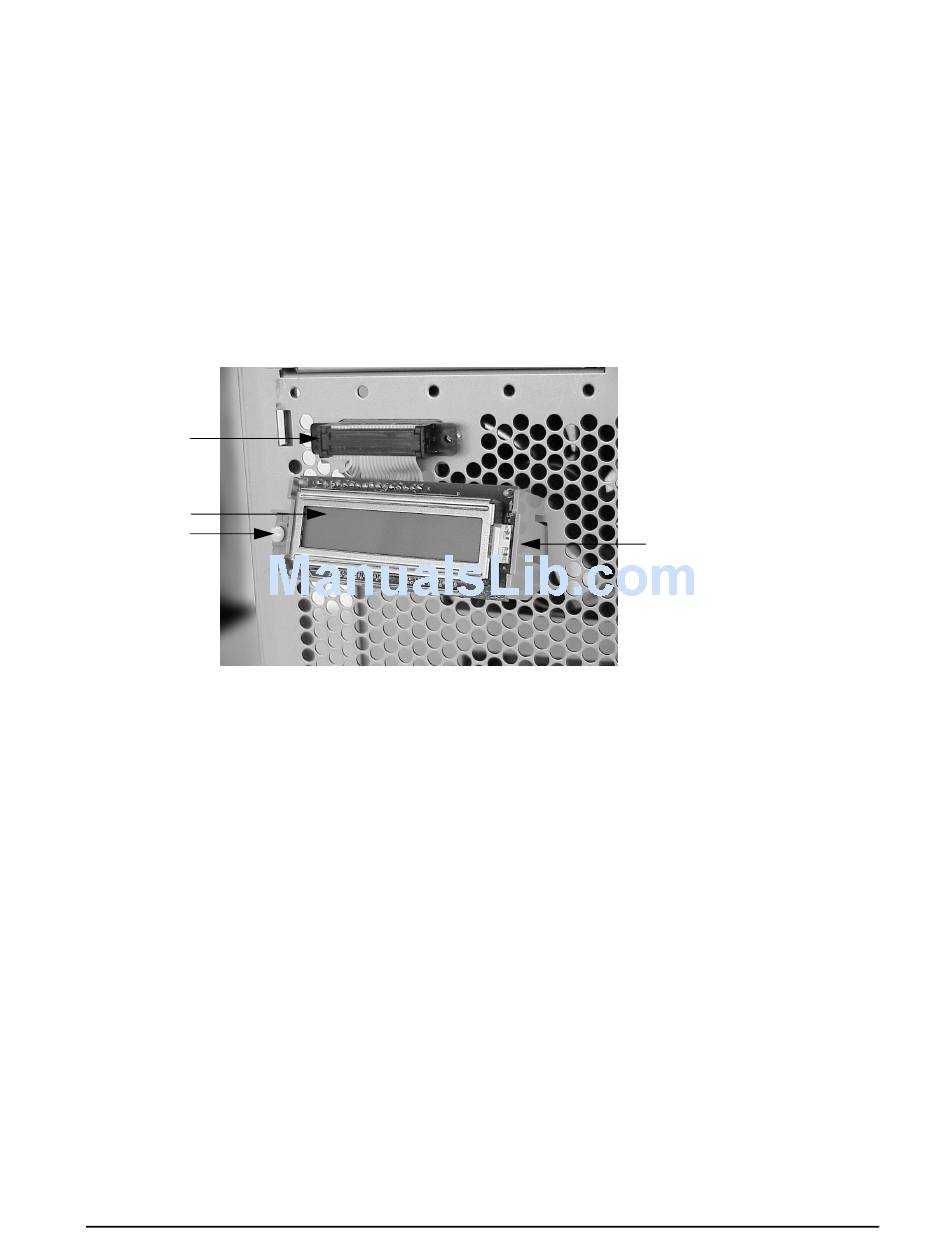

Figure 4-5. Power Switch/LCD Assembly

Ribbon cable
connector
LCD
Power switch
3. The power switch/LCD assembly has two chassis hooks on the left side and a release tab
on the right side. Squeeze the release tab and rotate the bracket outward to lift the
hooks out of the chassis slots.
Replacing the Power Switch/LCD Assembly
To replace the power switch/LCD assembly, do the following:
1. Engage the chassis hooks on the left side of the power switch/LCD assembly into the
chassis slots.
2. Squeeze the right side tab while rotating the assembly into the chassis position. When
the assembly is flush with the chassis, release the tab. The power switch/LCD assembly
will snap into place.
3. Plug the ribbon cable into the 25-pin connector.
4. Replace the front bezel of the workstation.
Chapter 4
Field Replaceable Units (FRUs)
FRU Removal and Replacement
Release tab
95
