Figure 4-27. Bus Bar Thumbscrews; Figure 4-28. Bus Bar Shield Installed - HP Visualize J7000 Supplementary Manual

9. Secure the bus bars to the system board with either the four bus bar thumbscrews on
the J5000 workstation, or the five bus bar thumbscrews on the J7000. Figure 4-27
shows these thumbscrews on the J5000 workstation.
NOTE Failure to sufficiently tighten the bus bar thumbscrews will cause the power
supply to not activate.

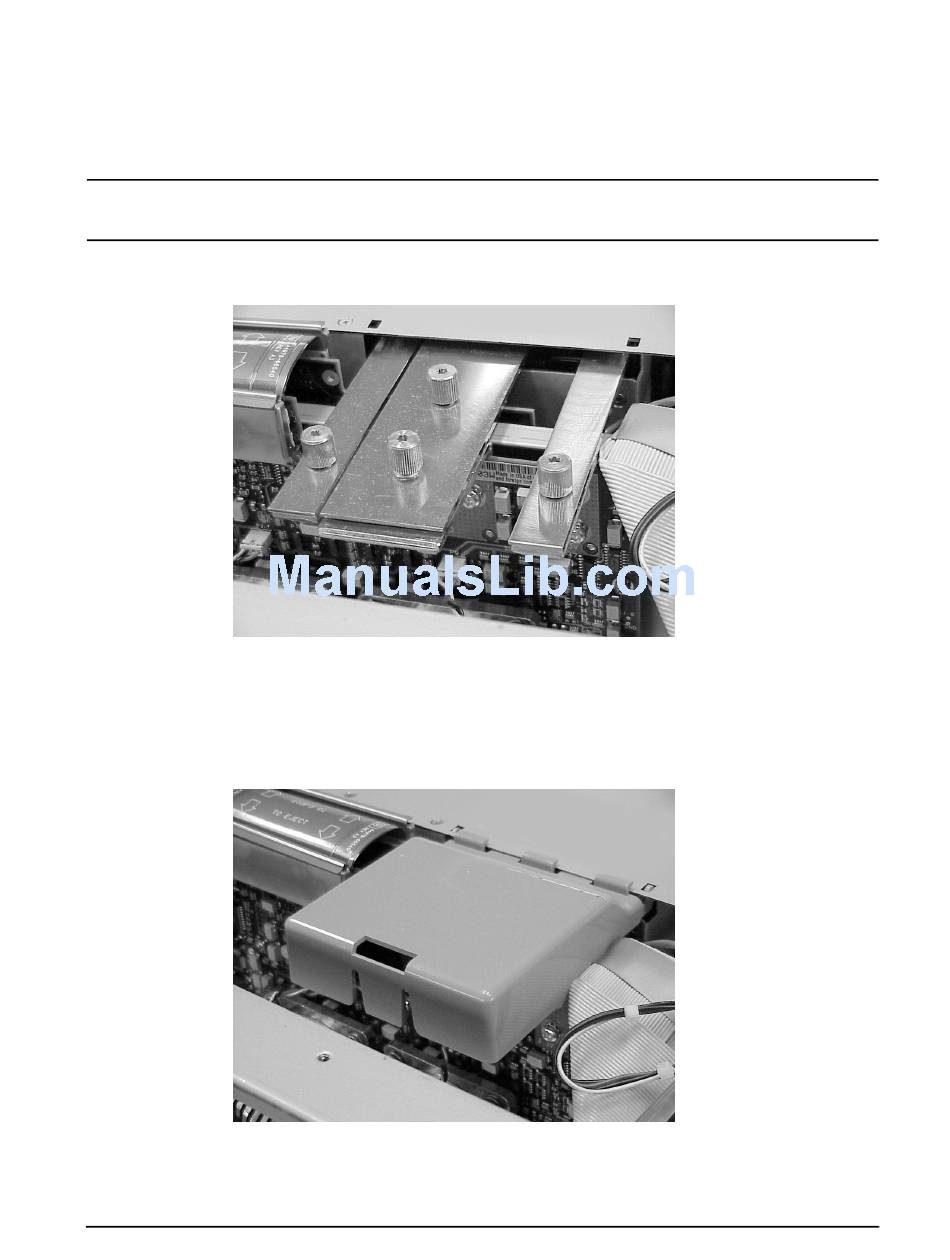

Figure 4-27. Bus Bar Thumbscrews

10.Replace the bus bar shield by aligning the edge with the power supply edge while
inserting the hooks into the slots. Rock the bus bar shield into place by pressing down
towards the chassis floor. Figure 4-28 shows the bus bar shield correctly installed.

Figure 4-28. Bus Bar Shield Installed
