Field Replaceable Units (FRUs)
FRU Removal and Replacement
9. Simultaneously push both tabs outward with your thumbs while using your index
fingers to lift the fan out of the mounting bracket, as shown in Figure 4-57.

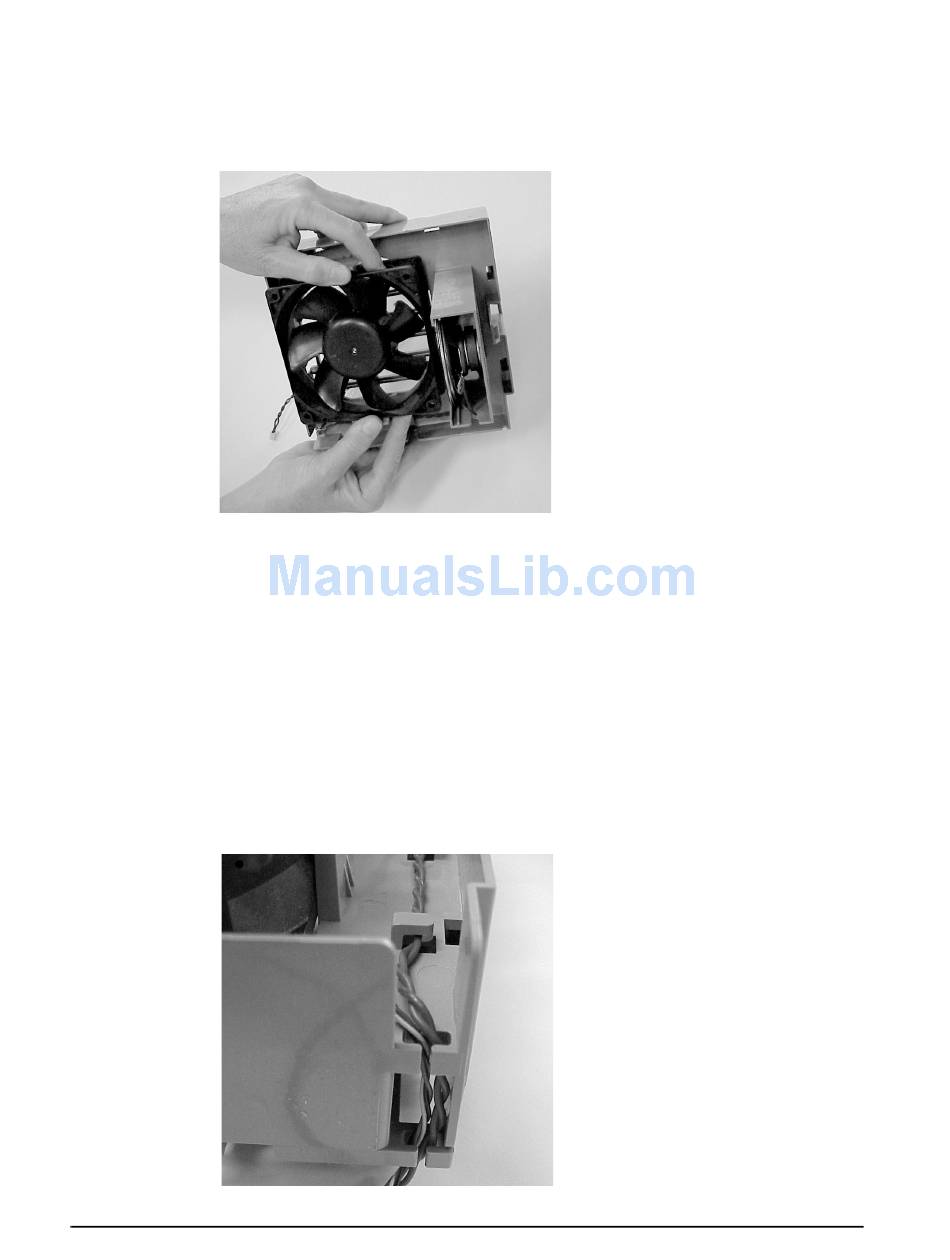

Figure 4-57. Removing the Fan from the Mounting Bracket

10.Carefully guide the fan cable out of the bracket. The fan cable should not be threaded
through the card guides.
Replacing the I/O Cooling Fan
To replace the I/O cooling fan, do the following:
1. Reinsert the fan in the fan/speaker mounting bracket.
2. Position the fan so that the flow arrow points towards the I/O card guide rails.
3. To avoid interference with the I/O card guide rails, you must thread the fan cable
through the plastic slot adjacent to the release tab for the fan/speaker mounting
bracket, as shown in Figure 4-58.

Figure 4-58. Threading the Fan Cable through the Plastic Slot

140 Chapter 4
