Product Information
Front Panel Components
DDS-3 Tape Drive (Optional)
The J5000 and J7000 workstations support either one DDS-3 tape drive or one 3.5-inch
floppy disk drive as an optional component. (Since the DDS-3 tape drive and the floppy
disk drive use the same device bay, only one or the other can be installed.) The bay for the
DDS-3 tape drive or floppy disk drive is located on the top, left-hand side of the front panel.
The optional DDS-3 tape drive (Product Number A5011A) is a 3.5-inch, half-height form
factor device with an NSE (Narrow Single-Ended) SCSI-2 interface. It connects to the
workstation via a 50-pin NSE SCSI-2 ribbon cable and a 4-pin power cable. It has 12 GB
native capacity, or approximately 24 GB with data compression. It conforms to the DDS
format standard for storing computer data, and is a high-capacity, high transfer-rate
device for data storage on tape cartridge.
Figure 1-6 shows the operating features of the DDS-3 tape drive.

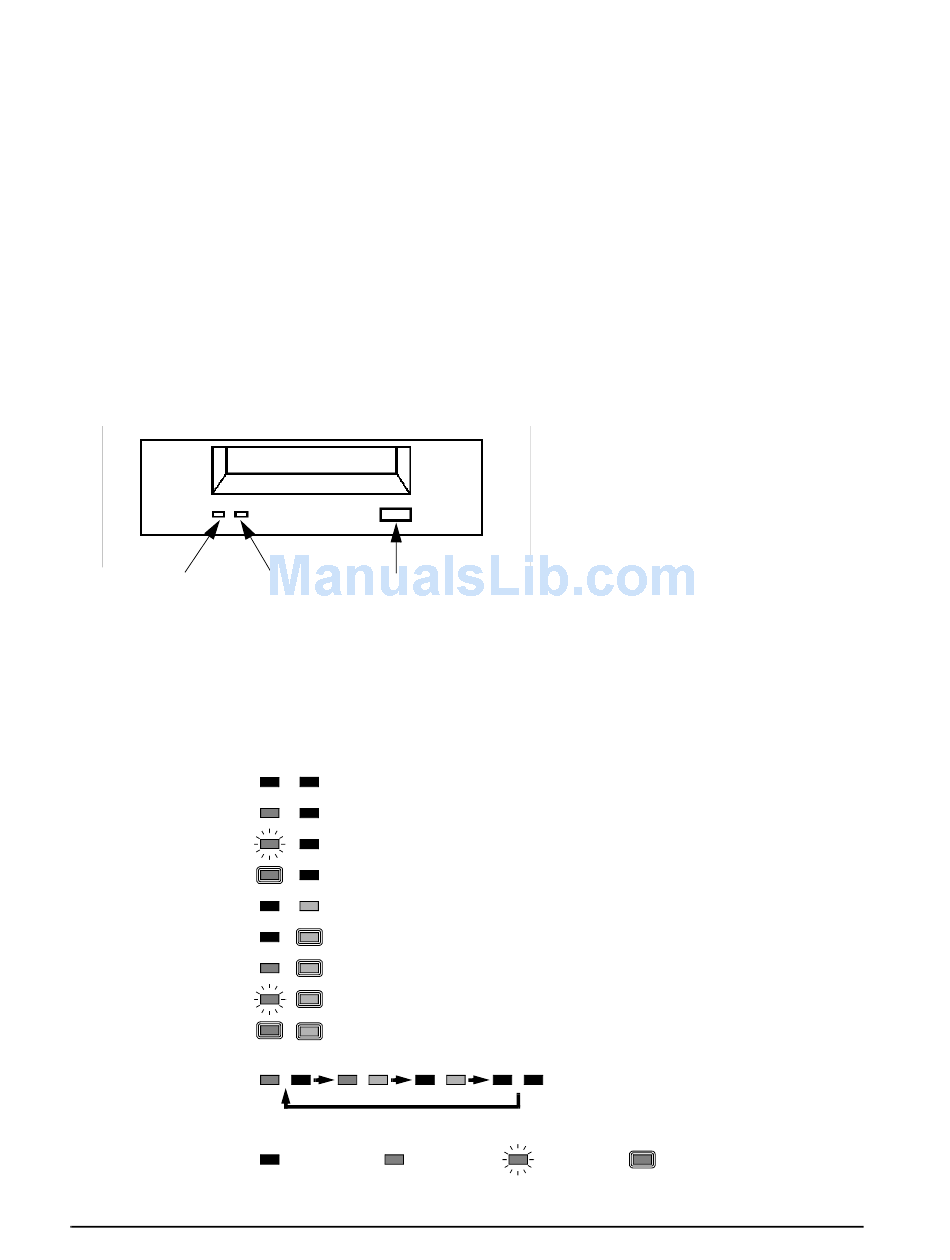

Figure 1-6. DDS-3 Tape Drive Features

Left (green)
LED
The two colored LEDs on the DDS-3 tape drive indicate different activities or problems
that may occur. Figure 1-7 lists the LED codes and their meanings.

Figure 1-7. DDS-3 Tape Drive LED Display Codes

22
Right (amber) Eject Button
LED
Left Right
(green) (amber)
LED LED
No power
Cartridge loaded; no activity
Cartridge loaded; activity
Loading/unloading/ejecting/power-on
Self-test failed
No cartridge; caution (cleaning required)
Cartridge loaded; caution (cleaning required)
Cartidge loaded; drive active; caution (cleaning required)
Cartridge loading/unloading; caution (cleaning required)
Legend:
On
Off
CD Mode "warbling"
Flashing (2Hz)
Flashing (4Hz)
Chapter 1
