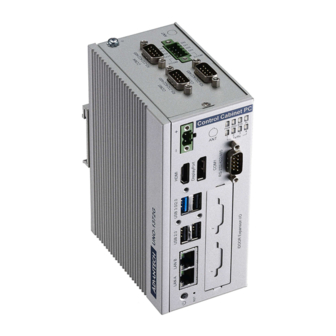

- Page 1 User Manual UNO-1372G/1372GH 電腦 Embedded Automation ® Computer with Intel Atom Quad-Core Processor, 3x GbE, 2x mPCIe, 1 mSATA, 2x COM, 8x DIO, 3x USB, HDMI/VGA...
- Page 2 限用物質含有情況標示聲明書 UNO-1372G 系列 設備名稱： 型號 （型式） ： 電腦 Equipment name Type designation (Type) ( 系列型號參見說明書 ) 限用物質及其化學符號 Restricted substances and its chemical symbols 六價鉻 多溴聯苯 多溴二苯醚 單元 Unit 汞 鎘 Hexavalent Polybrominated Polybrominated 鉛 Lead Mercury Cadmium chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd)
- Page 3 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 4 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
- Page 5 This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.
- Page 6 Safety Instructions Read these safety instructions carefully. Keep this User Manual for later reference. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. For plug-in equipment, the power outlet socket must be located near the equip- ment and must be easily accessible.
- Page 7 For UNO-1372GH, do not substitute any components which may impair suitabil- ity for Class I, Division 2. DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
- Page 8 Consignes de sécurité Lire attentivement les instructions de sécurité. Conserver ce manuel pour utilisation ultérieure, Débranchez cet équipement de toute prise secteur avant de le nettoyer. Utilisez seulement un chiffon humide. N'utilisez pas de détergent liquide ou pulvérisé pour le nettoyage. Gardez cet équipement à...
-
Page 9: Table Of Contents
Contents Chapter Overview ..........1 Introduction ....................2 Safety Precautions..................2 Accessories....................3 Chapter Hardware Functionality ...... 5 Introduction ....................6 Figure 2.1 Front of UNO-1372G/ 1372GH........6 Figure 2.2 Top of UNO-1372G/ 1372GH........7 2.1.1 System Hardware ................. 7 Serial Interface (COM1~COM2) ............... - Page 10 Figure A.1 Connector and Jumper Locations (Front)....25 Table A.2: Connectors and Jumpers ......... 25 RS-232 Standard Serial Port (COM1)............. 27 Table A.3: RS-232 Serial Port Pin Assignments......27 RS-422/485 Serial Port (COM2) ............. 27 Table A.4: RS-422/485 Serial Port Pin Assignments....27 Power Connector (PWR) ................
-
Page 11: Chapter 1 Overview
Chapter Overview This chapter provides an overview of the products specifications. Sections include: Introduction Safety Precautions Accessories... -
Page 12: Introduction
Introduction The UNO-1372G is an embedded Application Ready Platform (ARP) that can shorten development time and offers multiple networking interfaces to fulfill the extensive needs of different projects. The UNO-1372G includes Intel's latest Intel Atom technology and provides multiple interfaces, including up to two serial ports, three GbE LAN and three USB ports. The UNO-1372G supports two display types, HDMI and VGA, for various high resolu- tion requirements. -
Page 13: Accessories
Caution! Toujours à la terre pour éliminer toute charge d'électricité statique avant toucher UNO-1372G. Appareils électroniques modernes sont très sensi- bles à charges d'électricité statique. Utilisez un bracelet antistatique à tout moment. Placez tous composants électroniques sur une surface antistatique ou dans un statique-sac blindé. Accessories Please refer below for the accessory list: ... - Page 14 UNO-1372G User Manual...
-
Page 15: Chapter 2 Hardware Functionality
Chapter Hardware Functionality This chapter explains how to setup the product’s hardware functions, including connecting peripherals, setting switches and indicators. Sections include: Introduction Serial Interface LAN / Ethernet Connector Power Connector USB Connector Display Connector ... -
Page 16: Introduction
Introduction The following figures show the connectors on the product. The following sections give you information about each peripheral. Figure 2.1 Front of UNO-1372G/ 1372GH UNO-1372G User Manual... -
Page 17: System Hardware
Figure 2.2 Top of UNO-1372G/ 1372GH 2.1.1 System Hardware CPU: Intel Atom E3845 1.91GHz, 2MB L2 Cache Memory: – 4G DDR3L SDRAM built-in, – Transcend/AQD-SD3L4GN16-SG 4GB Storage: One drive bay for SATA 2.5" HDD (Compatible with 9.5mm high HDDs) ... -
Page 18: Serial Interface (Com1~Com2)
Serial Interface (COM1~COM2) The UNO-1372G offers one standard RS-232 and one RS-422/485 (with cable) serial communication inter-face port: COM1 ~ COM2. The IRQ and I/O address ranges are listed below: COM1: 3F8h, IRQ4 COM2: 2F8h, IRQ3 2.2.1 RS-232 Interface (COM 1) The UNO-1372G offers one RS-232 serial communication interface port: COM1. -
Page 19: Rtc Battery
RTC Battery The RTC Battery ensures the BIOS settings and system clock can be maintained, even when power is disconnected for a short time. Type: BR2032 (Using CR2032 is NOT recommended) Output Voltage: 3 V Location: Top side removable cover named RTC BTR ... -
Page 20: Pci Express Mini Card Socket
2.10 PCI Express Mini Card Socket There are three sockets for full size PCI Express mini cards. The first interface (CN16) on the bottom board is for mSATA and the second (CN8) interface is mainly targeted to support iDoor technology/module for diversified applications such as iso- lated COM port, Profibus, WLAN GPRS, 3G, and MRAM. -
Page 21: Dual Power Input
2.13 Dual Power Input In the power connector, there is a secondary power input that helps users plug in a second power source to prevent main power source failure. 2.14 Audio Jack This product provides one Line-out port for local alarm functions. 2.15 LED Indicators There are eight LEDs to indicate the status of the system power: power input 1,... - Page 22 Opto-Isolator Response 50 μs Figure 2.4 Wet Contact Wiring Figure 2.5 Dry Contact Wiring UNO-1372G User Manual...
-
Page 23: Chapter 3 Initial Setup
Chapter Initial Setup This chapter explains how to ini- tialize the UNO-1372G. Sections include: Chassis Grounding Inserting an mSATA Installing a Wireless LAN card and Antenna Installing a Hard Disk Connecting Power BIOS Setup ... -
Page 24: Chassis Grounding
Chassis Grounding The UNO-1372G provides good EMI protection and a stable grounding base. There is an easy-to-connect chassis grounding point to use. Figure 3.1 Chassis Grounding Connection Please note that the system ground and chassis ground are separated. Inserting an mSATA Remove the power cord. -
Page 25: Installing A Wireless Lan Card And Antenna (Optional)
Installing a Wireless LAN Card and Antenna (Optional) Contact Advantech to prepare the following optional kit: Rear Panel for Antenna The internal cable: 1750006043 (15cm). Wireless Module (PCI Express Mini Card) One of the suggested modules is EWM-W151H01E, which is a verified Wireless IEEE 802.11b/g/n module. - Page 26 Antenna Select the necessary specification according to your application. One of the suggested antennas is 1750002842. Follow the steps below for installation: Unscrew the left cover and open it. Remove the hole(s) on the top panel for antenna installation. Install the internal cable 1750006043 (15cm) on the top panel.
-
Page 27: Installing A Hard Disk
Installing a Hard Disk The procedure for installing a hard disk into the UNO-1372G is described below. Fol- low these steps carefully. Note the system is not compatible with +12V HDD. Use an HDD with lower power input. Remove the power cord. Unscrew the four screws from the left cover. -
Page 28: Bios Setup
Screw the left cover with four screws. BIOS Setup Press “F2” in the boot-up screen to enter the BIOS setup utility. Follow the instruc- tions on the screen to perform the necessary settings. Note! You can try to “Restore Defaults” from the BIOS Setup manual if the UNO-1372G does not work properly. -
Page 29: Din Rail Kit Assembly
Din Rail Kit Assembly The UNO-1372G supports din-rail and wall mounting. The assembly instructions are below. b. Horizontal Din-Rail a. Vertical Din-Rail c. Wall Mount (Left Side) d. Wall Mount (Back Side) UNO-1372G User Manual... -
Page 30: Connecting Power
This product is intended to be supplied with a Listed DC Power Source, rated 9- 36Vdc (For UNO-1372GH is 10~36 Vdc), 4A minimum and Tma 60 degree C. If fur- ther assistance is required, please contact Advantech customer support for additional information. -
Page 31: Assembly With Uno System
3.8.4 Assembly with UNO System Follow the 4 STEPs to fix the I/O cable with lockable kit: Find the lockable hole on UNO System near the I/ STEP 1. O.(UNO-1372GH have 3 holes on front panel, 1 on top cover) STEP 2. - Page 32 UNO-1372G User Manual...
-
Page 33: Appendix A System Settings & Pin Assignment
Appendix System Settings & Pin Assignment... -
Page 34: System I/O Address And Interrupt Assignments
System I/O Address and Interrupt Assignments Table A.1: Interrupt Assignments Interrupt No. Interrupt Source Parity Error Detected IRQ 0 Interval timer IRQ 1 Keyboard IRQ 2 Interrupt from controller 2 (cascade) IRQ 3 COM 2 IRQ 4 COM 1 IRQ 8 Real-time clock IRQ 9 Microsoft ACPI-Compliant System... -
Page 35: Board Connectors And Jumpers
Board Connectors and Jumpers There are several connectors and jumpers on the inside board. The following sec- tions tell you how to configure the hardware setting. Figure A.1 shows the locations of the connectors and jumpers. Figure A.1 Connector and Jumper Locations (Front) Table A.2: Connectors and Jumpers Label Function... - Page 36 SW7: Digital Input Input Channels: 3 – Input Voltage (Wet Contact) Logic 0: 0~3 VDC (switch to 1 and 3) Logic 1: 10 ~ 30 VDC – Input Voltage (Dry Contact) Logic 0: Open (switch to 2 and 4) Logic 1: Shorted to GND –...
-
Page 37: Rs-232 Standard Serial Port (Com1)
RS-232 Standard Serial Port (COM1) Table A.3: RS-232 Serial Port Pin Assignments Pin Name RS-422/485 Serial Port (COM2) Table A.4: RS-422/485 Serial Port Pin Assignments RS-422 RS-485 Data- Data+ UNO-1372G User Manual... -
Page 38: Power Connector (Pwr)
Power Connector (PWR) Table A.5: Power Connector Pin Assignments Signal Name 1 V1+ 9~36 V Input 1 (For UNO-1372GH is 10~36 V 2 V2+ 9~36 V Input 2 (For UNO-1372GH is 10~36 V 3 V- Power Ground 4 GND Chassis Ground USB Connector Table A.6: USB 2.0 Connector Pin Assignments Signal Name... -
Page 39: Hdmi Display Connector
HDMI Display Connector Table A.7: HDMI Adaptor Cable Pin Assignments Signal Name TMDS Data2+ TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0- TMDS Clock+ TMDS Clock Shield TMDS Clock- Reserved DDC/CEC/HEC Ground +5 V Power (max 50 mA) - Page 40 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2020...
