Configuring LACP

LAG ports can contain different media types if the ports are operating at the same speed. Aggregated links can be
set up manually or automatically established by enabling LACP on the relevant links. Aggregate ports can be
linked into link-aggregation port-groups. The LACP Parameters Page contains fields for configuring LACP LAGs.
To configure LACP for LAGs:
1. Click Advanced Setup > Interface > LACP Parameters. The LACP Parameters Page opens:

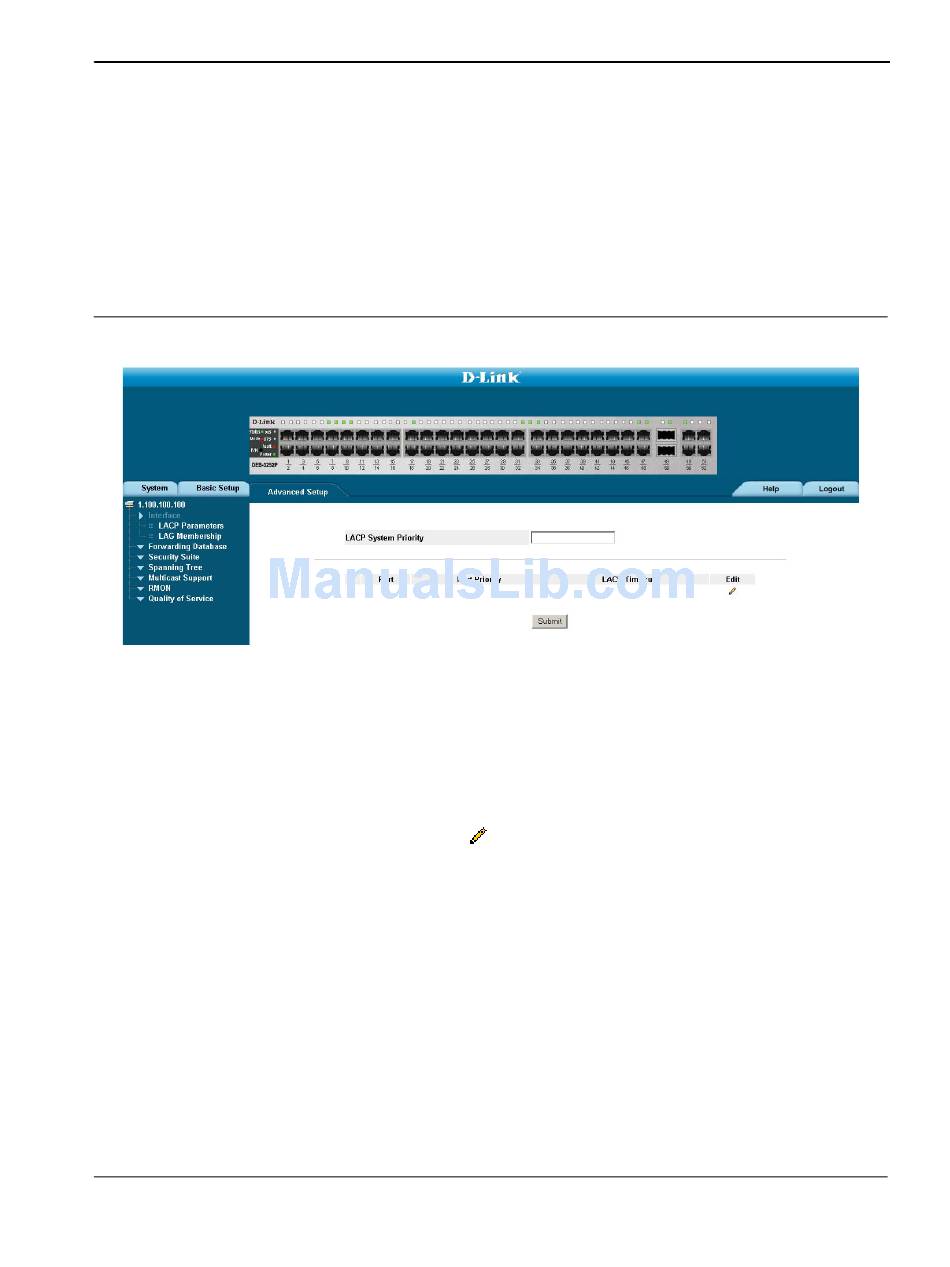

Figure 35: LACP Parameters Page
The LACP Parameters Page contains the following fields:
•
LACP System Priority — Specifies system priority value. The field range is 1-65535. The field default is 1.
•
Port — Displays the port number to which timeout and priority values are assigned.
•
Port-Priority — Displays the LACP priority value for the port. The field range is 1-65535.
•
LACP Timeout — Displays the administrative LACP timeout. The possible field values are:
–
Long — Specifies the long timeout value.
2. Short — Specifies the short timeout value.Click . The LACP Parameters Settings Page opens:
