System LEDs
The DES-3252P system LEDs are located on the front panel's left side. The following figure illustrates the DES-
3252P system LEDs.

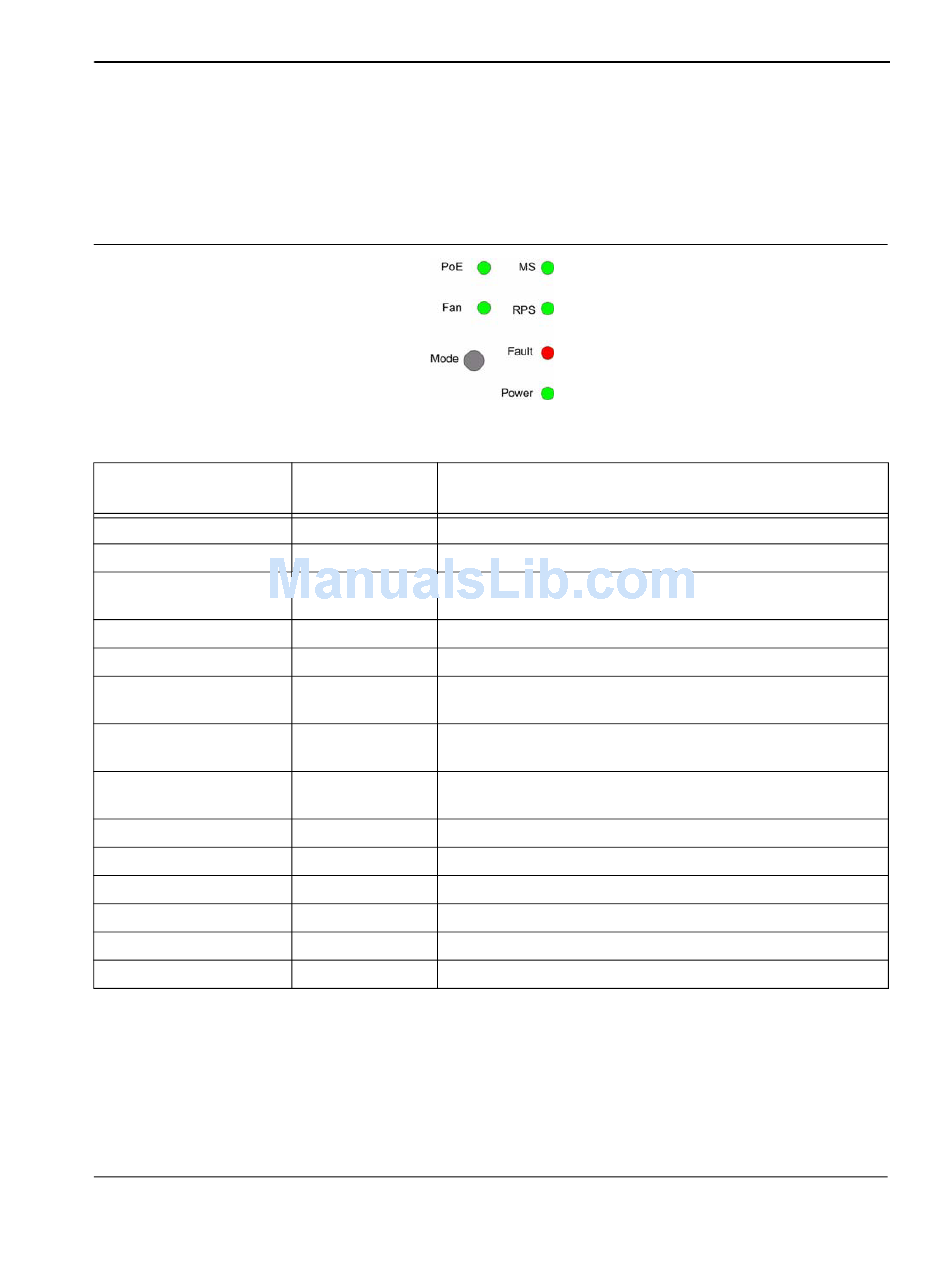

Figure 5: DES-3252P System LEDs
The LED indications are described in the following table:
Table 5: System LEDs
LED Des cription
MS (Stack support).
PoE
RPS
FAN
Power
Fault

Cable, Port, and Pinout Information

This section describes the devices physical interfaces and provides information about cable connections. Stations
are connected to the device ports through the physical interface ports on the front panel. For each station, the
appropriate mode (Half/Full Duplex, Auto Negotiation) is set. The default is Auto Negotiation.
LED Des cription
In di ca ti o n
Red Indicates a master device (future release).
Green Indicates a slave device (future release).
Indicates the device is not a stack member, and is currently is
Off
stand-alone mode.
Green Indicates a PoE mode.
Off Indicates an Ethernet mode.
Indicates that the device is being powered from a Redundant
Red
Power Supply.
Indicates that a Redundant Power Supply is connected to the
Green
device.
Indicates that a Redundant Power Supply is not connected to
Off
the device.
Red Indicates that there is a faulty fan.
Green Indicates that all fans are functioning correctly.
Green Indicates that the device is powered up.
Off Indicates that the device is off.
Flashing Red Indicates that the device is currently running POST.
Red Indicates that the device detected a POST running error.
Page 13
Device Description
Cable, Port, and Pinout Information
