Defining MAC Based Access Control Lists

The
MAC Based ACL Page allows a MAC- based ACL to be defined. ACEs can be added only if the ACL is not
bound to an interface. To define MAC Based ACLs:
1. Click Security > Network Security > Access Control > MAC Based ACL. The MAC Based ACL PageD
opens.

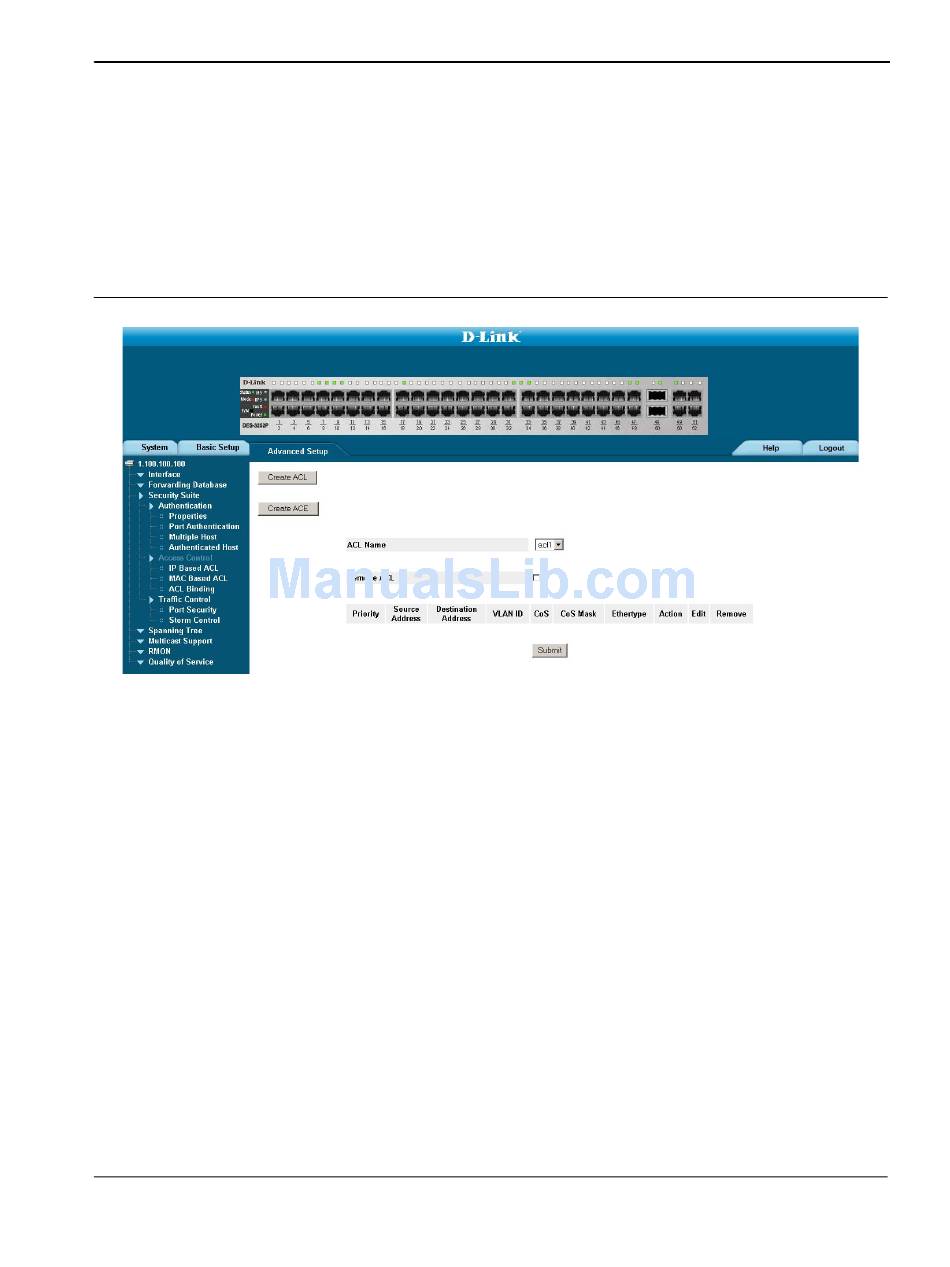

Figure 89: MAC Based ACL Page
The MAC Based ACL Page contains the following fields:
•
ACL Name — Displays the user-defined MAC based ACLs.
•
Remove ACL — Removes the IP based ACLs. The possible field values are:
–
Checked — Removes the selected MAC based ACL.
–
Unchecked — Maintains the MAC based ACLs.
•
Priority — Indicates the ACE priority, which determines which ACE is matched to a packet on a first-match
basis. The possible field values are 1-2147483647.
•
Source MAC Address — Matches the source MAC address to which packets are addressed to the ACE.
•
Destination MAC Address — Matches the destination MAC address to which packets are addressed to the
ACE.
•
VLAN ID (1-4063,4095) — Matches the packet's VLAN ID to the ACE. The possible field values are 1 to
4095.
•
CoS — Filters the packet according to the Class of Service tag.
•
CoS Mask — Filters the packet according to the CoS wildcard.
•
Ethertype — Matches the ACL according to the Ethernet packet type.
•
Action — Indicates the ACL forwarding action. Possible field values are:
–
Permit — Forwards packets which meet the ACL criteria.
–
Deny — Drops packets which meet the ACL criteria.
